Part No. : HC-6235-1250FG0W02

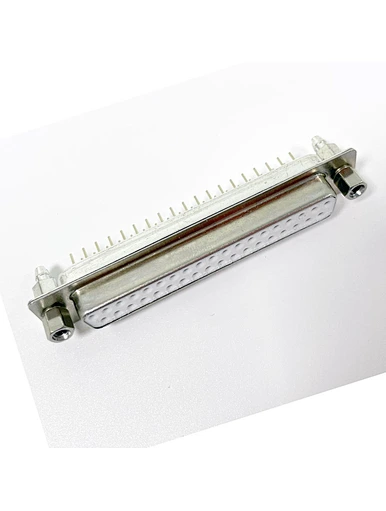

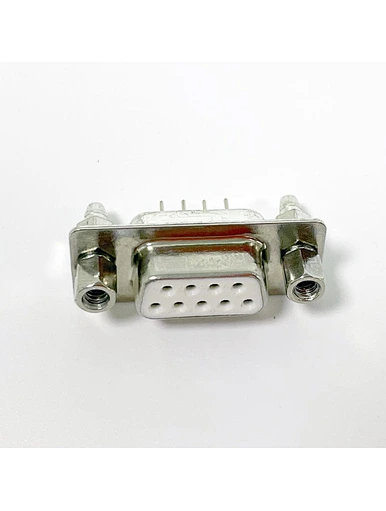

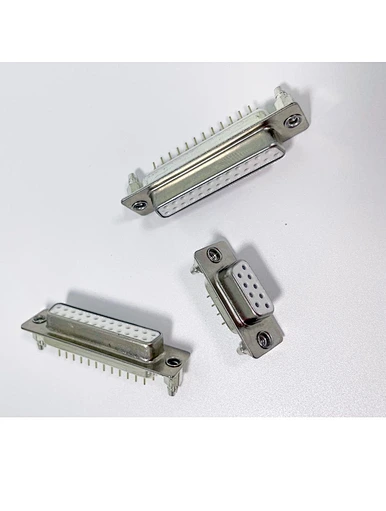

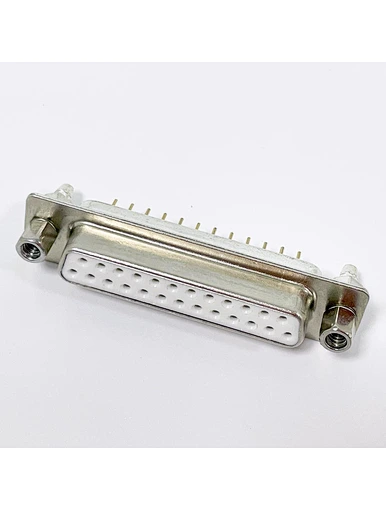

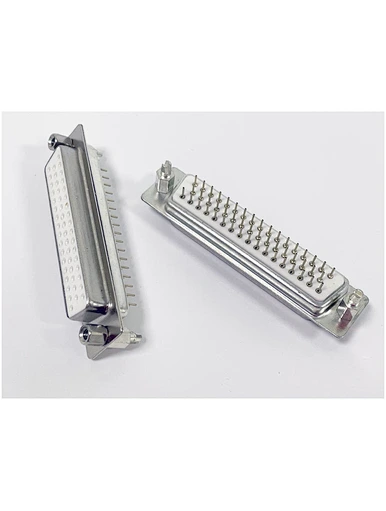

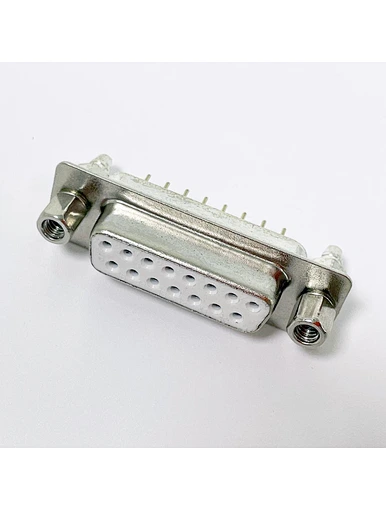

Product name: D-sub Female Lock with UNC4-40 Thread
Position: 09P 15P 25P 37P 50P
SPECIFICATIONS:
Rated current: 3.0 AMPS
RATED VOLTAGE: 250V
Contact Resistance: 25mΩ max
SIeeve: PBT
Contact Material: Brass
Operating temperature: -55°C to 85°C
Contact Plating: Gold Flash
Insulation resistance: 5000MEGAOHMS MIN.
Free Samples :5-10pcs with 1 week
Packing: Tray
Delivery time: 20~25 Day
ROHS Compliant

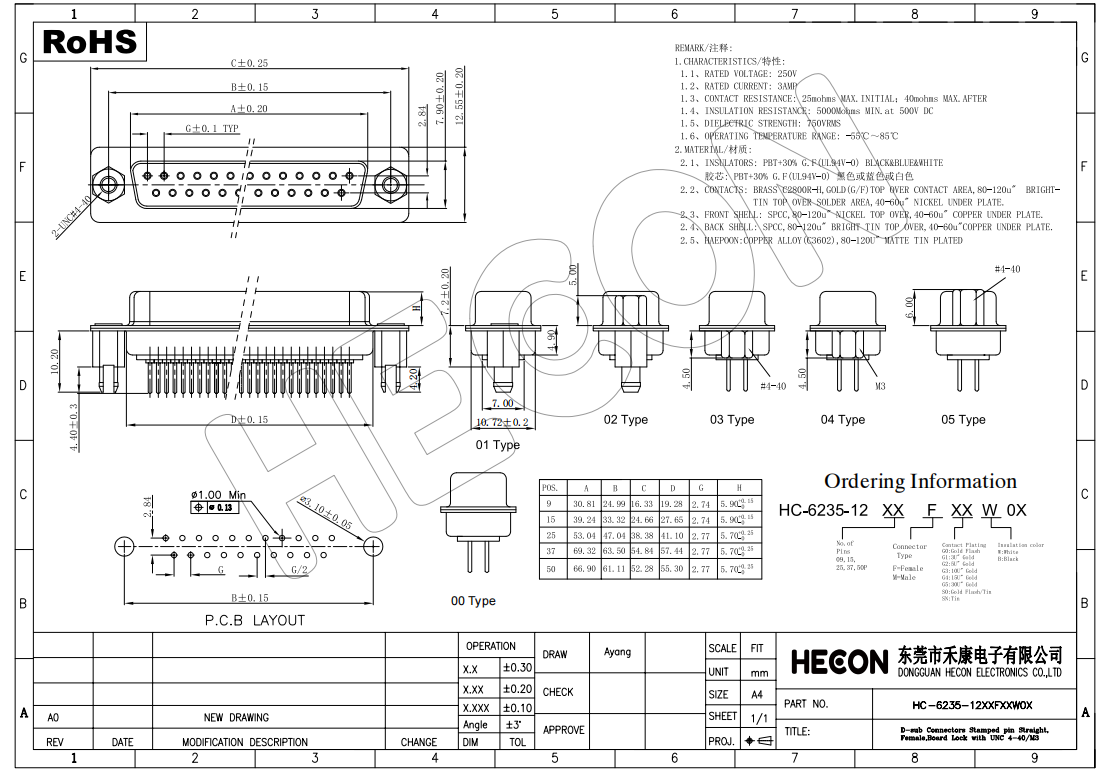

Drawings Details：
We DONGGUAN HECON ELECTRONICS CO.,LTD has full complete standard connectors and special customized products service such as D-sub Connector, USB Type- C, Pogo pin and Pogo pin connectors also wire harness cable assemblies series so we thoroughly implement the products one-stop shopping, high quality, high value, time saving.
