Series No.:HC-ICF410-30-XXXSSNA178T01

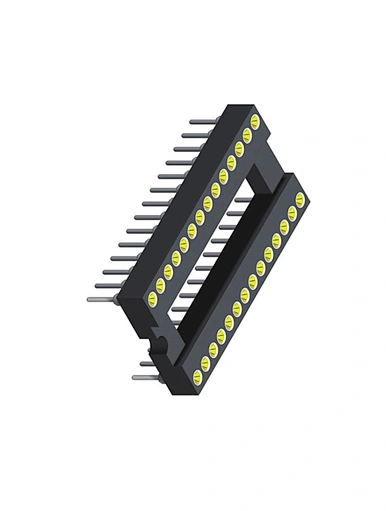

Description: 2.54mm IC Socket H3.0 Straight Female Type L=17.8 Tube Packing

Position:  06P TO 64P

Type: Straight

Package : Tube Packing

MOQ: 1K

Free samples:10pcs within 1 weeks.

Specifications

Contact Material   ：Brass (H59-S)

Contact Plating   ： Gold Flash

Insulator Material  ： PPS/BT (UL94V-0)

Rated   Current  ： 2.0 AMPS

Contact Resistance ：20mΩ   Max

Insulation Resistance ：1000mΩ   Min

Operating Voltage ： 60  AC/DC

Operation Temperature：﹣40℃ to +105℃

Soldering Temperature：260℃, 10s max

Customized solution manufacturer of wire harness cable &PCB Connectors

Meet One -Stop -Sourcing and save your time and Cost

Engineers with over 20 year’s experience | 10 days delivery time | OEM/ODM

Operating under ISO 9001:2000 Standards
