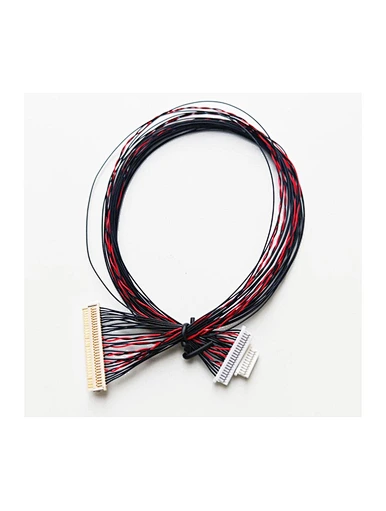

Customized 1.0mm 30P LVDS Wire Harness Cable & Custom Length UL10064 30AWG Cable
HC-WH1030SNX33001
EXW,FOB
500 pieces
300000pieces / Month
China
10-20Day
Custom solution manufacturer of wire harness cable &PCB Connectors
Meet One -Stop -Sourcing and save your time and Cost
LOW MOQ | 10 days delivery time | OEM/ODM service
Operating under ISO 9001:2000 Standards
Meet One -Stop -Sourcing and save your time and Cost
LOW MOQ | 10 days delivery time | OEM/ODM service
Operating under ISO 9001:2000 Standards
Quantity
Series No. | HC-WH1030SNX33001 |
Product name: | Customized 1.0mm 30P LVDS Wire Harness Cable & Custom Length UL10064 30AWG Cable |
Position: | 02P To 30P |
Connector: | Alternative or original brand name / Per your request |
Wire Spec: | UL Cores Wire、Multi-Conductor Shielded wire、 Flat Ribbon Wire. |
UL1007 UL1571 UL1061 UL1015/ 26AWG/28AGW/30AWG/32AWG | |
Color: | Customized |
Length: | Customized Per your request |
Outer Insulation: | PVC、 Rubber、 Silicone、 PE、Teflon. |
Package: | PE Bag |
OEM&ODM Service: | Yes |
Samples: | Support samples to testing then mass production |
Technical Drawings: | Support |
| Quality Control: | 100% open/short Test |
Raw material inspection | |
Size inspection | |
Visual inspection | |
| Application: | Electronics 、 Automotive、 Medical、 Industry、Network、 |
Electronics toy、 LED、Security、Equipment | |
Certification: | CE/ISO/RoHS, SGS |
Lead Time: | 2-3weeks |
Payment Method: | TT, Paypal |
Shipping way: | By Sea by air by DHL/Fedex /UPS/TNT |

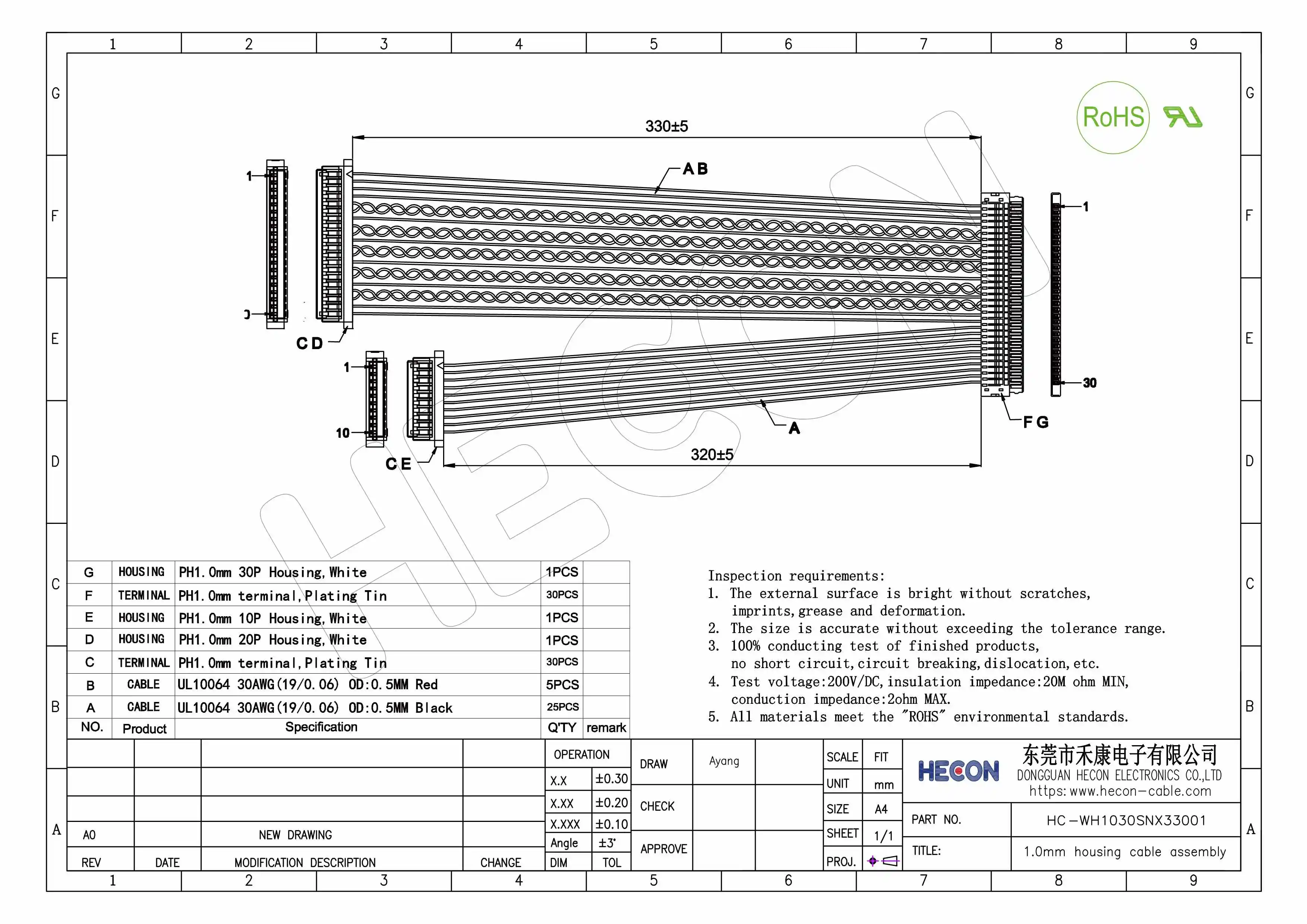

Drawings Details：
We HECON has full complete standard connectors and special customized products service such as Pogo pin and Pogo pin connectors also wire harness cable assemblies series so we thoroughly implement the products one-stop shopping, high quality, high value, time saving.
