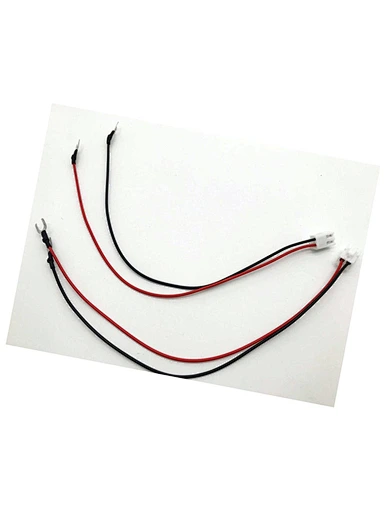

VH3.96mm Housing Connector 2P to 4.2Y Type cold pressed terminal L=250mm UL1007 18AWG
HC-WH39602SNW25001
EXW,FOB
500 pieces
100000pieces / Month
China
10-20Day
Custom solution manufacturer of wire harness cable &PCB Connectors
Meet One -Stop -Sourcing and save your time and Cost
LOW MOQ | 10 days delivery time | OEM/ODM service
Operating under ISO 9001:2000 Standards
Meet One -Stop -Sourcing and save your time and Cost
LOW MOQ | 10 days delivery time | OEM/ODM service
Operating under ISO 9001:2000 Standards
Quantity
Series No. | HC-WH39602SNW25001 |
Product name: | VH3.96mm 2P to 4.2Y Type cold pressed terminal L=250mm UL1007 18AWG |
Position: | 02P To 16P |
Connector: | Alternative or original brand name / Per your request |
| Wire Spec: | UL Cores Wire、Multi-Conductor Shielded wire、 Flat Ribbon Wire. |
UL1007 UL1571 UL1061 UL1015/ 26AWG/28AGW/30AWG/32AWG | |
Color: | Customized |
Length: | Customized Per your request |
Outer Insulation: | PVC、 Rubber、 Silicone、 PE、Teflon. |
Package: | PE Bag |
OEM&ODM Service: | Yes |
Samples: | Support samples to testing then mass production |
Technical Drawings: | Support |
| Quality Control: | 100% open/short Test |
Raw material inspection | |
Size inspection | |
Visual inspection | |
| Application: | Electronics 、 Automotive、 Medical、 Industry、Network、 |
Electronics toy、 LED、Security、Equipment | |
Certification: | CE/ISO/RoHS, SGS |
Lead Time: | 2-3weeks |
Payment Method: | TT, Paypal |
Shipping way: | By Sea by air by DHL/Fedex /UPS/TNT |

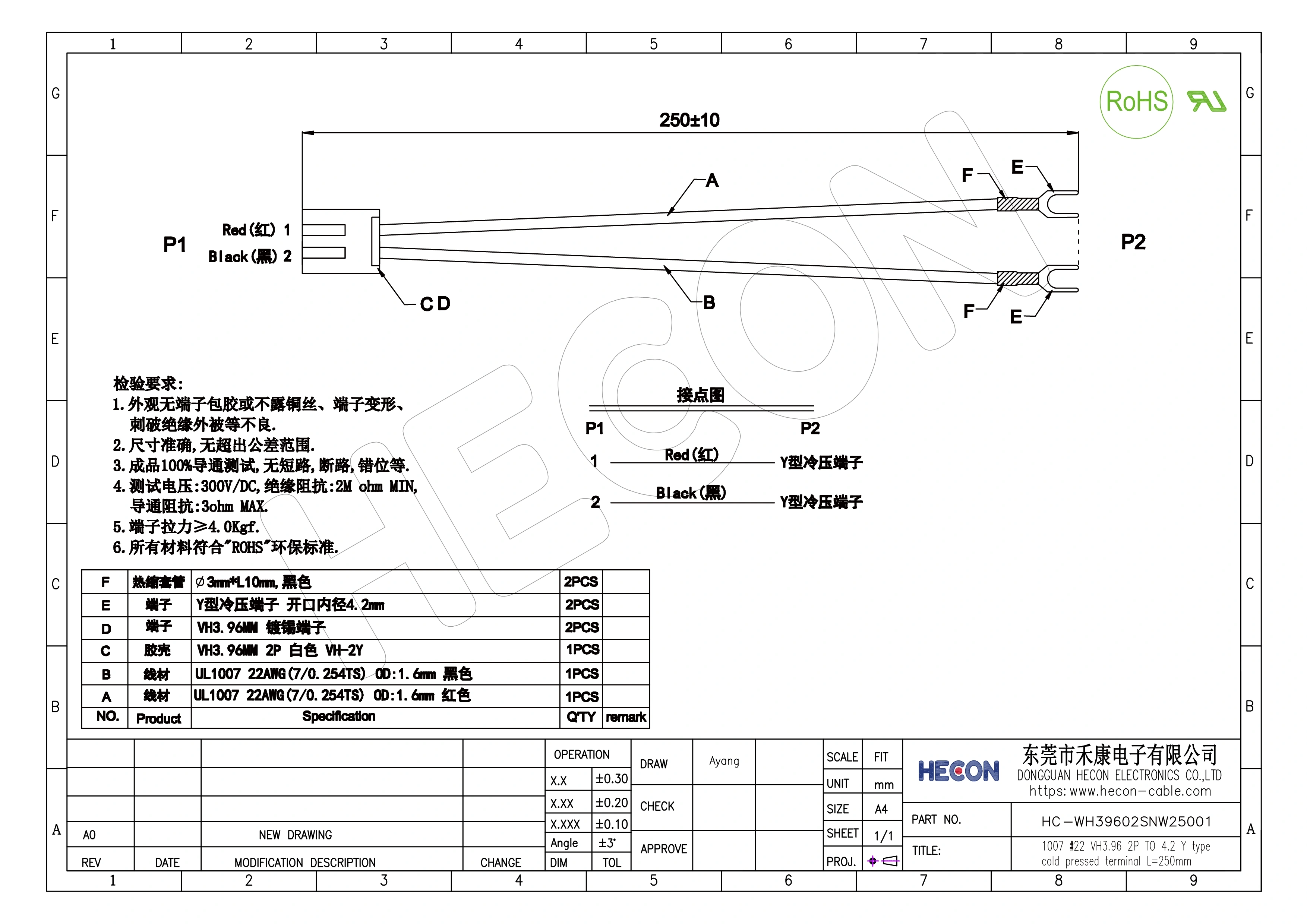

Drawings Details:
HECON &Manufacturer VH3.96mm Wire Cable Male Connector Wiring Harness Factory | Pitch:0.5 |0.8|1.0|1.25|1.5|2.0|2.5|2.54|3.0|3.96|4.2|5.08|6.35mm Cable Assembly Support free samples & custom wire gage
We Dongguan Hecon Electronics Co.,ltd has full complete standard connectors also special customized products service such as Pogo Pin, Pogo pin Connectors, Pin header, Female header, PCB Connectors and Wire Harness Cable& Cable Assemblies series so we thoroughly implement the products One-Stop-Shopping with High Quality, High Value, Time Saving.
