USB TYPE C Connectors 6Pin Female
USB TYPE C Connectors 6Pin Female
HC-USBC1006-FGB012
EXW,FOB
500 pieces
500000pieces / Month
China
15Day
Custom solution manufacturer of wire harness cable &PCB Connectors
Meet One -Stop -Sourcing and save your time and Cost
LOW MOQ | 10 days delivery time | OEM/ODM service
Operating under ISO 9001:2000 Standards
Quantity

Part Number: HC-USBC1006-FGB012



Description: USB TYPE C Connectors 6Pin Female



Package: Tube/Tray/Tape&Reel



Samples :5-10pcs with in 1 Weeks



Delivery date:2-3 Weeks



RoHS Compliant





Rated   Current


3 AMP


Rated Voltage


20V/DC Maximum


Resistance Voltage


AC 100V Minimum


Insulation Resistance


100mΩ   Minimum


Contact Resistance


40mΩ   Maximum


Durable Contact Resistance


50mΩ   Maximum


Operation Temperature


﹣30℃ to +85℃


Insertion force


5-20Nf.


Pulling force


8-20Nf.


Durability


3000 Cycles


Insertion force after Durability


5-20Nf.


Pulling force after Durability


6-20Nf.


Salt Spray Testing


24H

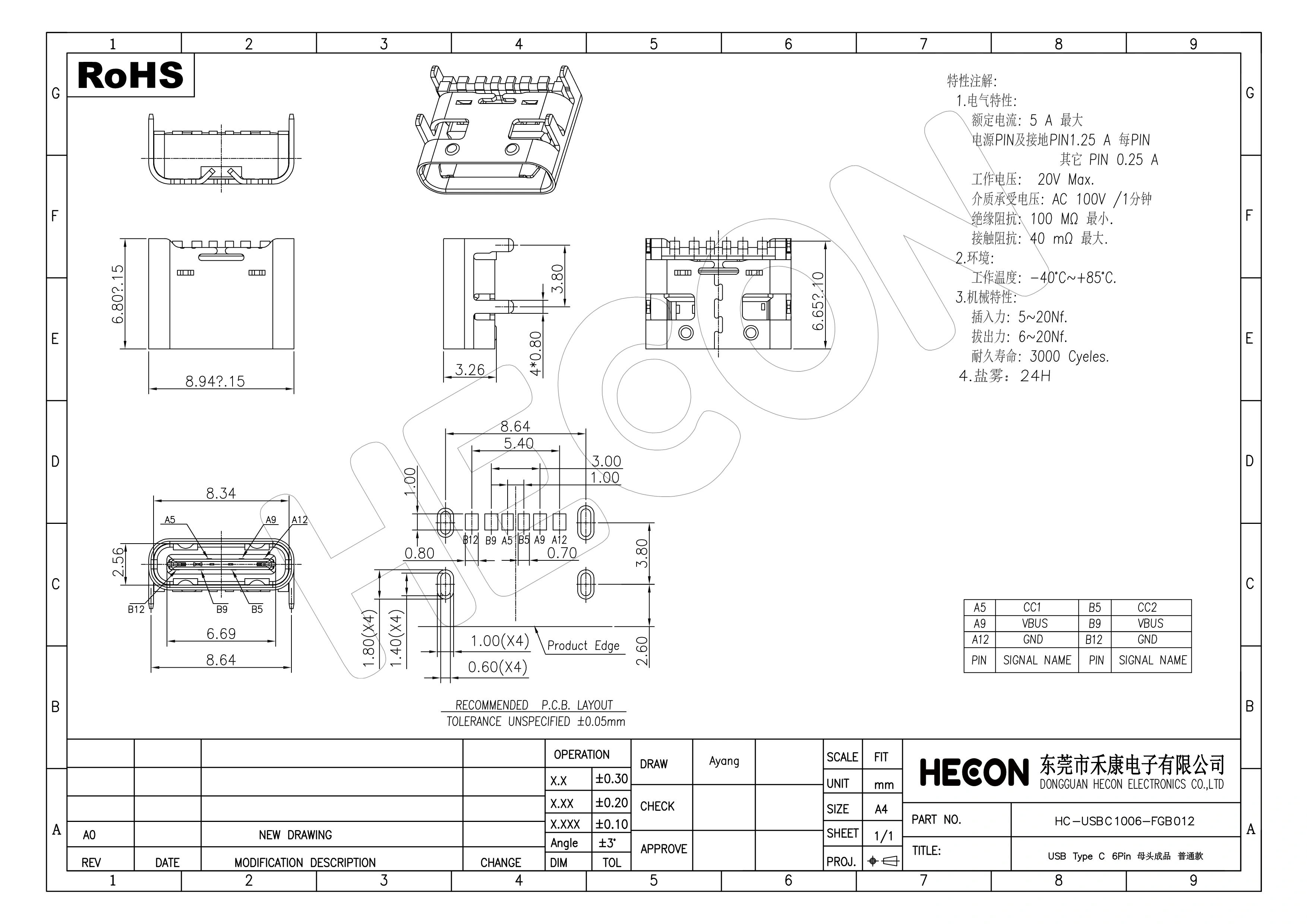

Drawings Details：



We DONGGUAN HECON ELECTRONICS CO.,LTD has full complete standard connectors and special customized products service such as  USB Type- C, Pogo pin and Pogo pin connectors also wire harness cable assemblies series so we thoroughly implement the products one-stop shopping, high quality, high value, time saving.
