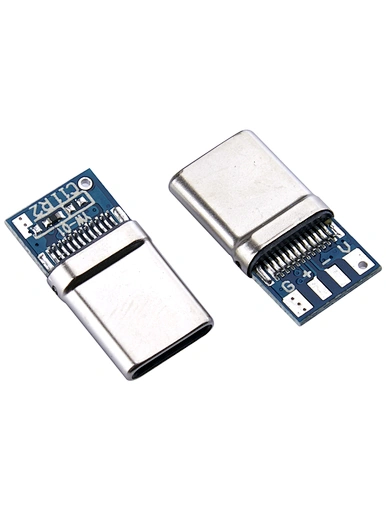

USB 2.0 TYPE C TO C DATA 10NF CAPACITANCE
USB 2.0 TYPE C TO C DATA 10NF CAPACITANCE
HC-USBCE101-08004XXX
EXW,FOB
500 pieces
500000pieces / Month
China
15Day
Custom solution manufacturer of wire harness cable &PCB Connectors
Meet One -Stop -Sourcing and save your time and Cost
LOW MOQ | 10 days delivery time | OEM/ODM service
Operating under ISO 9001:2000 Standards
Quantity

Part Number: HC-USBCE101-08004XXX



Description: USB 2.0 Type C TO C DATA 10NF CAPACITANCE



 Package: Tube/Tray/Tape&Reel



Samples :5-10pcs with in 1 Weeks



Delivery date:2-3 Weeks



RoHS Compliant





Rated   Current


3 AMP


Rated Voltage


20V/DC Maximum


Resistance Voltage


AC 100V Minimum


Insulation Resistance


100mΩ   Minimum


Contact Resistance


40mΩ   Maximum


Durable Contact Resistance


50mΩ   Maximum


Operation Temperature


﹣30℃ to +85℃


Insertion force


5-20Nf.


Pulling force


8-20Nf.


Durability


10000 Cycles


Insertion force after Durability


5-20Nf.


Pulling force after Durability


6-20Nf.

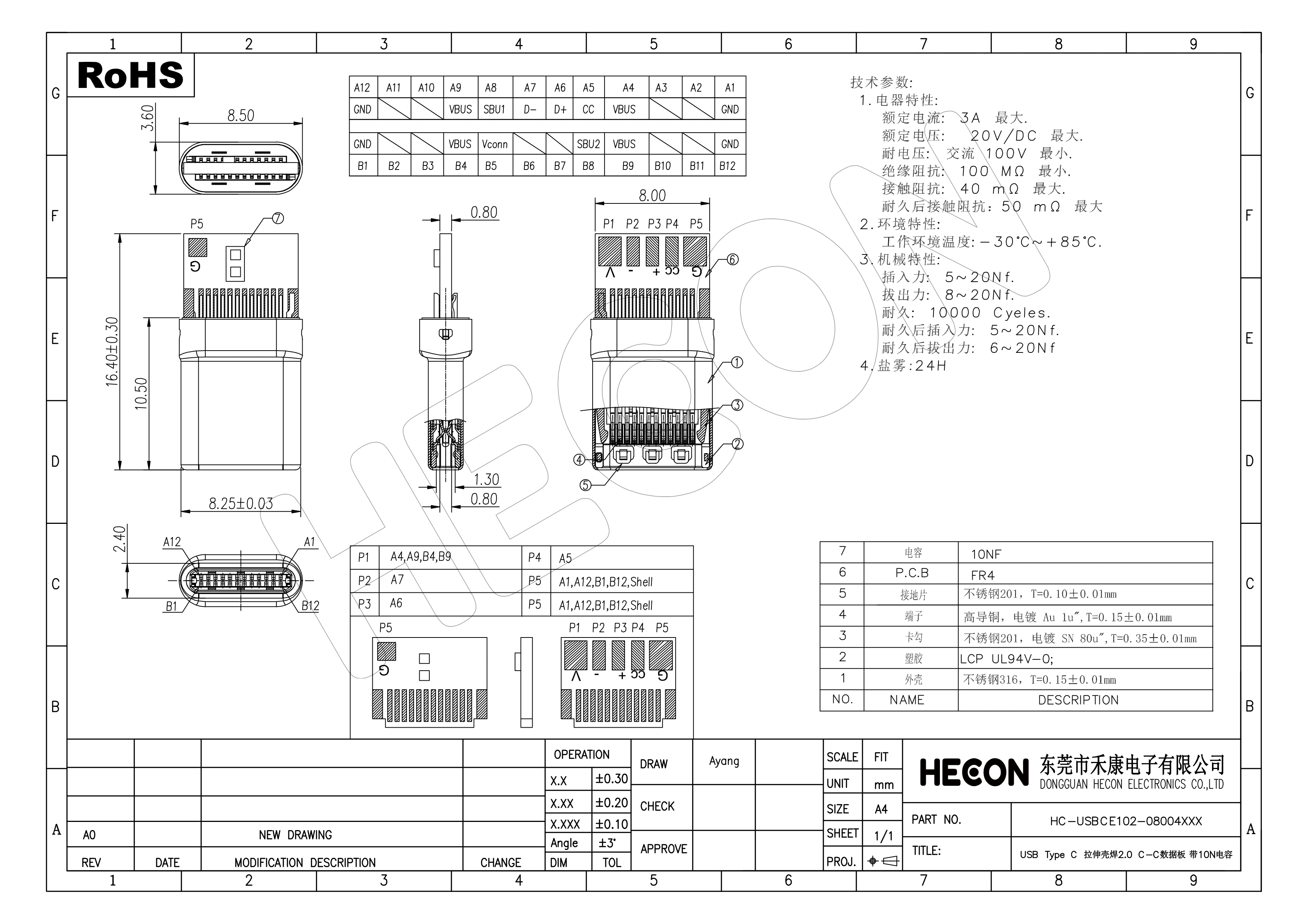

Drawings Details：



We DONGGUAN HECON ELECTRONICS CO.,LTD has full complete standard connectors and special customized products service such as  USB Type C, Pogo pin and Pogo pin connectors also wire harness cable assemblies series so we thoroughly implement the products one-stop shopping, high quality, high value, time saving.
