Part Number:HC-PGP-B-094-2.2-G3-01

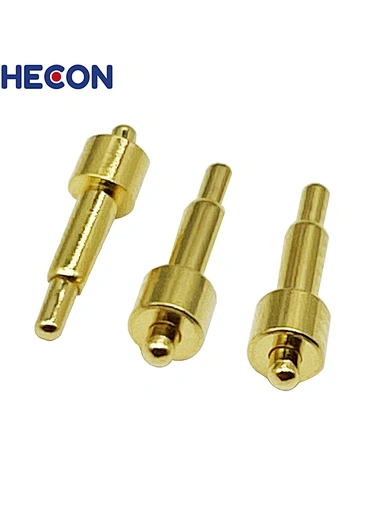

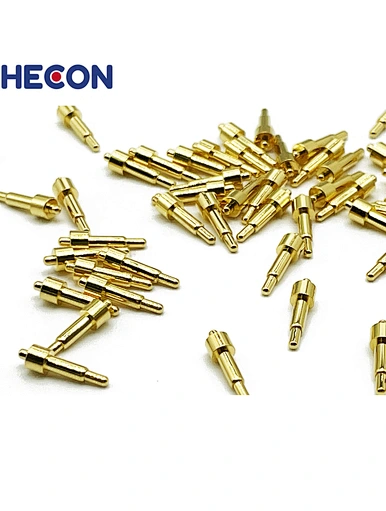

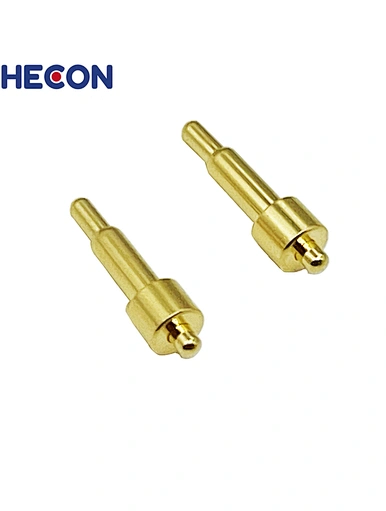

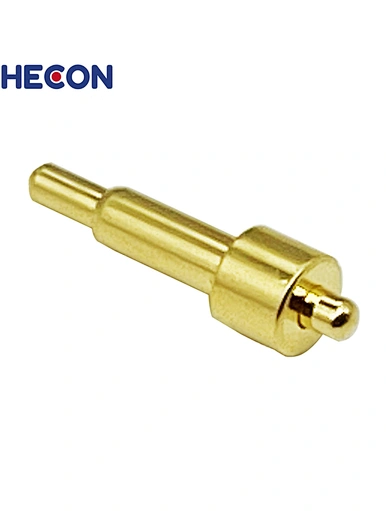

Description: Spring POGO Pin Ø2.5xL9.4/Working Height 6.2/1.0/2.0 , 10u Gold plated,Brass C3604, Current 2A, working force 60g, PE Bag Packing
Samples lead time: 1 week.
Mass Production Delivery date :2weeks confirmed order.
Customized POGO PIN Warmly welcome W/LOW MOQ.
Material
Plunger: Brass 3604
Barrel : Brass 3604
Spring: SUS304
Electrical Performance
Rated current:1A
Voltage:12V
Contact Resistance:30 mΩ Max
Environment Performance
Operating Temp:-40℃ to +105℃
Resistance to solder heat:260℃±5℃ 20s±2s
Salt Spray:48H

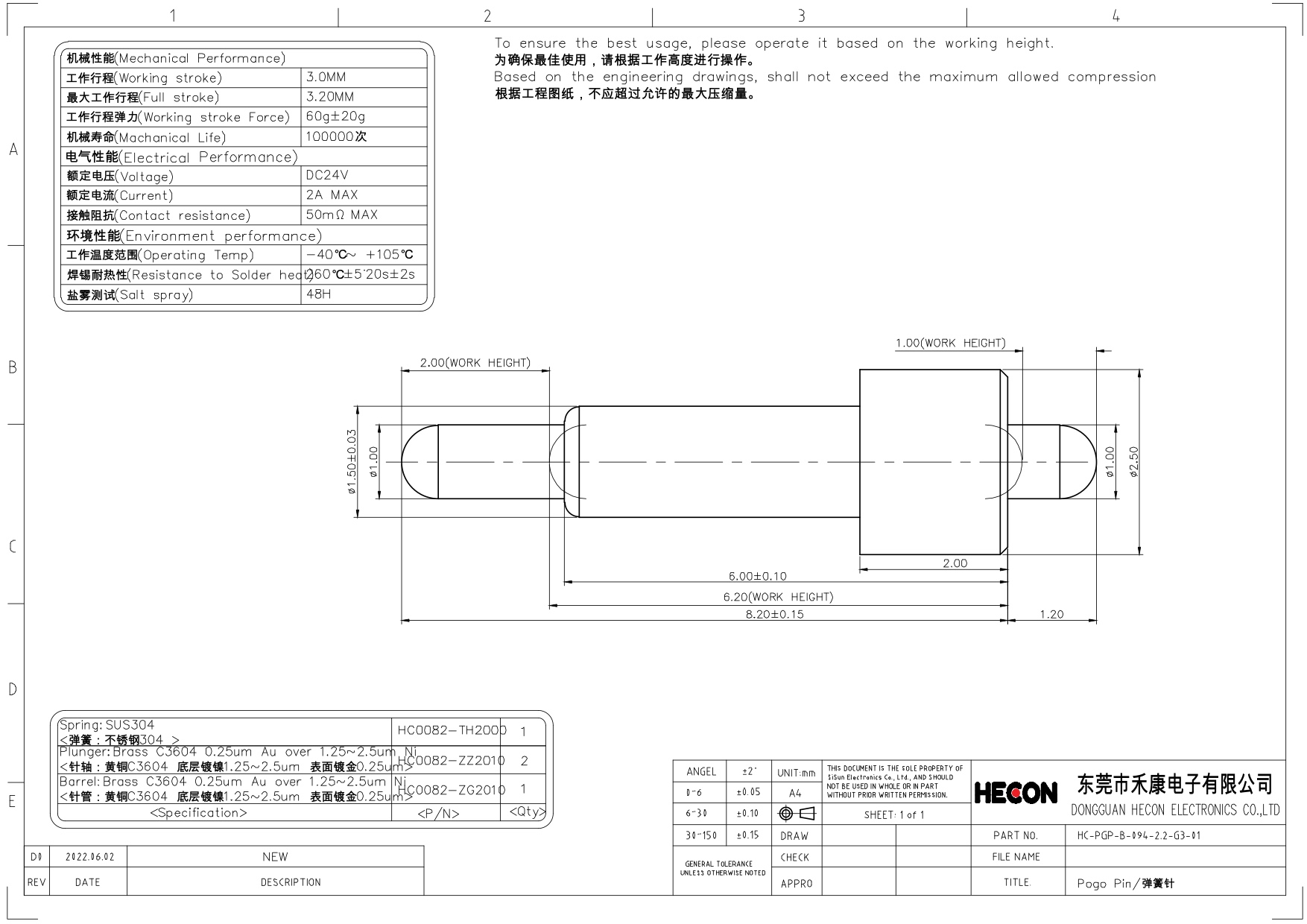

Drawings Details：
We HECON has full complete standard connectors also special customized products service such as Pogo Pin, Pogo Pin Connectors and Wire Harness Cable& Cable Assemblies series so we thoroughly implement the products One-Stop-Shopping with High Quality, High Value, Time Saving.
