Part Number:HC-PGC-A4.0-026-XX-11-XX-XX-X

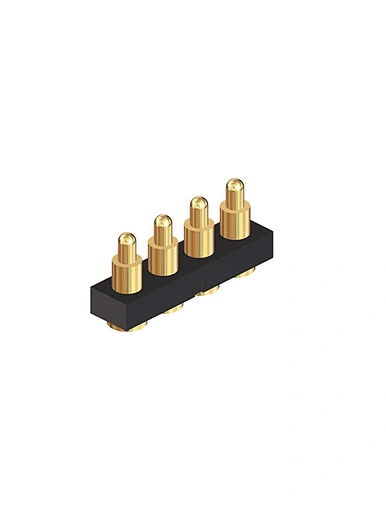

Description:SMT 4.0mm Pitch 1 Row Pogo Pin Connector


Pin Length: 2.6mm to 5.5mm


Material


Plunger: Brass


Barrel : Brass


Spring: SUS304


Mechanical Performance


Spring Force: 100±20g or Customized


Working Stroke: 0.7mm or Customized


Mechanical Life:100,000 cycles


Electrical Porformance


Rated current:1~3A


Voltage:3-36V


Contact Resistance:50 mΩ Max


Pin Way：1P-4P


Environment Performance


Operating Temp:-40℃ to +105℃


Resistance to solder heat:260℃±5℃  20s±2s


Salt Spray:48H


Samples lead time: 1 week.

Mass Production Delivery date :2weeks confirmed order.


Customized POGO PIN Warmly welcome W/LOW MOQ.

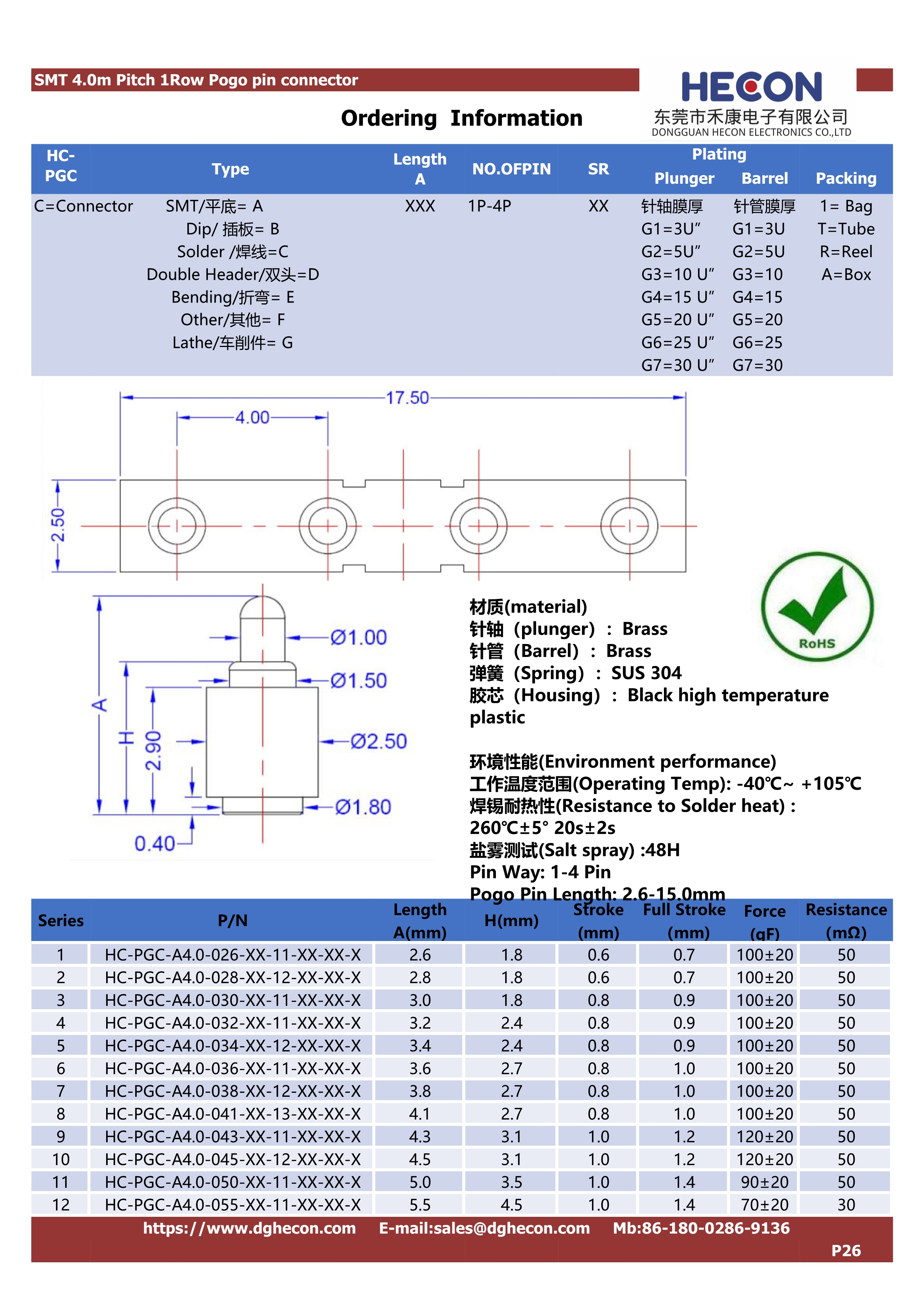

Drawings Details：
