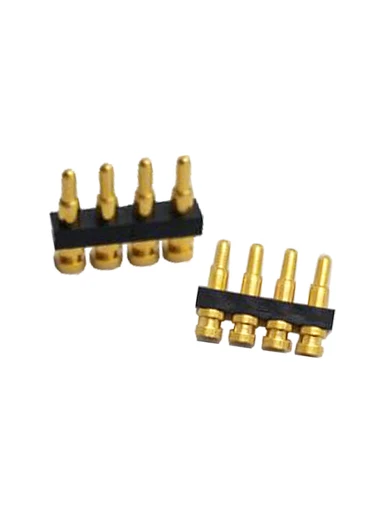

SMT 3.0mm Pitch 1 Row Pogo Pin Connector
SMT 3.0mm Pitch 1 Row Pogo Pin Connector
HC-PGC-A3.0-026-XX-11-XX-XX-X
EXW,FOB
500 pieces
500000pieces / Month
China
10-20Day
Custom solution manufacturer of wire harness cable &PCB Connectors
Meet One -Stop -Sourcing and save your time and Cost
LOW MOQ | 10 days delivery time | OEM/ODM service
Operating under ISO 9001:2000 Standards
Quantity

Part Number: HC-PGC-A3.0-026-XX-11-XX-XX-X


Description:SMT 3.0mm Pitch 1 Row Pogo Pin Connector


Pin Length: 2.6mm to 5.0mm



Material


Plunger: Brass


Barrel : Brass


Spring: SUS304



Mechanical Performance


Spring Force: 100±20g or Customized


Working Stroke: 0.7mm or Customized


Mechanical Life:100,000 cycles



Electrical Porformance


Rated current:1~3A


Voltage:3-36V


Contact Resistance:50 mΩ Max


Pin Way：1P-6P



Environment Performance


Operating Temp:-40℃ to +105℃


Resistance to solder heat:260℃±5℃  20s±2s


Salt Spray:48H



Samples lead time: 1 week.

Mass Production Delivery date :2weeks confirmed order.


Customized POGO PIN Warmly welcome W/LOW MOQ.

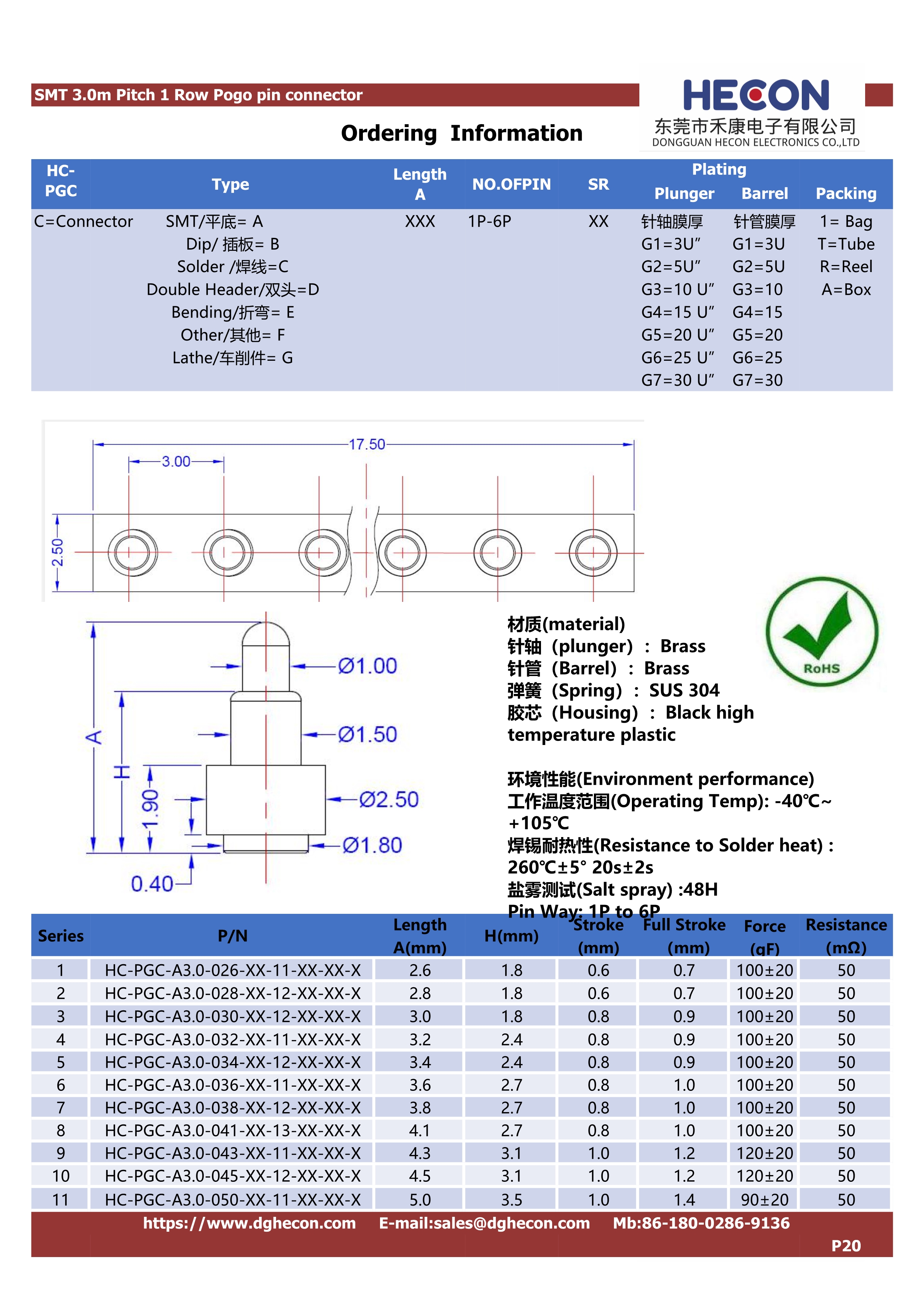

Drawings Details：




We HECON has full complete standard connectors also special customized products service such as Pogo Pin, Pogo pin Connectors and Wire Harness Cable& Cable Assemblies series so we thoroughly implement the products One-Stop-Shopping with High Quality, High Value, Time Saving.

Any Help or Inquiries Please Contact us sales@dghecon.com

Thank you!
