SMT 2.54mm Pitch Pogo Pin Connector
SMT 2.54mm Pitch Pogo Pin Connector
HC-PGC-A-070-XX-14-XX-XX-X
EXW,FOB
500 pieces
500000pieces / Month
China
10-20Day
Custom solution manufacturer of wire harness cable &PCB Connectors
Meet One -Stop -Sourcing and save your time and Cost
LOW MOQ | 10 days delivery time | OEM/ODM service
Operating under ISO 9001:2000 Standards
Quantity

Part Number:HC-PGC-A-070-XX-14-XX-XX-X


Description:SMT 2.54mm Pitch pogo pin Connector


Pin Length: 7.0mm to 15.0mm



Material


Plunger: Brass


Barrel : Brass


Spring: SUS304



Mechanical Performance


Spring Force: 70±20g or Customized


Working Stroke: 1.4mm or Customized


Mechanical Life:100,000 cycles



Electrical Porformance


Rated current:1~3A


Voltage:3-36V


Contact Resistance:30 mΩ Max


Pin Way：1P-8P



Environment Performance


Operating Temp:-40℃ to +105℃


Resistance to solder heat:260℃±5℃  20s±2s


Salt Spray:48H



Samples lead time: 1 week.

Mass Production Delivery date :2weeks confirmed order.


Customized POGO PIN Warmly welcome W/LOW MOQ.

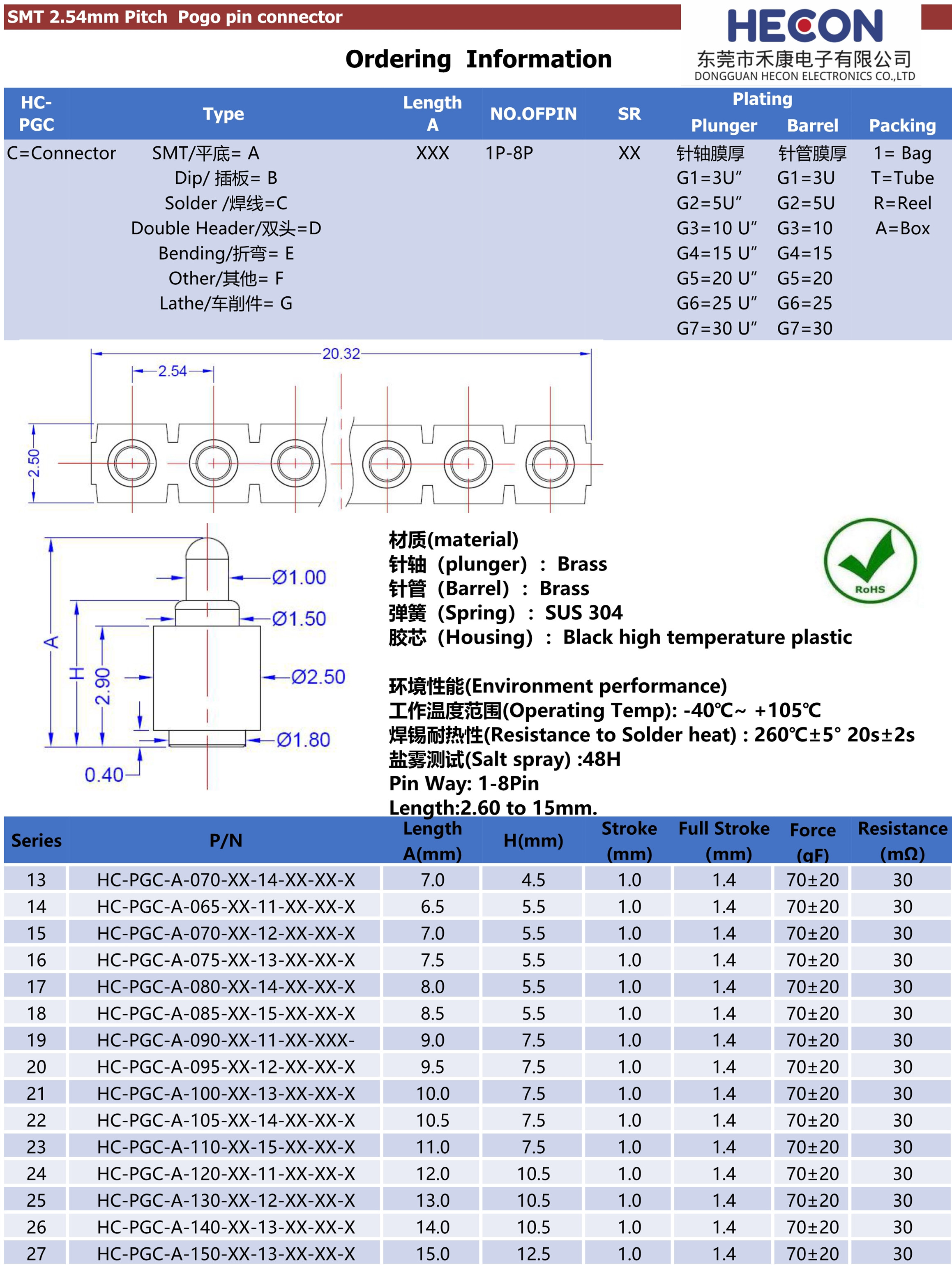

Drawings Details：











We HECON has full complete standard connectors and special customized products service such as Pogo pin and Pogo pin connectors also wire harness cable assemblies series so we thoroughly implement the products one-stop shopping, high quality, high value, time saving.
