Part No: HC-6235-01M17W2XXB0X

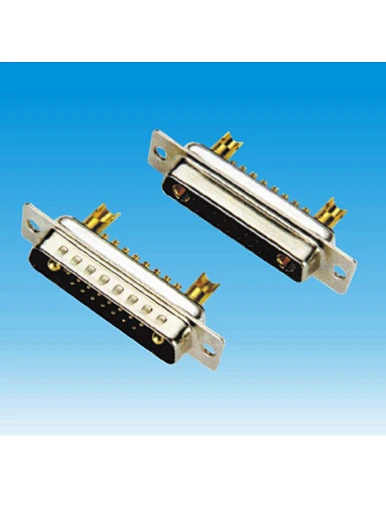

Product name: Maching Pin D-Sub 17W2 Male Power Solder Type
Position: 17P
SPECIFICATIONS:
Rated current: 10,20,0R 40 AMPS
RATED VOLTAGE: 1000 V AC FOR 1 MINUTE
Contact Resistance: 2.7mΩ max
DIELECTRIC STRENGTH: 750VRMS
Connector Insulator ：PBT THERMOPLASTIC,30% GLASS FILLED
Operating temperature: -55°C to 85°C
Insulation resistance: 5000MEGAOHMS MIN.
Free Samples :5-10pcs with 1 week
Packing: Tray
Delivery time: 20~25 Day
ROHS Compliant

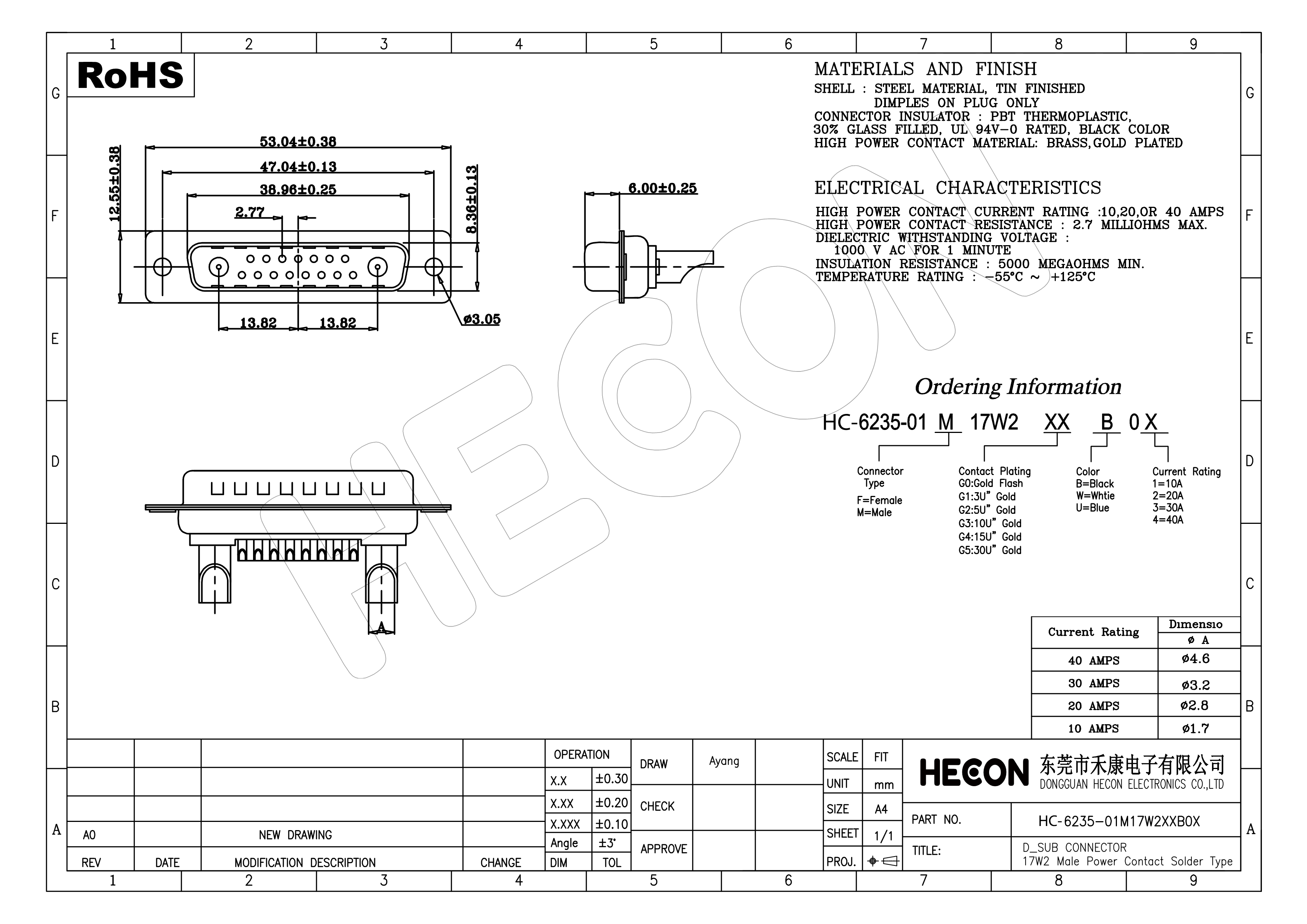

Drawings Details：
We DONGGUAN HECON ELECTRONICS CO.,LTD has full complete standard connectors and special customized products service such as D-sub Connector, USB Type- C, Pogo pin and Pogo pin connectors also wire harness cable assemblies series so we thoroughly implement the products one-stop shopping, high quality, high value, time saving.
