Series No.: HC-MP719-1350SG08201

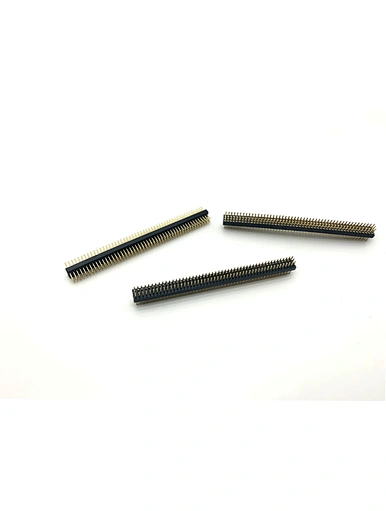

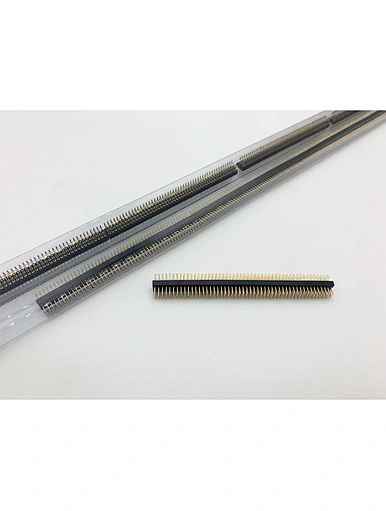

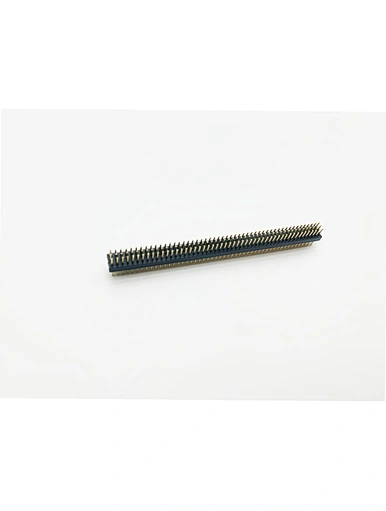

Description: 1.27mm Machined Pin Header H1.9 Three Row 3x50P  L=8.2mm Straight Type

Position: 3x50P

Type:Straight

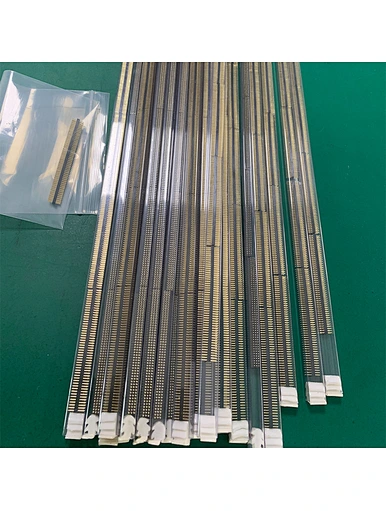

Package : PE Bag/ Tube or Tape&Reel Packing

MOQ: 1K

Free samples:10pcs within 1 weeks.

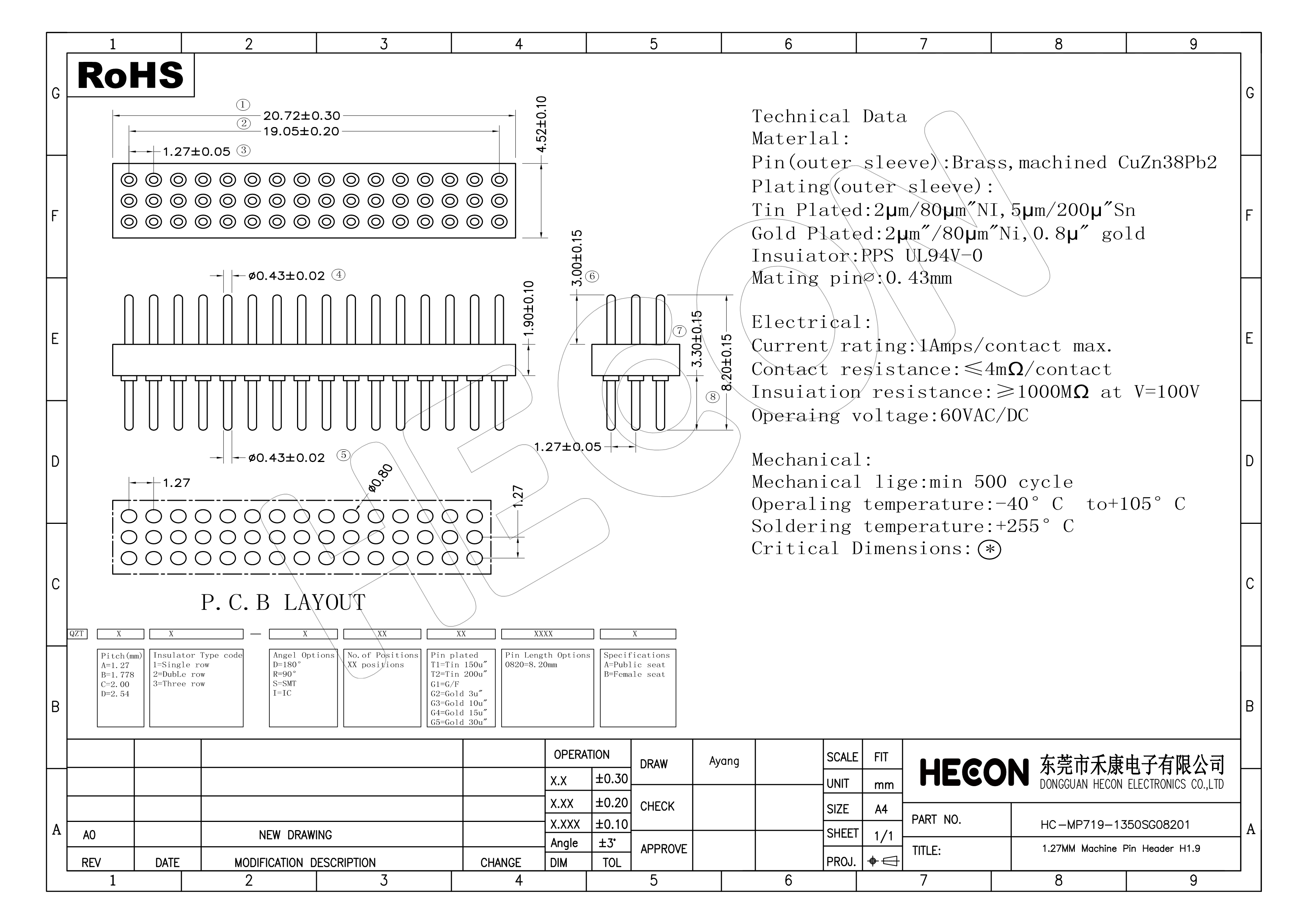

Specifications

Rated Current:1.0 AMP

Contact Resistance: ≤ 4mΩ  Max

Insulation Resistance:1000mΩ MinΩ at V=100V

Operation Voltage: 60VAC/DC

Mechanical lige: min 500 cycle

Operaling temperature:-40°C to +150°C

Soldering temperature:+255°C
