Series No.:HC-MP430-02XXXSG100T01

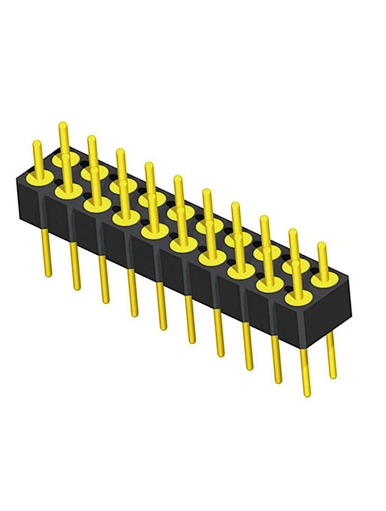

Description: 2.54mm Machined Pin Header H3.0 Dual Row L=10.0mm Straight Type

Position: 2x02P TO 2x40

Type: Straight

Package : PE Bag/ Tube or Tape&Reel Packing

MOQ: 1K

Free samples:10pcs within 1 weeks.

Specifications

Rated Current:3.0 AMP

Mechanical Life：500 Cycles Min

Contact Resistance: 20mΩ  Max

Withstand Voltage:500V AC/DC

Insulation Resistance:1000mΩ Min

Operation Temperature: -40°c to +105°c

Contact Material：Brass

Contact Plating：Au or SN  Over Ni

Insulator Material: PPS-GF30-FR-UL94V-0
