Series No.:HC-MP430-02XXXSG119T01

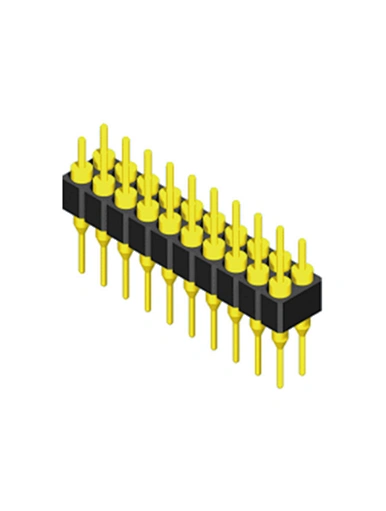

Description: 2.54mm Machined Pin Header H3.0 Dual Row L=11.9mm Straight Type
Position: 2x02P TO 2x40
Type: Straight
Package : PE Bag/ Tube or Tape&Reel Packing
MOQ: 1K
Free samples:10pcs within 1 weeks.
Specifications
Rated Current:3.0 AMP
Mechanical Life：500 Cycles Min
Contact Resistance: 20mΩ Max
Withstand Voltage:500V AC/DC
Insulation Resistance:1000mΩ Min
Operation Temperature: -40°c to +105°c
Contact Material：Brass
Contact Plating：Au or SN Over Ni
Insulator Material: PPS-GF30-FR-UL94V-0
Customized solution manufacturer of wire harness cable &PCB Connectors
Meet One -Stop -Sourcing and save your time and Cost
Engineers with over 20 year’s experience | 10 days delivery time | OEM/ODM
Operating under ISO 9001:2000 Standards
