Series No.: HC-MP030-01XXG0SX121X01

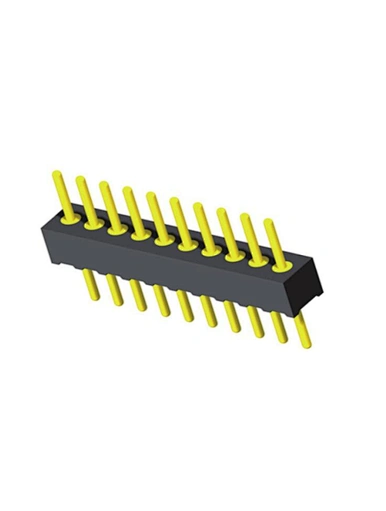

Description: 1.778mm Machined Pin Header H3.0 Single Row L=12.1mm Straight Type

Position: 1x02P TO 1x40

Type: Straight

Package : PE Bag/ Tube or Tape&Reel Packing

MOQ: 1K

Free samples:10pcs within 1 weeks.

Specifications

Rated Current:2.0 AMP

Mechanical Life：500 Cycles Min

Contact Resistance: 20mΩ  Max

Withstand Voltage:500V AC/DC

Insulation Resistance:1000mΩ Min

Operation Temperature: -40°c to +105°c

Contact Material：Brass

Contact Plating：Au or SN  Over Ni

Insulator Material: PPS-GF30-FR-UL94V-0

We HECON has full complete standard connectors and special customized products service such as Pogo pin and Pogo pin connectors also wire harness cable assemblies series so we thoroughly implement the products one-stop shopping, high quality, high value, time saving.
