Series No.: HC-MP719-02XXG0SX081X01

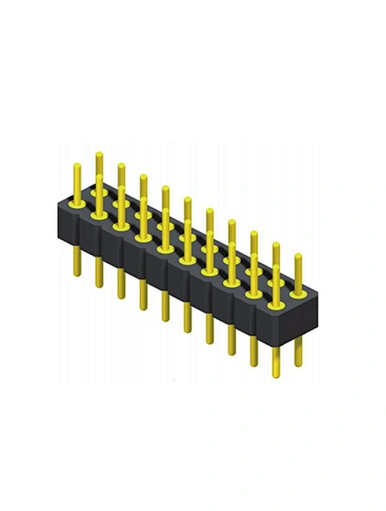

Description: 1.27mm Machined Pin Header H1.9 Dual Row L=8.1mm Straight Type
Position: 2x02P TO 2x50
Type: Straight
Package : PE Bag/ Tube or Tape&Reel Packing
MOQ: 1K
Free samples:10pcs within 1 weeks.
Specifications
Rated Current:1.0 AMP
Mechanical Life：500 Cycles Min
Contact Resistance: 10mΩ Max
Withstand Voltage:500V AC/DC
Insulation Resistance:1000mΩ Min
Operation Temperature: -40°c to +105°c
Contact Material：Brass
Contact Plating：Au or SN Over Ni
Insulator Material: PPS-GF30-FR-UL94V-0
We HECON has full complete standard connectors and special customized products service such as Pogo pin and Pogo pin connectors also wire harness cable assemblies series so we thoroughly implement the products one-stop shopping, high quality, high value, time saving.
