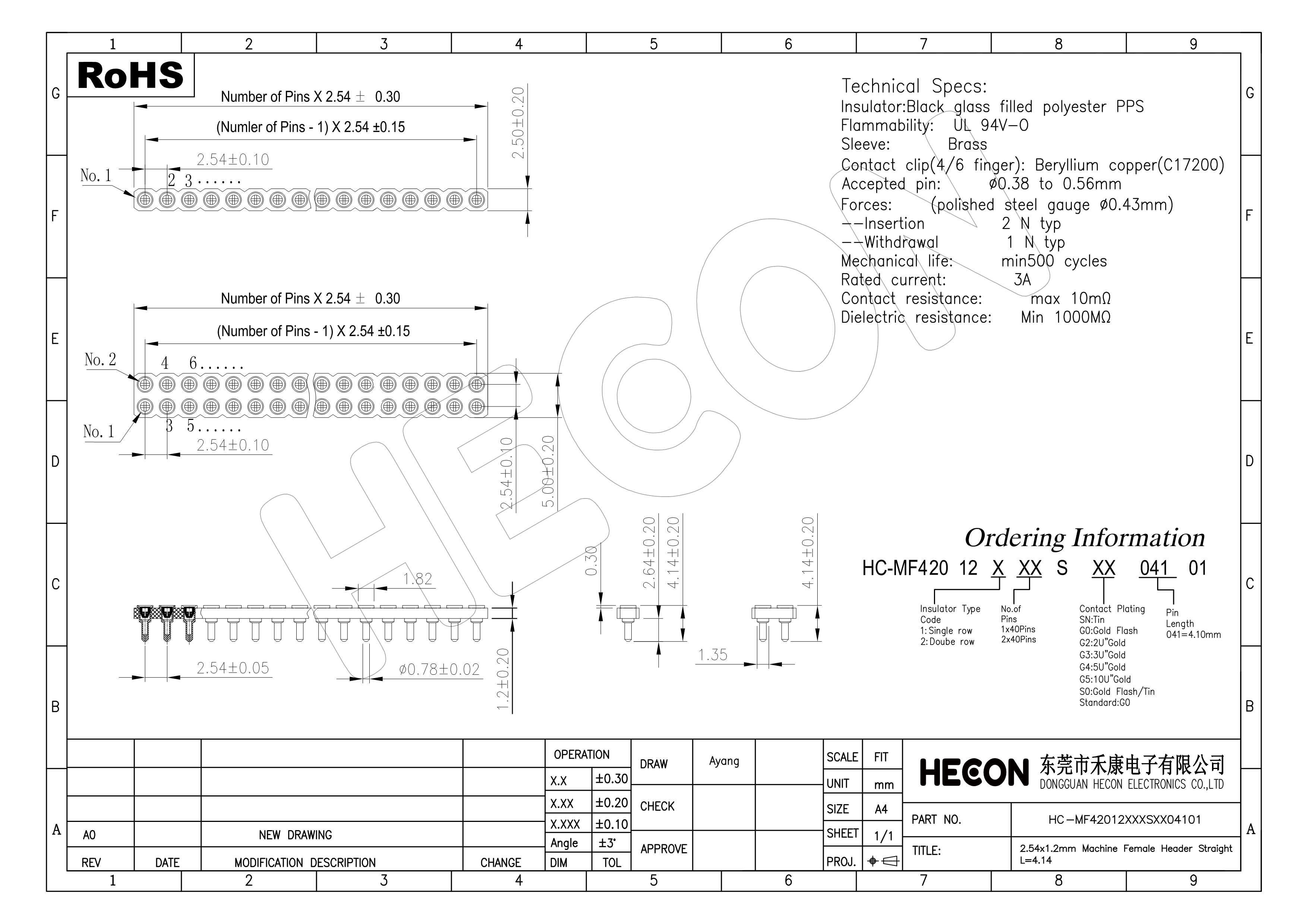

Series No.: HC-MF42012-1XXG0SX041T01

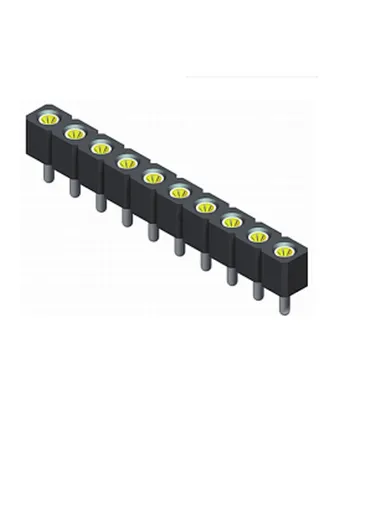

Description: 2.54mm Machined Female Header H1.2 Single Row L=4.1 Straight

Position:  1x02P TO 1x40P

Type:  Straight

Raw Material:  PPS/PBT

Contact Material: Brass

Package : Tube or Tape&Reel Packing

MOQ: 1K

Free samples:10pcs within 1 weeks.

Specifications:

Rated Current:3.0AMP

Contact Resistance: 10mΩ  Max

Withstand Voltage:500V AC/DC

Insulation Resistance:1000mΩ Min

Operation Temperature: -40°c to +105°c

Soldering Temperature: 245°c to +/-5°c 5s Max
