Drawing Download
Series No.: HC-MF52228-2XXG0MG074T01

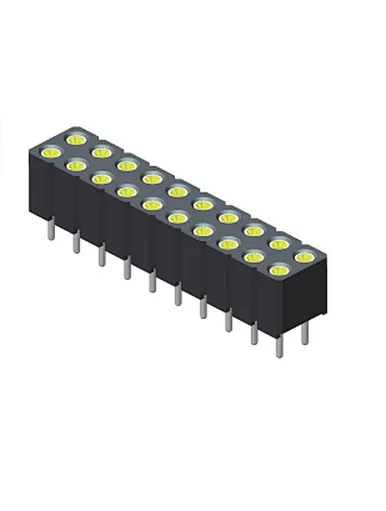

Description: 2.0mm Machined Female Header H2.8 Dual Row L=7.4mm SMT
Position: 2x02P TO 2x40P
Type: SMT
Raw Material: PPS
Contact Material: Brass
Package : Tube or Tape&Reel Packing
MOQ: 1K
Free samples:10pcs within 1 weeks.
Specifications
Rated Current:3.0AMP
Contact Resistance: 10mΩ Max
Withstand Voltage:500V AC/DC
Insulation Resistance:1000mΩ Min
Operation Temperature: -40°c to +105°c
Soldering Temperature: 245°c to +/-5°c 5s Max
Contact Material : Brass
Contact Clip(4 Finger) Berylium Copper
Mating Pin : Φ0.35mm to Φ0.5mm
Forces: Polished Steel gauge Φ0.41m
Mechanical Life: 500 Cycles Min
Contact Plating: Au or SN Over Ni
Insulator Material :PPS -GF30-FR-UL94V-0 Or PBT
