Machined Female Header
HC-MF42070-1XXG0MX100T01
EXW,FOB
500 pieces
500000pieces / Month
China
15Day
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.
Quantity
Series No.: HC-MF42070-1XXG0MX100T01

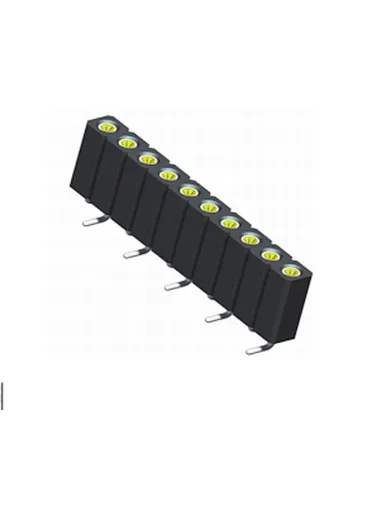

Description: 2.54mm Machined Female Header H7.0 Single Row L=10.0 SMT
Position: 1x02P TO 1x40P
Type: SMT
Raw Material: PPS/PBT
Contact Material: Brass
Package : Tube or Tape&Reel Packing
MOQ: 1K
Free samples:10pcs within 1 weeks.
Specifications:
Rated Current:3.0AMP
Contact Resistance: 10mΩ Max
Withstand Voltage:500V AC/DC
Insulation Resistance:1000mΩ Min
Operation Temperature: -40°c to +105°c
Soldering Temperature: 245°c to +/-5°c 5s Max
Customized solution manufacturer of wire harness cable &PCB Connectors
Meet One -Stop -Sourcing and save your time and Cost
Engineers with over 20 year’s experience | 10 days delivery time | OEM/ODM
Operating under ISO 9001:2000 Standards
