Series No.: HC-MF72435-1XXG0SG089T01

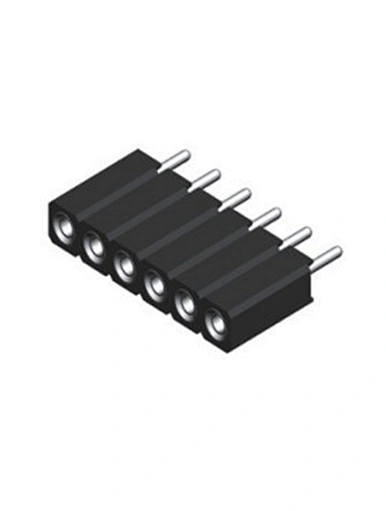

Description: 1.27mm Machined Female Header H3.5 Single Row L=8.9mm Straight
Position: 1x02P TO 1x40P
Type: Straight
Raw Material: PPS
Contact Material: Brass
Specifications
Rated Current:1.0AMP
Contact Resistance: 20mΩ Max
Withstand Voltage:500V AC/DC
Insulation Resistance:500mΩ Min
Operation Temperature: -40°c to +105°c
Soldering Temperature: 245°c to +/-5°c 5s Max
Contact Material : Brass
Contact Clip(4 Finger) Berylium Copper
Mating Pin : Φ0.35mm to Φ0.5mm
Forces: Polished Steel gauge Φ0.41m
Mechanical Life: 500 Cycles Min
Contact Plating: Au or SN Over Ni
Insulator Material :PPS -GF30-FR-UL94V-0 Or PBT
Package : Tube or Tape&Reel Packing
MOQ: 1K
Free samples:10pcs within 1 weeks.

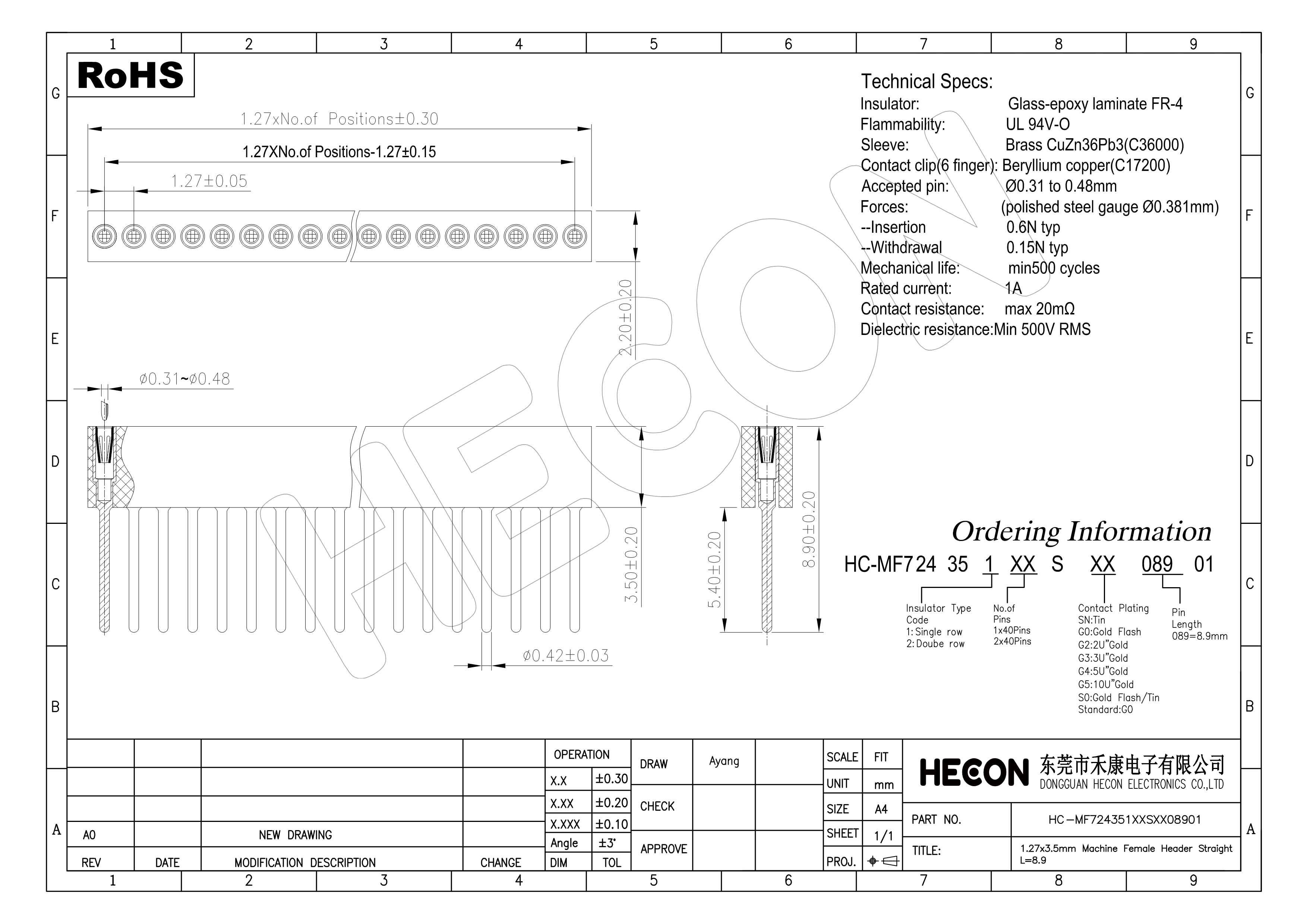

Drawings Details：
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.
