Machined Female Header
Machined Female Header
HC-MF72438-2XXG0RG089T01
EXW,FOB
500 pieces
500000pieces / Month
China
15Day
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.
Quantity

Series No.: HC-MF72438-2XXG0RG089T01

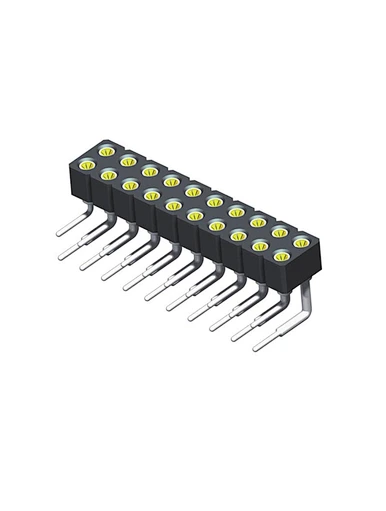

Description: 1.27mm Machined Female Header H3.8 Dual Row L=8.9mm Right Angle

Position:  2x02P TO 2x40P

Type:  Right Angle

Raw Material:  PPS

Contact Material: Brass

Package : Tube or Tape&Reel Packing

MOQ: 1K

Free samples:10pcs within 1 weeks.

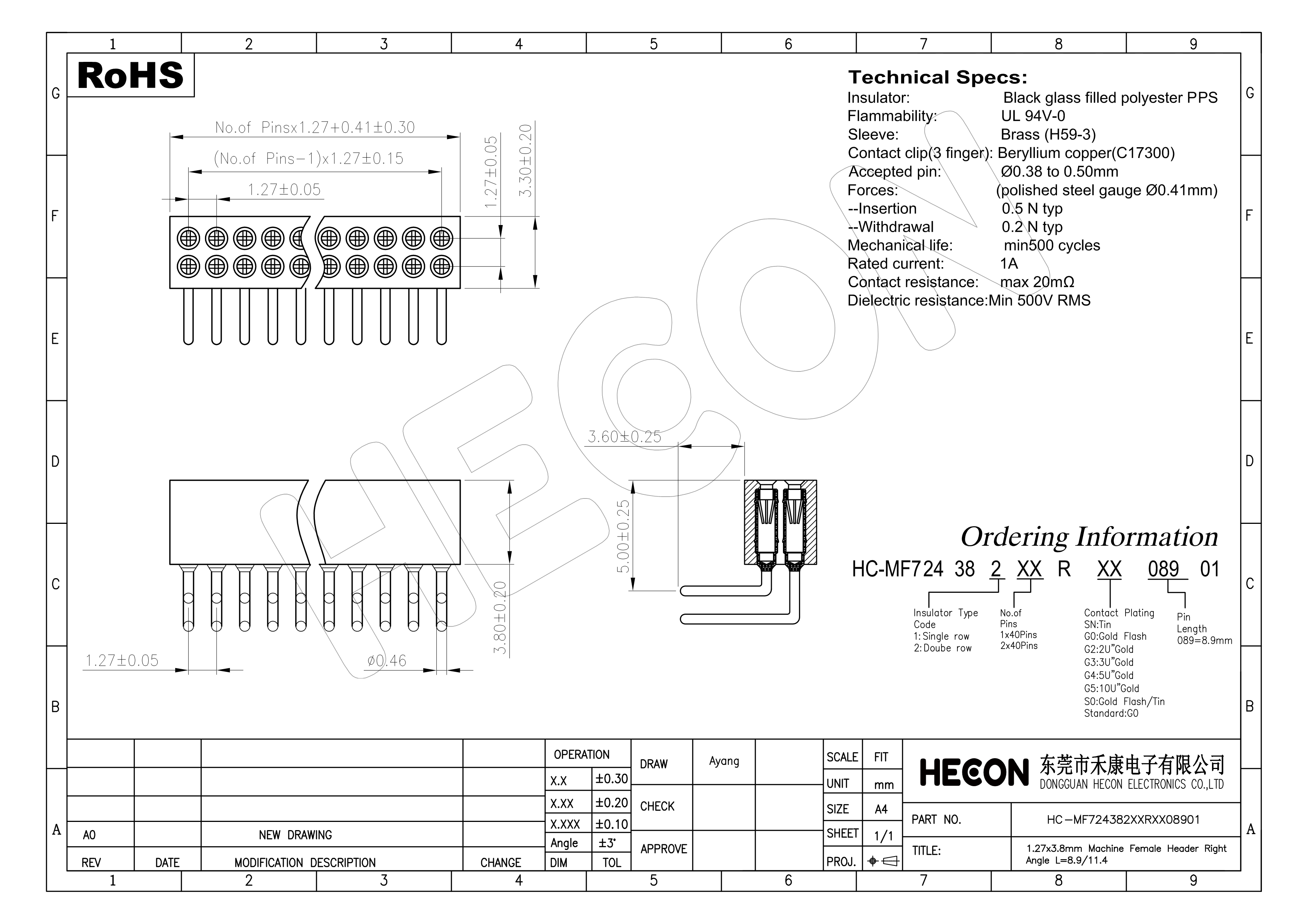

Specifications

Rated Current:1.0AMP

Contact Resistance: 20mΩ  Max

Withstand Voltage:500V AC/DC

Insulation Resistance:500mΩ Min

Operation Temperature: -40°c to +105°c

Soldering Temperature: 245°c to +/-5°c 5s Max

Contact Material : Brass

Contact Clip(4 Finger)  Berylium Copper

Mating Pin : Φ0.35mm to Φ0.5mm

Forces:  Polished Steel gauge Φ0.41m

Mechanical Life: 500 Cycles Min

Contact Plating: Au or SN  Over Ni

Insulator Material :PPS -GF30-FR-UL94V-0 Or PBT
