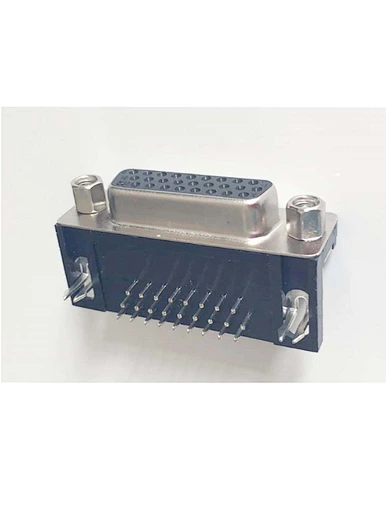

HD-D-Sub 26P Female Right Angle Type

Model NO. HC-6236-726FRS0B01

Delivery EXW,FOB

Minimum order quantity 500 pieces

Supply Ability 500000pieces / Month

Country of Origin China

Stock Time 15Day

Custom solution manufacturer of wire harness cable &PCB Connectors
Meet One -Stop -Sourcing and save your time and Cost
LOW MOQ | 10 days delivery time | OEM/ODM service
Operating under ISO 9001:2000 Standards

Quantity

Part No. : HC-6236-726FRS0B01

Product name: HD-D-Sub 26P Female Right Angle Type

Position: 26P

SPECIFICATIONS:

Rated current: 5.0 AMPS

RATED VOLTAGE: 1000V

Contact Resistance: 20mΩ max

SIeeve: PBT

Contact Material: Brass

Operating temperature: -50°C to 105°C

Contact Plating: Gold Flash

Insulation resistance: 1000mΩ Min.at 500V DC

Free Samples :5-10pcs with 1 week

Packing: Tray

Delivery time: 20~25 Day

ROHS Compliant

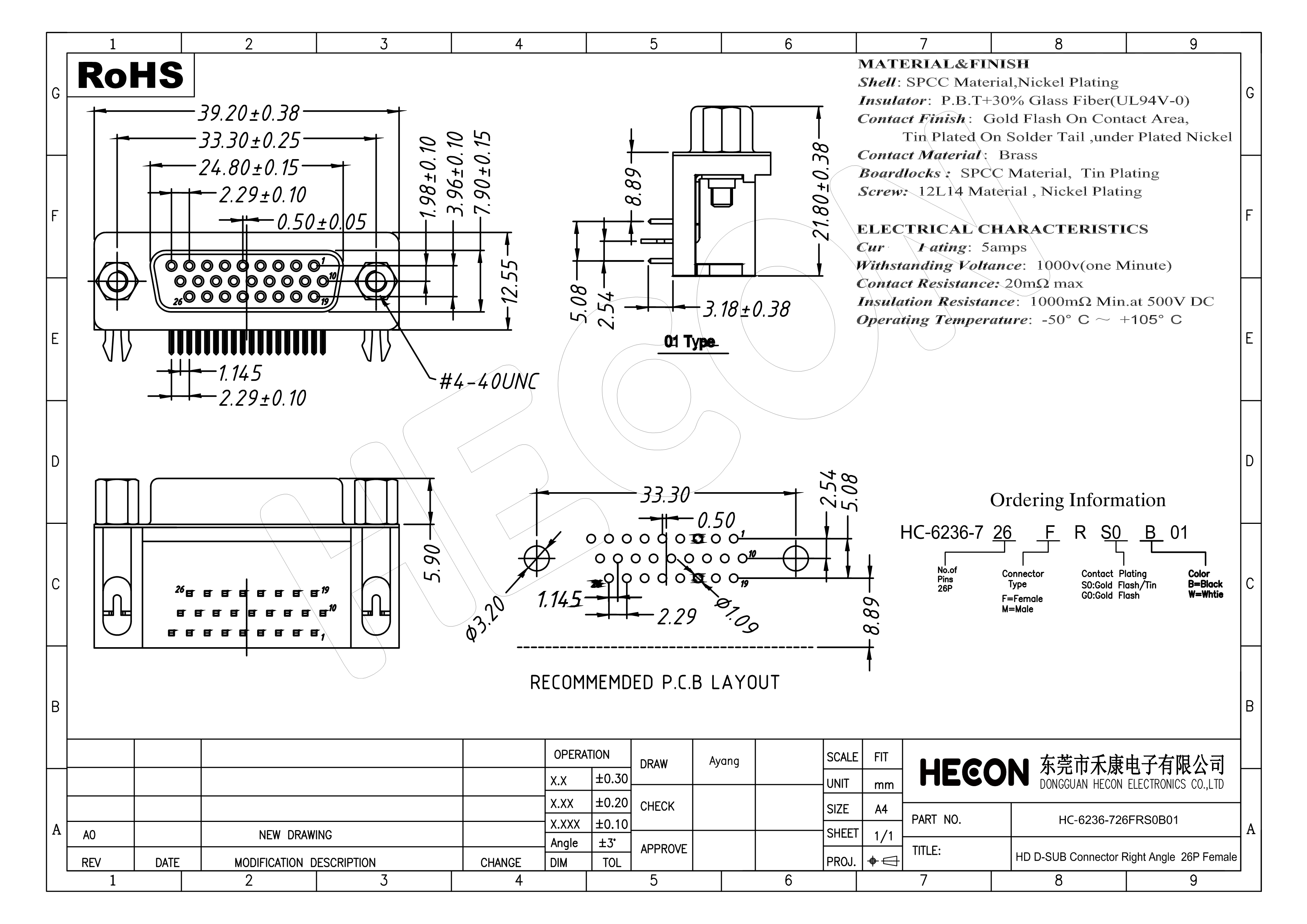

Drawings Details：

We DONGGUAN HECON ELECTRONICS CO.,LTD has full complete standard connectors and special customized products service such as D-SUB Connector, USB Type- C, Pogo pin and Pogo pin connectors also wire harness cable assemblies series so we thoroughly implement the products one-stop shopping, high quality, high value, time saving.
