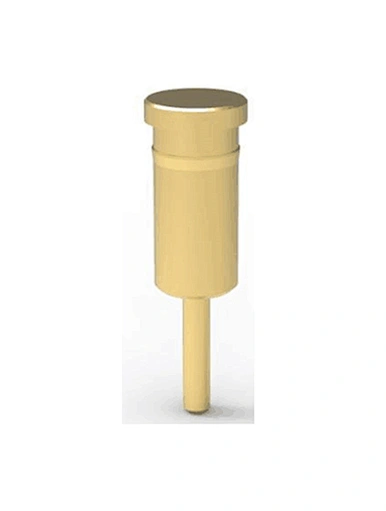

Female Type Pogo pin for 2.54mm Pogo Pin Connectors
Female Type Pogo pin for 2.54mm Pogo Pin Connectors
HC-PGP-G-036-1.8-XXX
EXW,FOB
500 pieces
500000pieces / Month
China
10-20Day
Custom solution manufacturer of wire harness cable &PCB Connectors
Meet One -Stop -Sourcing and save your time and Cost
LOW MOQ | 10 days delivery time | OEM/ODM service
Operating under ISO 9001:2000 Standards
Quantity

Part Number:HC-PGP-G-036-1.8-XXX


Description: Female Type Pogo pin for 2.54mm Pogo Pin Connectors


Pin Length: 3.6mm to 147mm


Samples lead time: 1 week.

Mass Production Delivery date :2weeks confirmed order.


Customized POGO PIN Warmly welcome W/LOW MOQ.


Material


Plunger: Brass 3604


Barrel : Brass 3604


Spring: SUS304


Electrical Performance


Rated current:3A


Voltage:3-36V


Contact Resistance:10 mΩ Max


Environment Performance


Operating Temp:-40℃ to +105℃


Resistance to solder heat:260℃±5℃  20s±2s


Salt Spray:48H

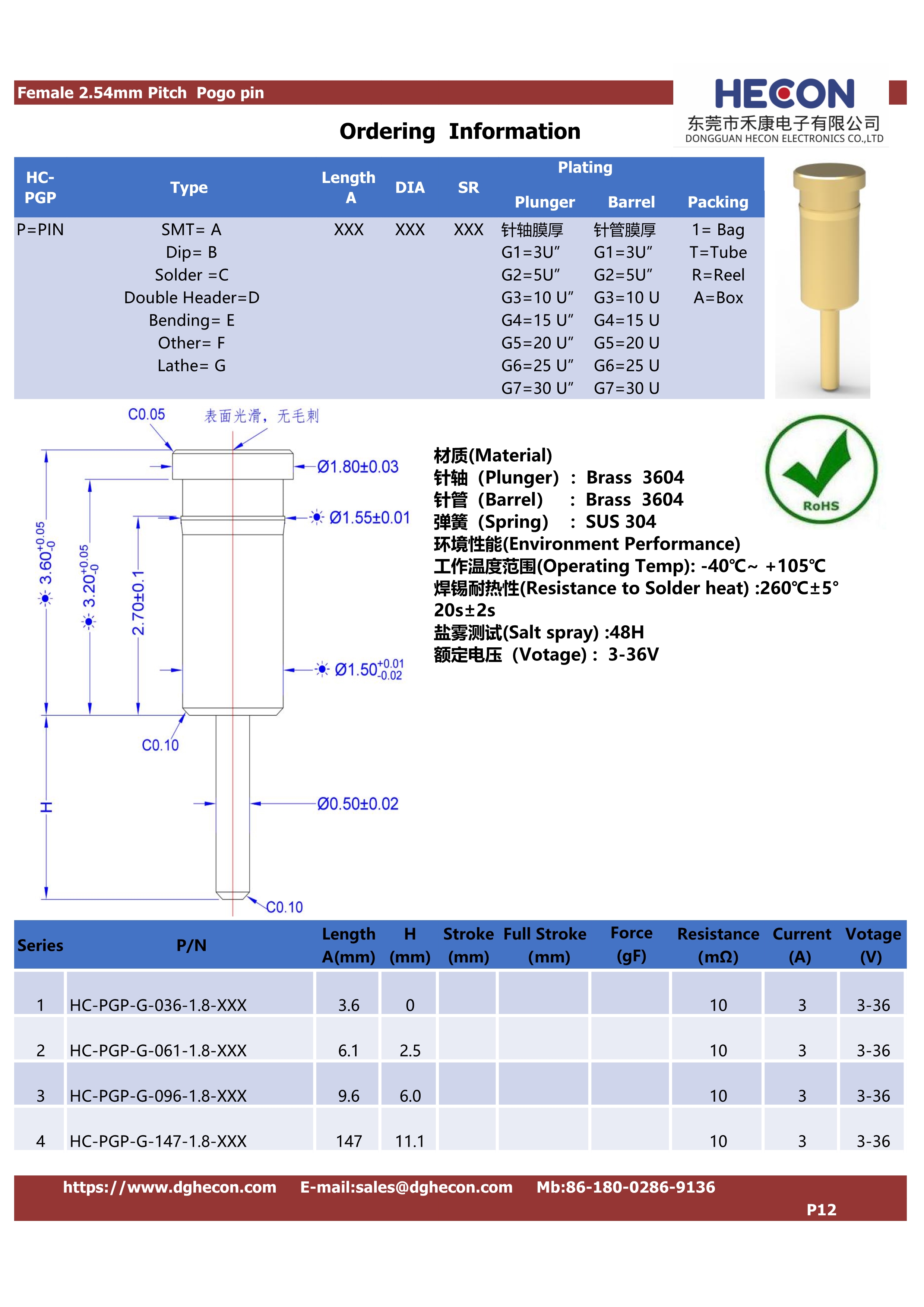

Drawings details:




We HECON has full complete standard connectors also special customized products service such as Pogo Pin, Pogo pin Connectors and Wire Harness Cable& Cable Assemblies series so we thoroughly implement the products One-Stop-Shopping with High Quality, High Value, Time Saving.

Any Help or Inquiries Please Contact us sales@dghecon.com

Thank you!
