Series No.: HC-FH485-02X32CNG0SYX01

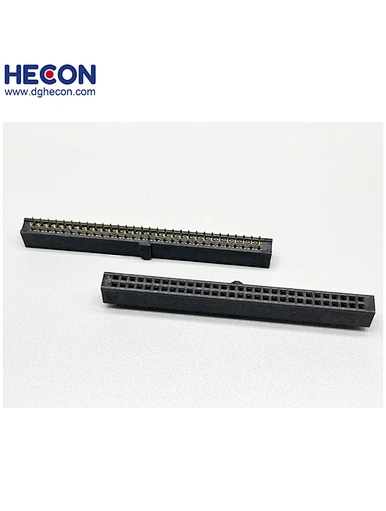

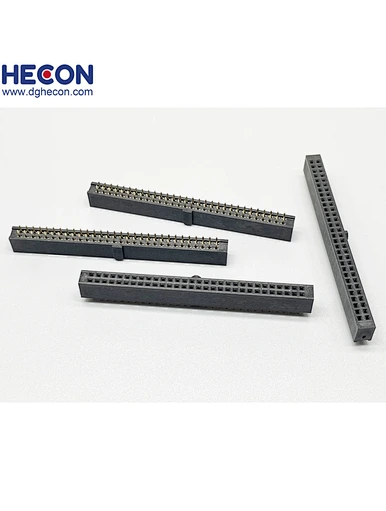

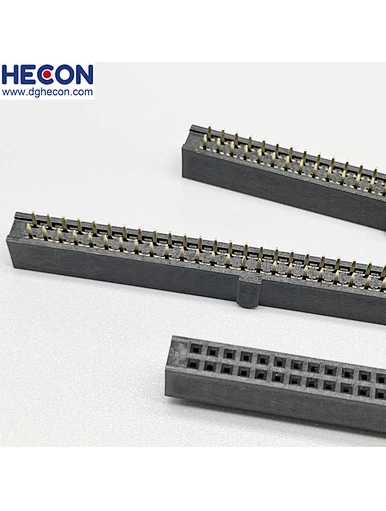

Description: 2.54mm Female Header H8.5 Dual Row Straight
Type: Straight
Position: 2x32P
Raw Material: PA6T
Contact Material: Brass
Package : PE Bag/ Tube /Tray /or Tape&Reel Packing
MOQ: 1K
Free samples:10pcs within 1 weeks.
Specifications
Rated Current:3.0AMP
Contact Resistance: 20 mΩ Max
Withstand Voltage:1000V AC/DC
Insulation Resistance:1000mΩ Min
Operation Temperature: -40°c to +105°c
Max.Processing Temp: 230°c for 30-60 Seconds
260°c for 10 Seconds

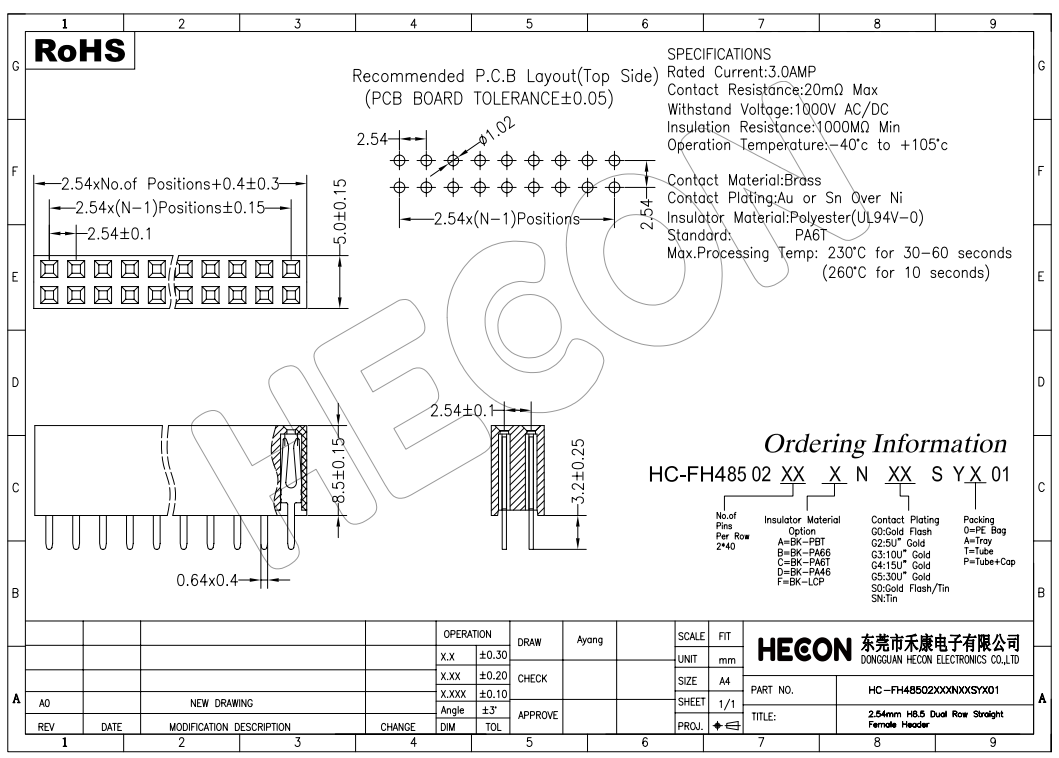

Drawings Details：
We HECON has full complete standard connectors and special customized products service such as Pogo pin and Pogo pin connectors also wire harness cable assemblies series so we thoroughly implement the products one-stop shopping, high quality, high value, time saving.
