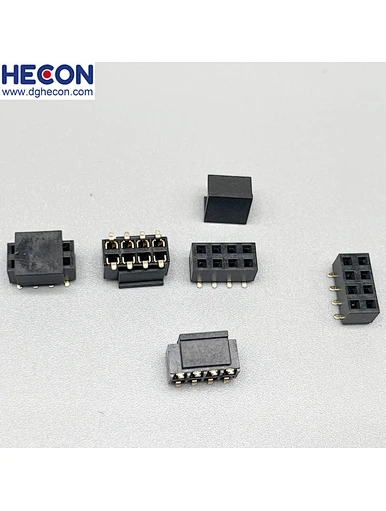

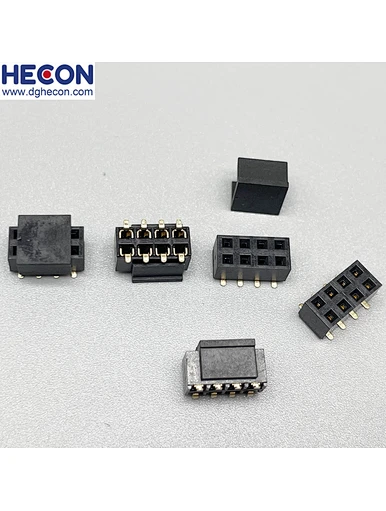

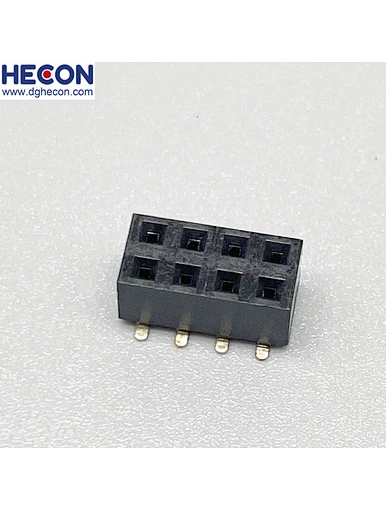

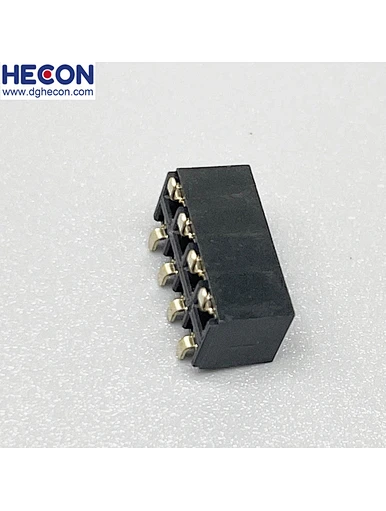

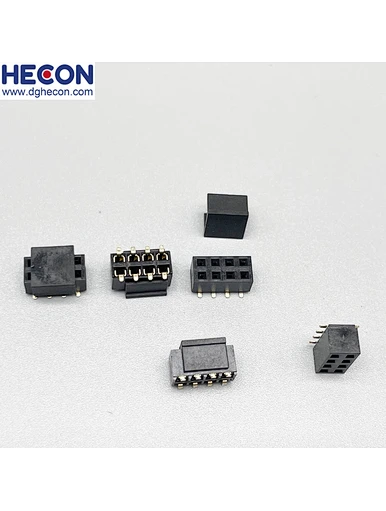

2.54mm Female header Dual Row SMT 2X04P
HC-FH450-02X04CNG0MUX01
EXW,FOB
500 pieces
500000pieces / Month
China
10-20Day
2.54mm Female Header H5.0 Dual Row SMT
Quantity
Series No.: HC-FH450-02X04CNG0MUX01
Description: 2.54mm Female Header H5.0 Dual Row SMT
Position: 2x04P
Type: SMT
Raw Material: PA6T
Contact Material: Brass
Package : PE Bag/ Tube /Tray /or Tape&Reel Packing
MOQ: 1K
Free samples:10pcs within 1 weeks.

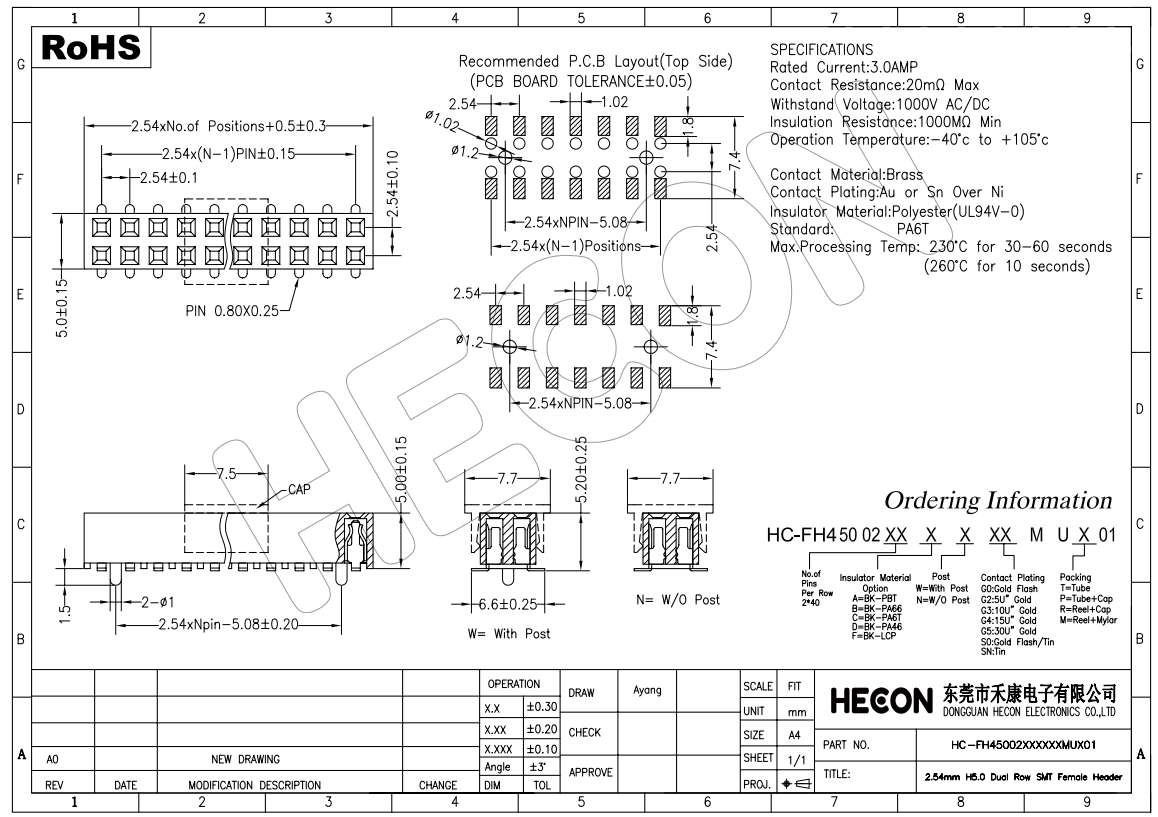

Specifications
Rated Current:3.0AMP
Contact Resistance: 20 mΩ Max
Withstand Voltage:1000V AC/DC
Insulation Resistance:1000mΩ Min
Operation Temperature: -40°c to +105°c
Max.Processing Temp: 230°c for 30-60 Seconds
260°c for 10 Seconds
We HECON has full complete standard connectors and special customized products service such as Pogo pin and Pogo pin connectors also wire harness cable assemblies series so we thoroughly implement the products one-stop shopping, high quality, high value, time saving.
