Series No.: HC-FH757-01XXCNG0MUX0X

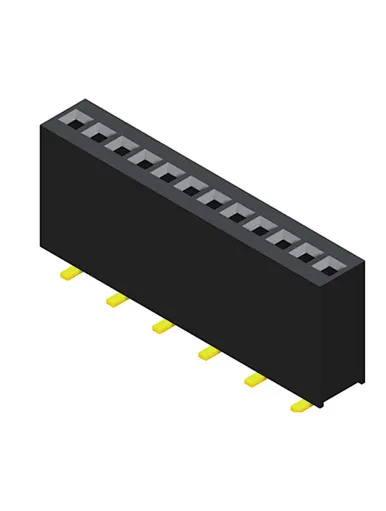

Description: 1.27mm Female Header H5.7 Single Row SMT

Position: 1x02P TO 1X50P

Type: SMT

Raw Material: PA6T

Contact Material: Phosphor Bronze

Specifications

Rated Current:1.0AMP

Contact Resistance: 20 mΩ Max

Withstand Voltage:500V AC/DC

Insulation Resistance:1000mΩ Min

Operation Temperature: -40°c to +105°c

Max.Processing Temp: 230°c for 30-60 Seconds

                                     260°c for 10 Seconds

Package : PE Bag/ Tube /Tray /or Tape&Reel Packing

MOQ: 1K

Free samples:10pcs within 1 weeks.

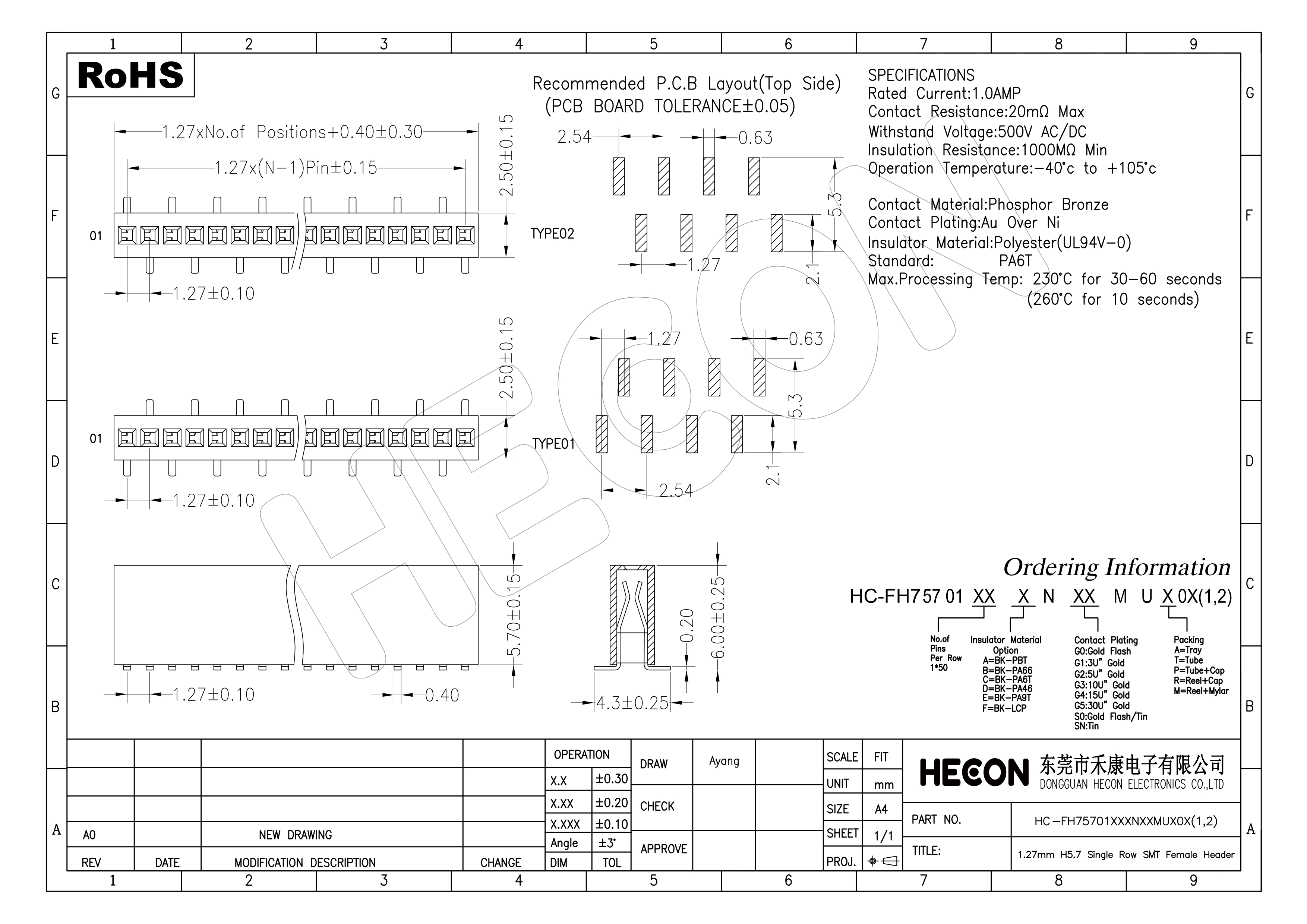

Drawings Details：
