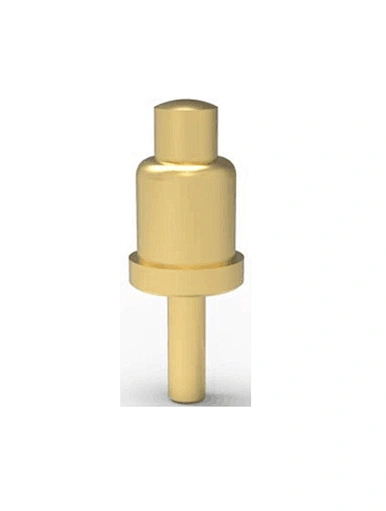

Part Number: HC-PGP-B-026-1.5-1-XX-XX-X


Description: Dip Type Pogo pin for 2.00mm Pogo Pin Connectors


Pin Length: 2.6mm to 2.8mm


Samples lead time: 1 week.

Mass Production Delivery date :2weeks confirmed order.


Customized POGO PIN Warmly welcome W/LOW MOQ.

Material

Plunger: Brass 3604

Barrel : Brass 3604

Spring: SUS304

Mechanical Performance:


Spring Force: 70±20g or Customized


Working Stroke: 0.7mm or Customized


Mechanical Life:100,000 cycles

Electrical Performance


Rated current:1A


Voltage:5-36V


Contact Resistance:50 mΩ Max

Environment Performance


Operating Temp:-40℃ to +105℃


Resistance to solder heat:260℃±5℃  20s±2s


Salt Spray:48H

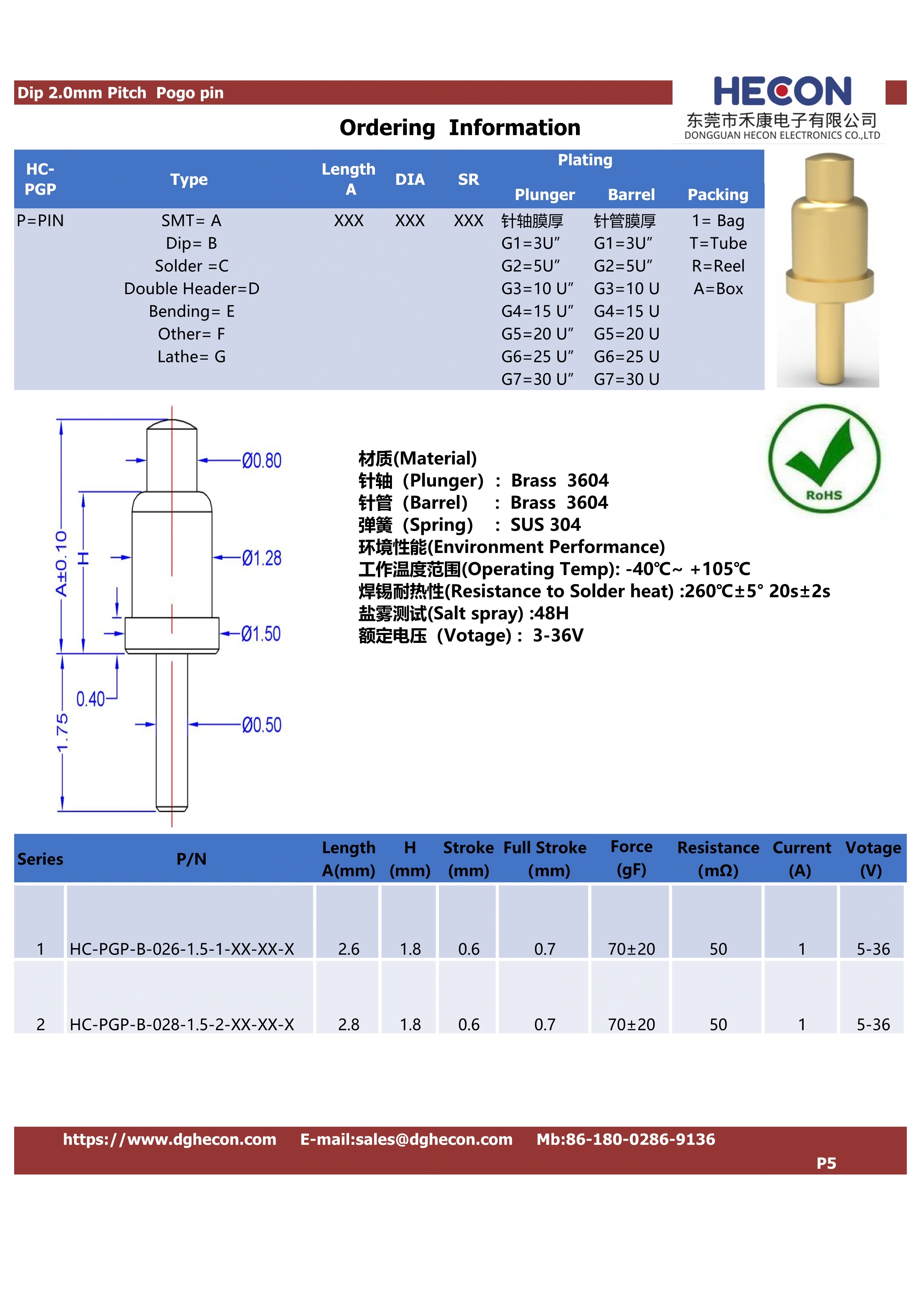

Drawings Details:
