D-Sub Male Soldering Type
HC-6235M-XXSG0W01
EXW,FOB
500 pieces
500000pieces / Month
China
15Day
Custom solution manufacturer of wire harness cable &PCB Connectors
Meet One -Stop -Sourcing and save your time and Cost
LOW MOQ | 10 days delivery time | OEM/ODM service
Operating under ISO 9001:2000 Standards
Meet One -Stop -Sourcing and save your time and Cost
LOW MOQ | 10 days delivery time | OEM/ODM service
Operating under ISO 9001:2000 Standards
Quantity
Part No. :HC-6235M-XXSG0W01

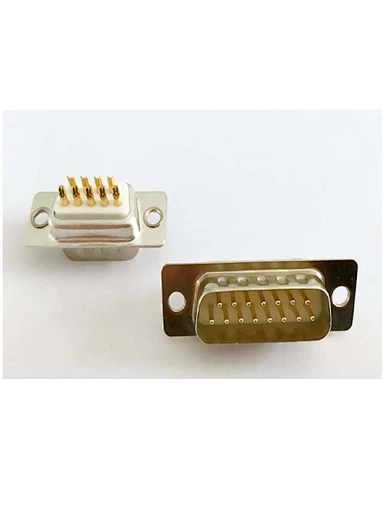

Product name: D-sub Male Soldering Type
Position: 09P 15P 25P 37P
SPECIFICATIONS:
Rated current: 5.0 AMPS
RATED VOLTAGE: 1000V
Contact Resistance: 30mΩ max
SIeeve: PBT
Contact Material: Brass
Operating temperature: -55°C to 105°C
Contact Plating: Gold Flash
Insulation resistance: 5000MEGAOHMS MIN.
Free Samples :5-10pcs with 1 week
Packing: Tray
Delivery time: 20~25 Day
ROHS Compliant

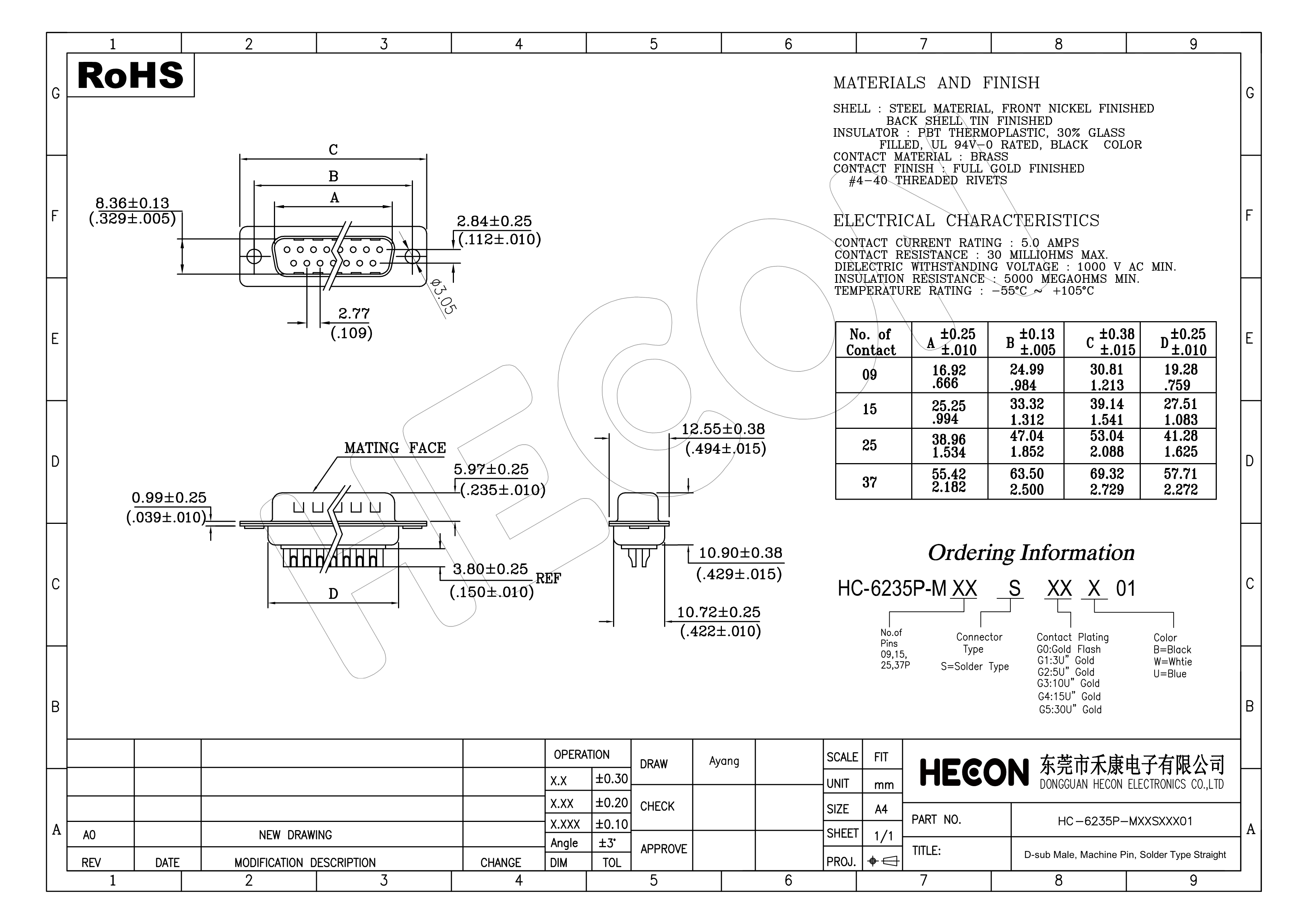

Drawings Details：
We DONGGUAN HECON ELECTRONICS CO.,LTD has full complete standard connectors and special customized products service such as D-sub Connector, USB Type- C, Pogo pin and Pogo pin connectors also wire harness cable assemblies series so we thoroughly implement the products one-stop shopping, high quality, high value, time saving.
