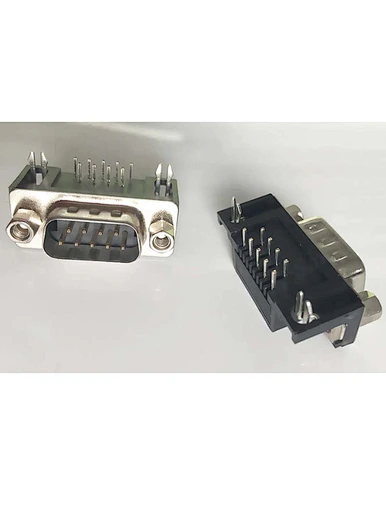

D-Sub Male Righ Angle With harpoon screw Type
D-Sub Male Righ Angle With harpoon screw Type
HC-6236-6XXMRS0B01
EXW,FOB
500 pieces
500000pieces / Month
China
15Day
Custom solution manufacturer of wire harness cable &PCB Connectors
Meet One -Stop -Sourcing and save your time and Cost
LOW MOQ | 10 days delivery time | OEM/ODM service
Operating under ISO 9001:2000 Standards
Quantity

Part No. : HC-6236-6XXMRS0B01


Product name: D-Sub Male Righ Angle With harpoon screw Type



Position:  09P 15P 25P 37P



SPECIFICATIONS:


Rated current: 5.0 AMPS


RATED VOLTAGE: 1000V


Contact Resistance:  30mΩ max


SIeeve: PBT


Contact Material: Brass


Operating temperature: -55°C to 125°C


Contact Plating: Gold Flash


Insulation resistance: 5000MEGAOHMS MIN.



Free Samples :5-10pcs with 1 week


Packing: Tray



Delivery time: 20~25 Day



ROHS Compliant

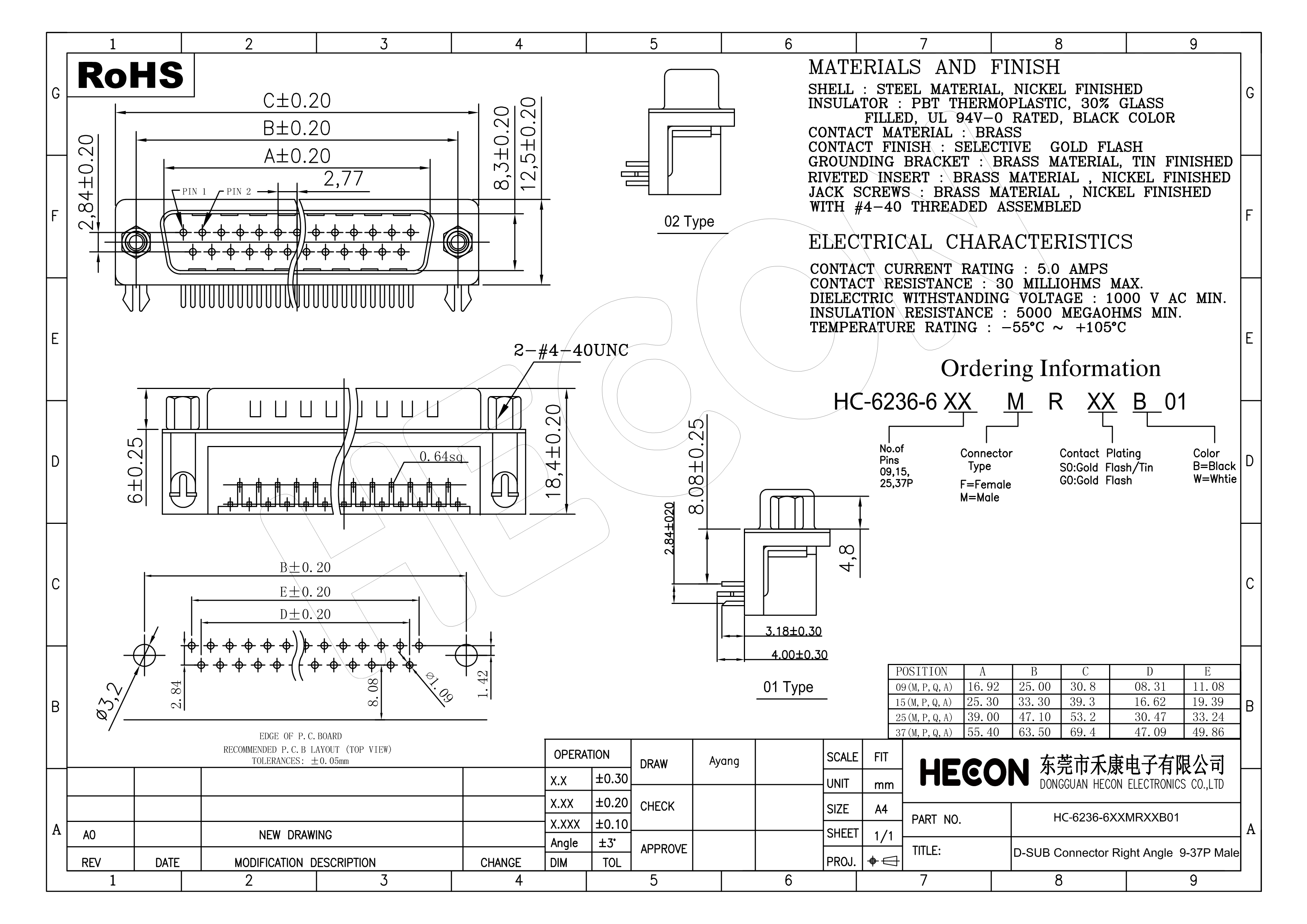

Drawings Details：



We DONGGUAN HECON ELECTRONICS CO.,LTD has full complete standard connectors and special customized products service such as D-sub connector, USB Type- C, Pogo pin and Pogo pin connectors also wire harness cable assemblies series so we thoroughly implement the products one-stop shopping, high quality, high value, time saving.
