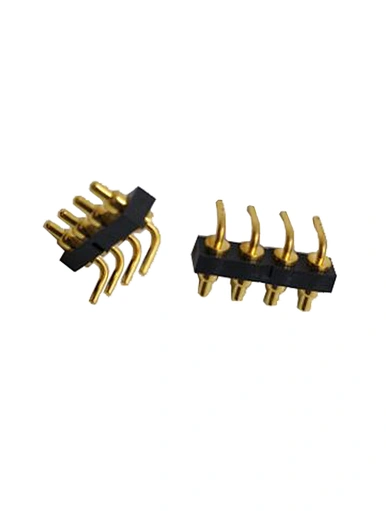

Bending 2.54mm Pitch 1 Row Pogo Pin Connector & Custom Working Stroke
Bending 2.54mm Pitch 1 Row Pogo Pin Connector & Custom Working Stroke
HC-PGC-E2.54-055-XX-11-XX-XX-X
EXW,FOB
500 pieces
500000pieces / Month
China
10-20Day
Custom solution manufacturer of wire harness cable &PCB Connectors
Meet One -Stop -Sourcing and save your time and Cost
LOW MOQ | 10 days delivery time | OEM/ODM service
Operating under ISO 9001:2000 Standards
Quantity

Part Number:HC-PGC-E2.54-055-XX-11-XX-XX-X


Description:Bending 2.54mm Pitch 1 Row pogo pin Connector


Pin Length: 5.5mm to 8.5mm



Material


Plunger: Brass


Barrel : Brass


Spring: SUS304



Mechanical Performance


Spring Force: 70±20g or Customized


Working Stroke: 1.4mm or Customized


Mechanical Life:100,000 cycles



Electrical Porformance


Rated current:1~3A


Voltage:3-36V


Contact Resistance:30 mΩ Max


Pin Way：1P-16P




Environment Performance


Operating Temp:-40℃ to +105℃


Resistance to solder heat:260℃±5℃  20s±2s


Salt Spray:48H



Samples lead time: 1 week.

Mass Production Delivery date :2weeks confirmed order.


Customized POGO PIN Warmly welcome W/LOW MOQ.

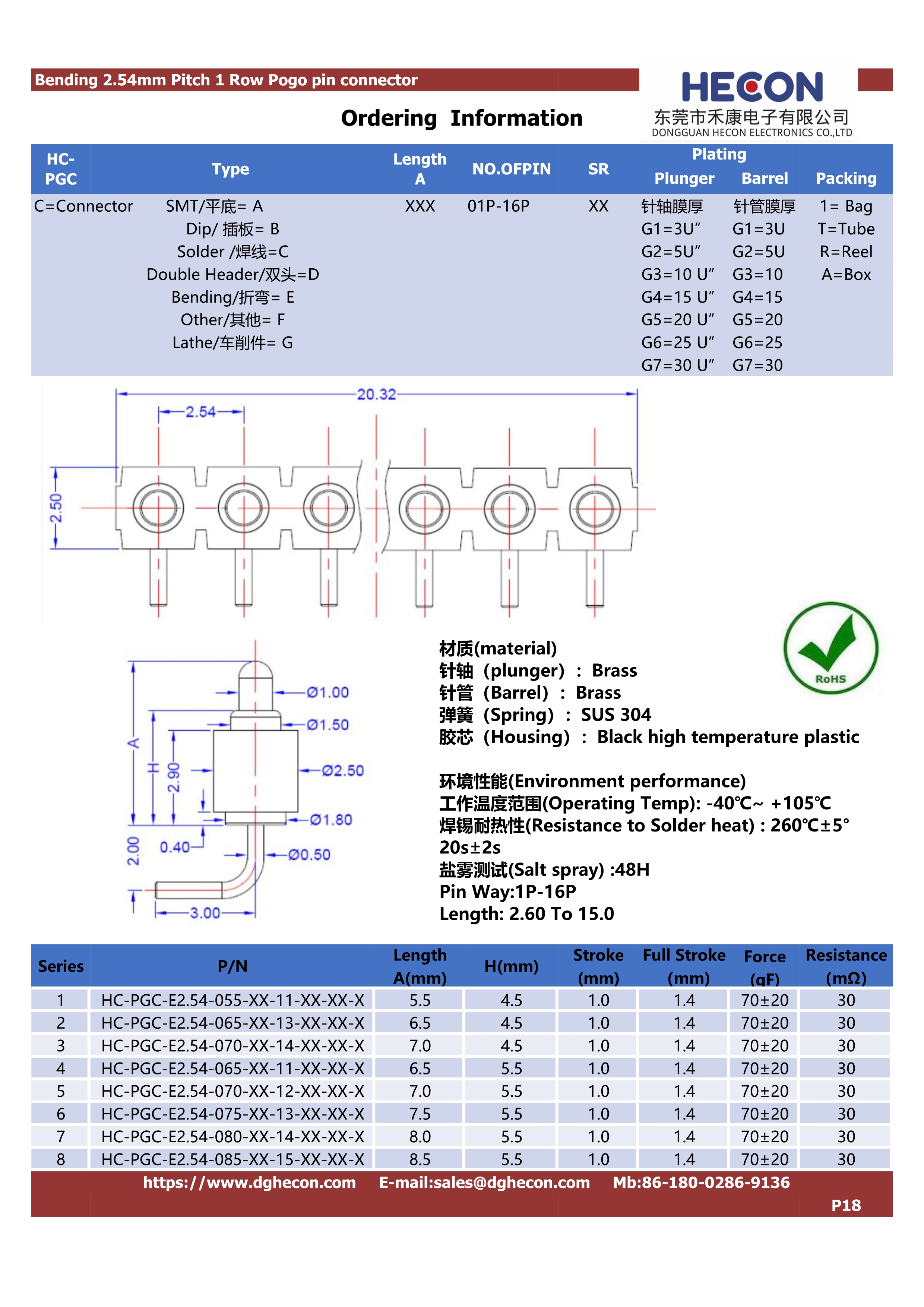

Drawings Details：
