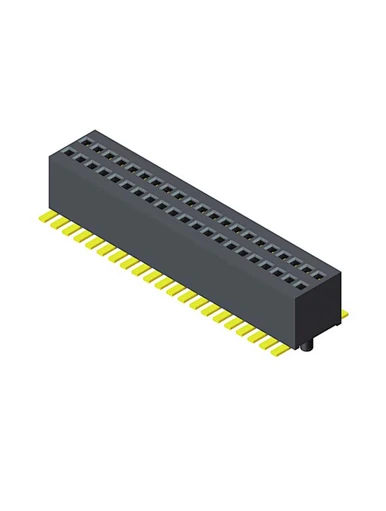

Pitch 0.8mm 02P-40P Female Header Connector SMT Type
HC-FH931-02XXCXG0MUX01
EXW,FOB
500 pieces
500000pieces / Month
China
10-20Day
0.8mm Pitch Dual Row Female Header - PCB Connectors Manufacturer in China
Quantity
Series No.: HC-FH931-02XXCXG0MUX01
Description:0.8mm Female Header H3.1 Dual Row SMT
Position: 2x02P To 2x50P
Type: SMT
Raw Material: PA6T
Contact Material: Phosphor Bronze
Specifications
Rated Current:0.75AMP
Contact Resistance: 30 mΩ Max
Withstand Voltage:500V AC/DC
Insulation Resistance:1000mΩ Min
Operation Temperature: -40°c to +105°c
Max.Processing Temp: 230°c for 30-60 Seconds
260°c for 10 Seconds
Package : PE Bag/ Tube /Tray /or Tape&Reel Packing
MOQ: 1K
Free samples:10pcs within 1 weeks.

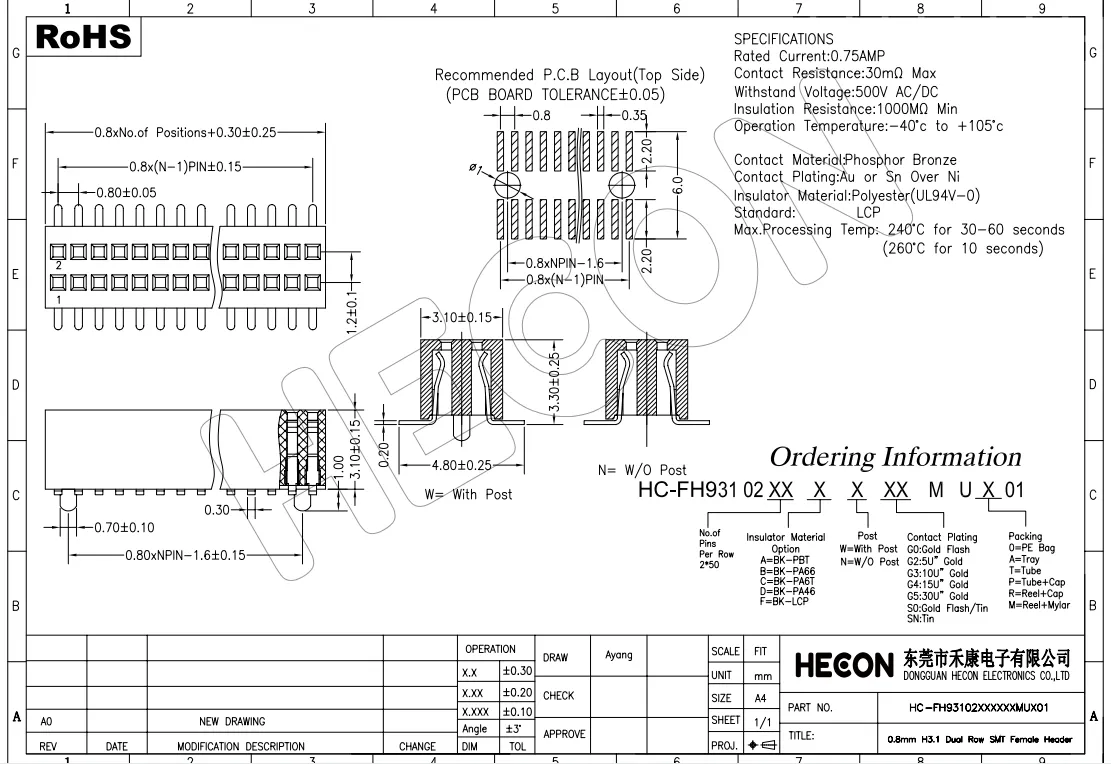

Drawings Details：
