5.08mm female header H8.89 single row 1x03P
HC-FH289-0103FNG0SUX01
EXW,FOB
500 pieces
500000pieces / Month
China
10-20Day

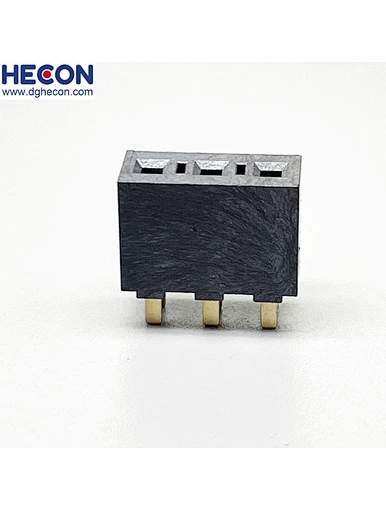

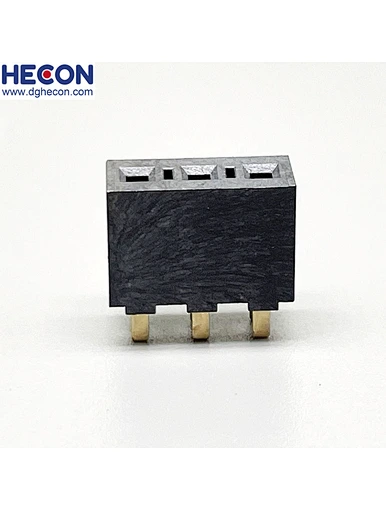

5.08mm female header H8.89 Single Row 1x03P
Quantity
Series No.: HC-FH289-0103FNG0SUX01
Description: 5.08mm Female Header H8.89 Single Row Straight
Position: 1x03P
Type: Straight
Raw Material: PA6T
Contact Material: Brass
Package : PE Bag/ Tube /Tray /or Tape&Reel Packing
MOQ: 1K
Free samples:10pcs within 1 weeks.

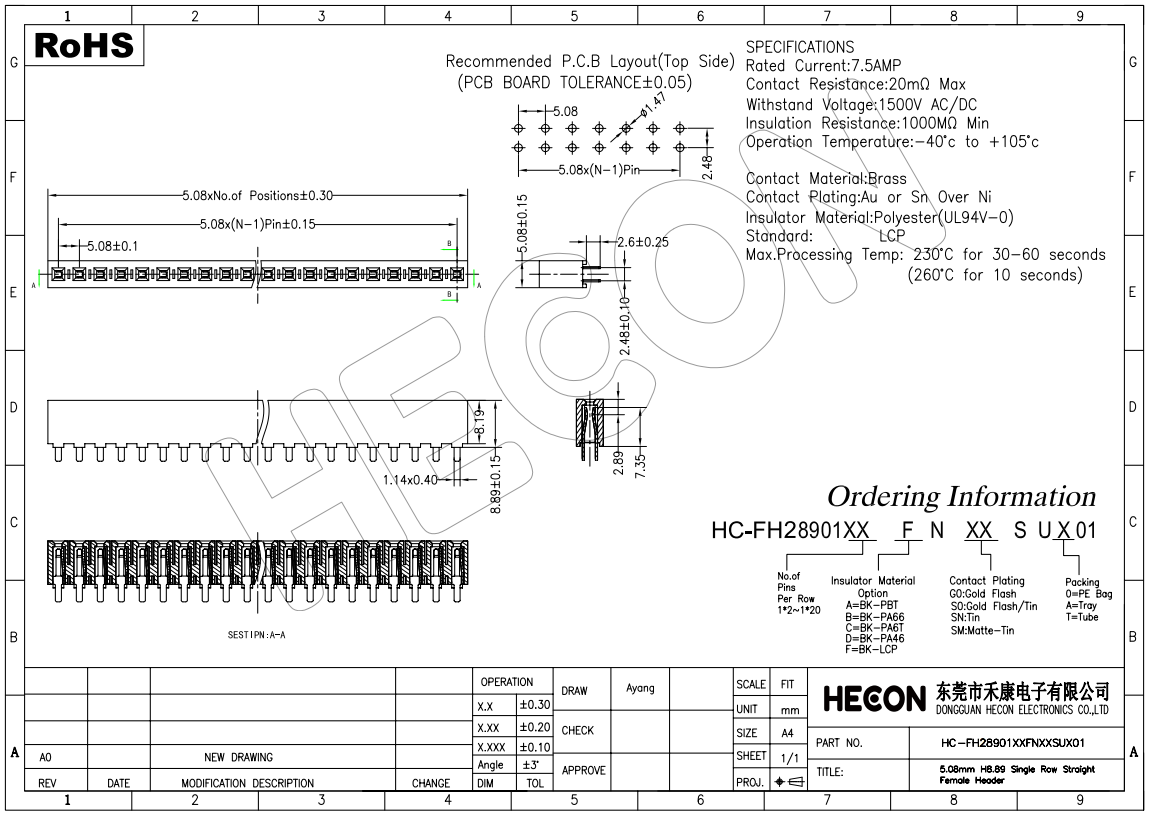

Specifications
Rated Current:7.5AMP
Contact Resistance: 20 mΩ Max
Withstand Voltage:1500V AC/DC
Insulation Resistance:1000mΩ Min
Operation Temperature: -40°c to +105°c
Max.Processing Temp: 230°c for 30-60 Seconds
260°c for 10 Seconds
We HECON has full complete standard connectors and special customized products service such as Pogo pin and Pogo pin connectors also wire harness cable assemblies series so we thoroughly implement the products one-stop shopping, high quality, high value, time saving.
