Series No.: HC-4DIN41612-XXAFSXXBNA01

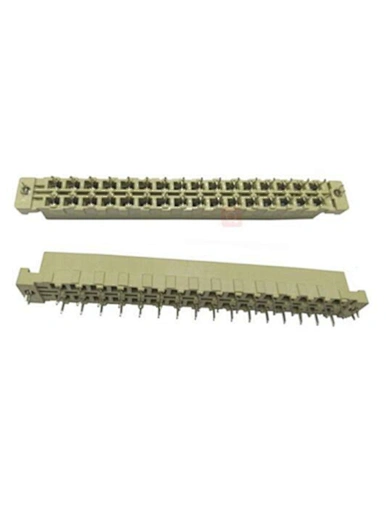

Description:5.08mm DIN41612 Straight 32P Female
Position: 32P
Type: Straight
Specifications:
Raw Material: PBT-UL94V-0
Contact Material: Phosphor Bronze
Rated Current:6.0AMP
Contact Resistance: 20mΩ Max
Withstand Voltage:1000V AC/DC
Insulation Resistance:1000mΩ Min
Operation Temperature: -40°c to +105°c
Max.Processing Temp: 230°c for 30-60 Seconds
260°c for 10 Seconds
Package : PE Bag/ Tube /Tray or Tape&Reel Packing
MOQ: 1K
Free samples:10pcs within 1 weeks.

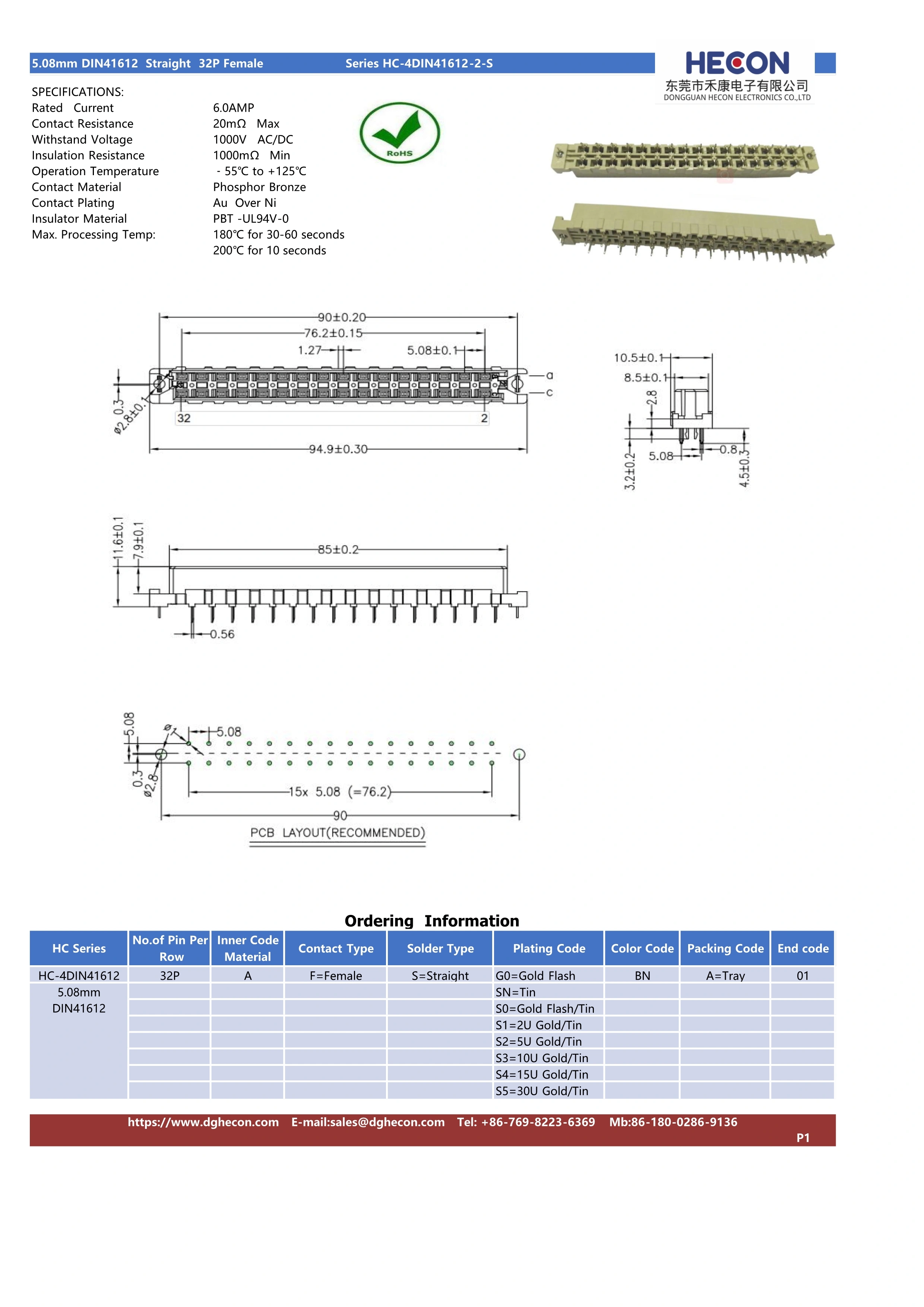

Drawings Details：
