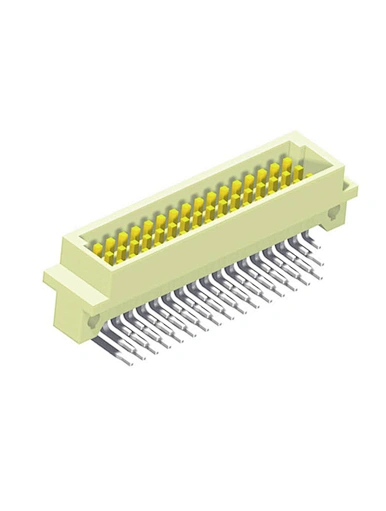

5.08mm DIN41612 large current Right Angle 90 Degree 48P Male
5.08mm DIN41612 large current Right Angle 90 Degree 48P Male
HC-4DIN41612-XXAMRXX-BNA01
EXW,FOB
500 pieces
500000pieces / Month
China
10-20Day
Custom solution manufacturer of wire harness cable &PCB Connectors
Meet One -Stop -Sourcing and save your time and Cost
LOW MOQ | 10 days delivery time | OEM/ODM service
Operating under ISO 9001:2000 Standards
Quantity

5.08mm DIN41612 48pin


Series No.: HC-4DIN41612-XXAMRXXBNA01


Description:5.08mm DIN41612 Right Angle 48P Male


Position: 48P


Type: Right Angle


Specifications:

Raw Material: PBT-UL94V-0


Contact Material: Phosphor Bronze


Rated Current:5.6AMP


Contact Resistance: 20mΩ  Max


Withstand Voltage:1000V AC/DC


Insulation Resistance:100000mΩ Min


Operation Temperature: -40°c to +105°c


Max.Processing Temp: 230°c for 30-60 Seconds

                                     260°c for 10 Seconds



Package : PE Bag/ Tube /Tray or Tape&Reel Packing


MOQ: 1K


Free samples:10pcs within 1 weeks.

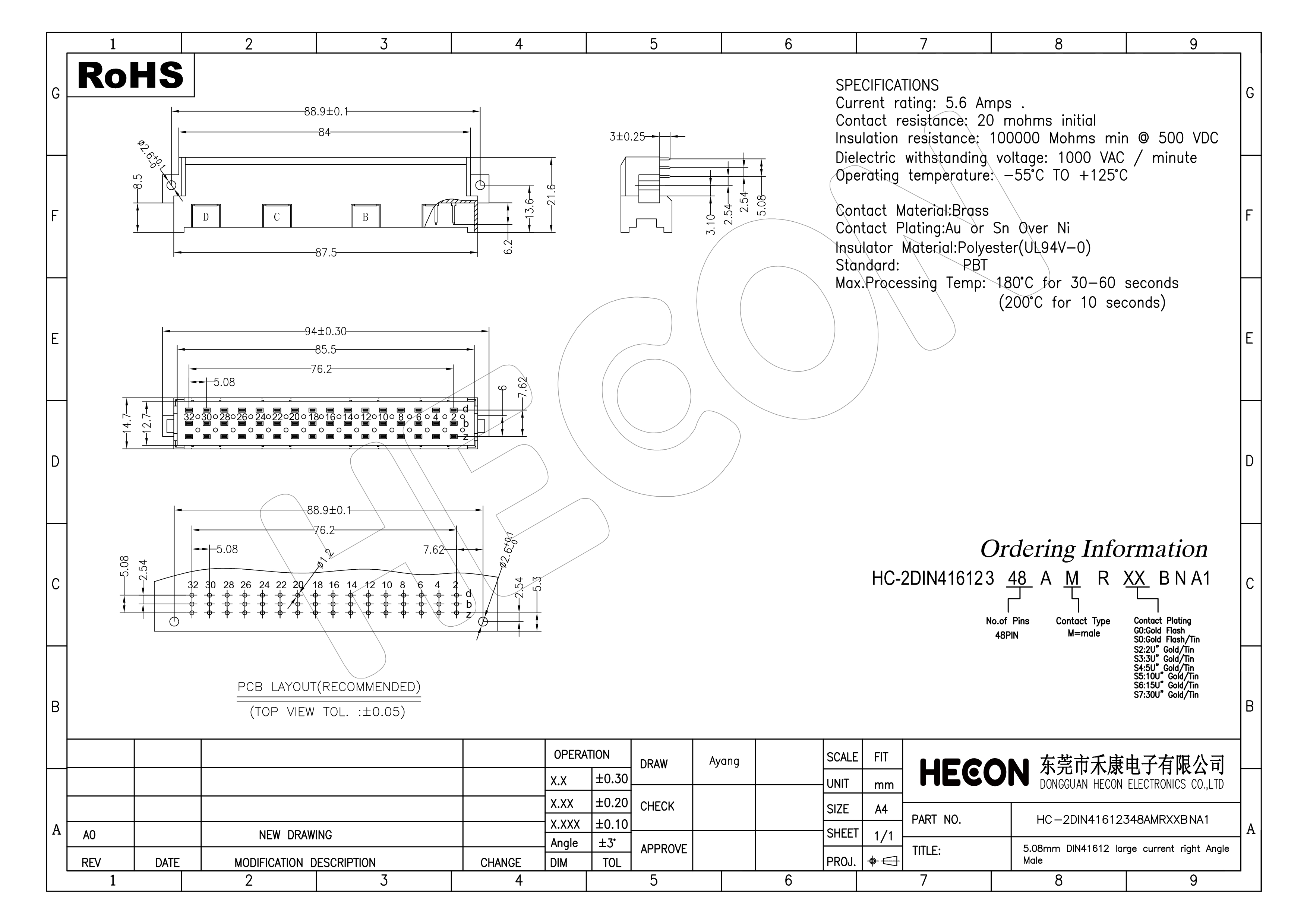

Drawings Details：


We HECON has full complete standard connectors and special customized products service such as Eurocard Connector and Pogo pin and Pogo pin connectors also wire harness cable assemblies series so we thoroughly implement the products one-stop shopping, high quality, high value, time saving.
