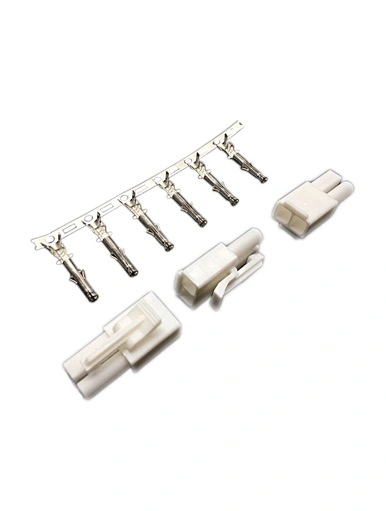

4.5mm Pitch Terminal Connector plastic wire housing 4501/4502 Connector series
HC-T4501PT-NP
EXW,FOB
100 pieces
300000pieces / Month
China
15-25DayDay
Custom solution manufacturer of wire harness cable &PCB Connectors
Meet One -Stop -Sourcing and save your time and Cost
LOW MOQ | 10 days delivery time | OEM/ODM service
Operating under ISO 9001:2000 Standards
Meet One -Stop -Sourcing and save your time and Cost
LOW MOQ | 10 days delivery time | OEM/ODM service
Operating under ISO 9001:2000 Standards
Quantity
Model Number :HC-T4501PT-NP
Product name : 4.5mm Pitch Terminal Connector plastic wire housing 4501/4502 Connector series
Pin:02-04P
Voltage rating ：300V AC, DC
Insulation resistance ：1000MΩ min
Temperature range：-25°C to +85°C
Withstanding Voltage ： 1500V AC/minute
Current rating ：7A, AC, DC
Sample ：10 Free samples with in 1 week
Delivery date ：2-3Weeks after confirm your order

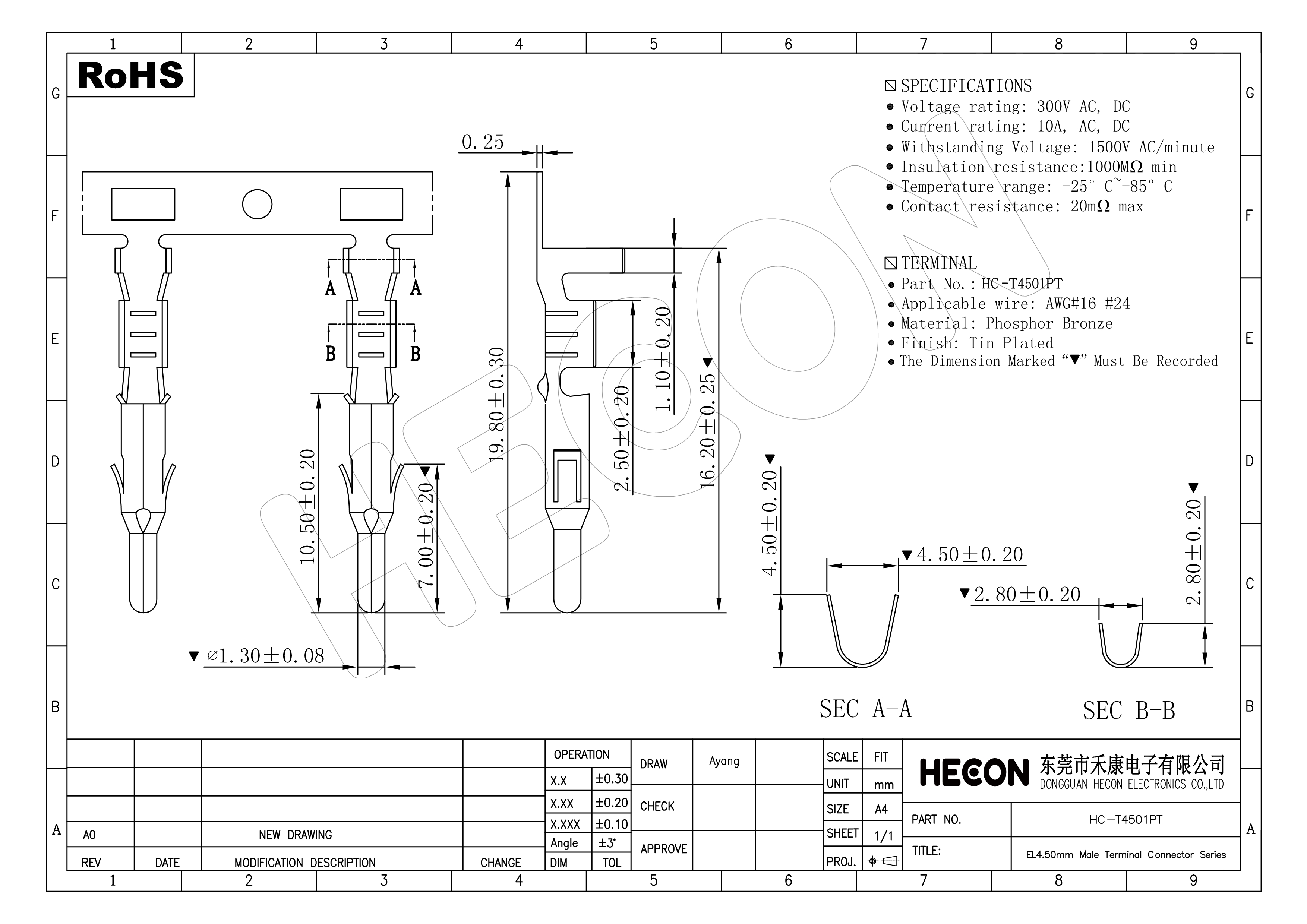

Drawings Details：
Product name : 4.5mm Pitch Terminal Connector plastic wire housing 4501/4502 Connector series
Pin:02-04P
Voltage rating ：300V AC, DC
Insulation resistance ：1000MΩ min
Temperature range：-25°C to +85°C
Withstanding Voltage ： 1500V AC/minute
Current rating ：7A, AC, DC
Sample ：10 Free samples with in 1 week
Delivery date ：2-3Weeks after confirm your order
Drawings Details：
We HECON has full complete standard connectors also special customized products service such as Pogo Pin, Pogo pin Connectors, Pin header, Female header, PCB Connectors and Wire Harness Cable& Cable Assemblies series so we thoroughly implement the products One-Stop-Shopping with High Quality, High Value, Time Saving.
