3.96mm Pitch Wafer Connector 90 Degree 1x07Pin white transparent Wafer Connector
HC-W3961R-NP-12
EXW,FOB
100 pieces
300000pieces / Month
China
15-25Day
Custom solution manufacturer of wire harness cable &PCB Connectors
Meet One -Stop -Sourcing and save your time and Cost
LOW MOQ | 10 days delivery time | OEM/ODM service
Operating under ISO 9001:2000 Standards
Meet One -Stop -Sourcing and save your time and Cost
LOW MOQ | 10 days delivery time | OEM/ODM service
Operating under ISO 9001:2000 Standards
Quantity
Model Number : HC-W3961R-NP
Product name : 3.96mm Pitch Wafer Connector 90 Degree 1x07 Pin white transparent Wafer Connector
Pin : 02-16P
Color : transparent
Contact Area Plating : Tin-Plated
Pin Material : Brass
Housing Material : Nylon66 UL94V-0
Contact resistance : 20mΩ max
Temperature range : -25°C~+85°C
Voltage rating ：250V AC, DC
Insulation resistance ：1000MΩ min
Withstanding Voltage ： 1500V AC/minute
Current rating ：7A, AC, DC
Sample ：10 Free samples with in 1 week
Delivery date ：2-3Weeks after confirm your order

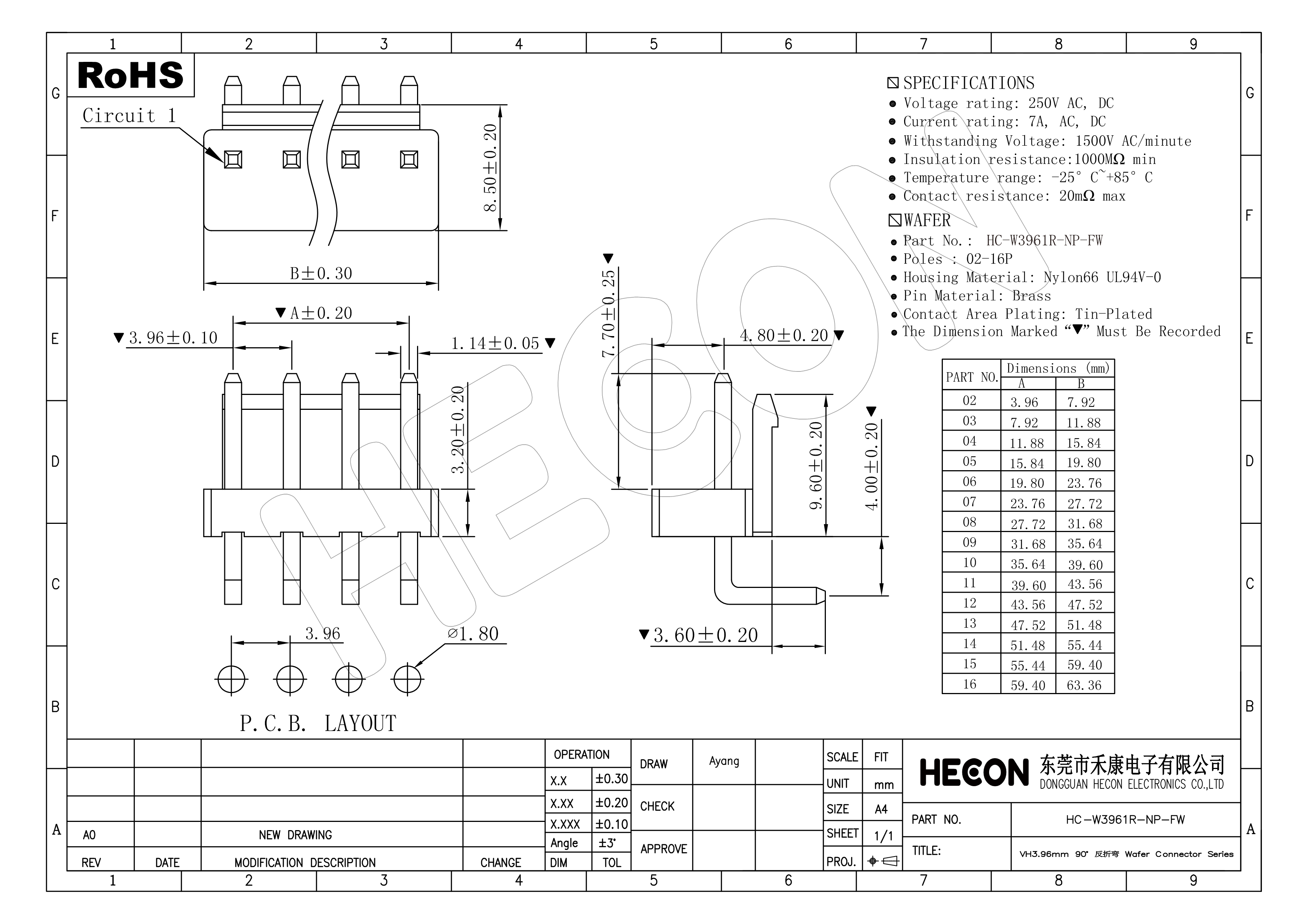

Drawings Details：
We HECON has full complete standard connectors also special customized products service such as Pogo Pin, Pogo pin Connectors, Pin header, Female header, PCB Connectors and Wire Harness Cable& Cable Assemblies series so we thoroughly implement the products One-Stop-Shopping with High Quality, High Value, Time Saving.Any Help or Inquiries Please Contact us sales@dghecon.comThank you!
Product name : 3.96mm Pitch Wafer Connector 90 Degree 1x07 Pin white transparent Wafer Connector
Pin : 02-16P
Color : transparent
Contact Area Plating : Tin-Plated
Pin Material : Brass
Housing Material : Nylon66 UL94V-0
Contact resistance : 20mΩ max
Temperature range : -25°C~+85°C
Voltage rating ：250V AC, DC
Insulation resistance ：1000MΩ min
Withstanding Voltage ： 1500V AC/minute
Current rating ：7A, AC, DC
Sample ：10 Free samples with in 1 week
Delivery date ：2-3Weeks after confirm your order
Drawings Details：
We HECON has full complete standard connectors also special customized products service such as Pogo Pin, Pogo pin Connectors, Pin header, Female header, PCB Connectors and Wire Harness Cable& Cable Assemblies series so we thoroughly implement the products One-Stop-Shopping with High Quality, High Value, Time Saving.Any Help or Inquiries Please Contact us sales@dghecon.comThank you!
