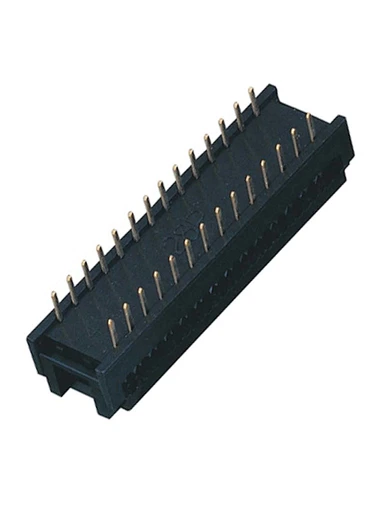

2.54x7.62mm Dip plug Connectors
2.54x7.62mm Dip plug Connectors
HC-DIP50-XXBXXAXT02
EXW,FOB
500 pieces
500000pieces / Month
China
15Day
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.
Quantity

Series No.: HC-DIP50-XXBXXAXT02

Description: 2.54x7.62mm Dip plug Connectors

Position: 08P To 40P

Type: Dip Connectors

Raw Material: PBT-UL94V-0

Contact Material: Brass

Package : PE Bag/ Tube /Tray or Tape&Reel Packing

MOQ: 1K

Free samples:10pcs within 1 weeks.

Specifications

Rated Current:1.0AMP

Contact Resistance: 1mΩ  Max

Withstand Voltage:500V AC/DC

Insulation Resistance:1000mΩ Min

Operation Temperature: -40°c to +105°c

Max.Processing Temp: 230°c for 30-60 Seconds

                                      260°c for 10 Seconds

We HECON has full complete standard connectors and special customized products service such as Pogo pin and Pogo pin connectors also wire harness cable assemblies series so we thoroughly implement the products one-stop shopping, high quality, high value, time saving.
