Part Number: HC-PGC-C2.54-095-05-12-G1-01

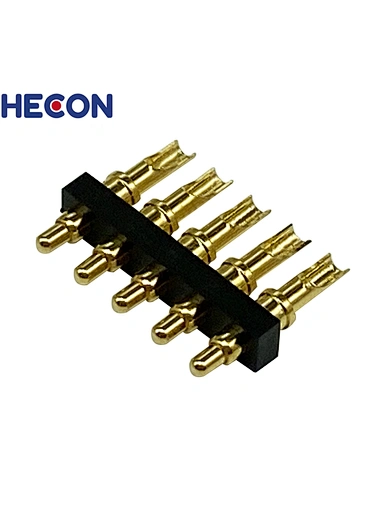

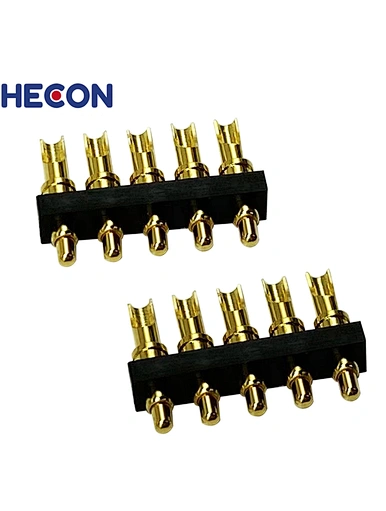

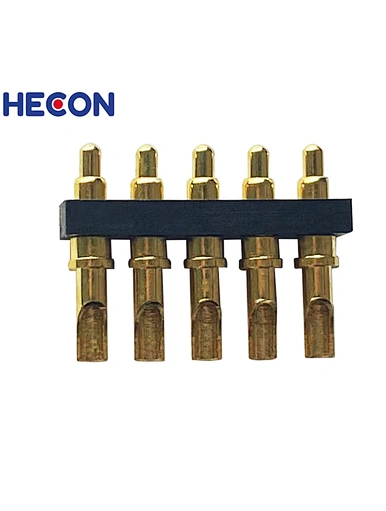

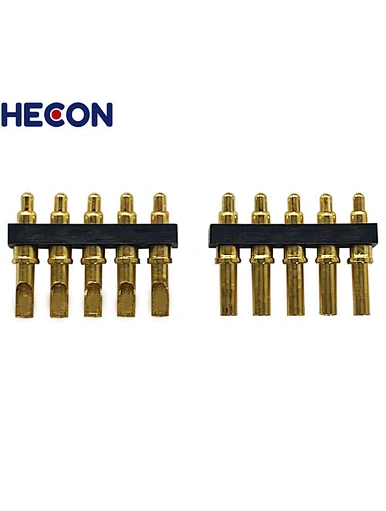

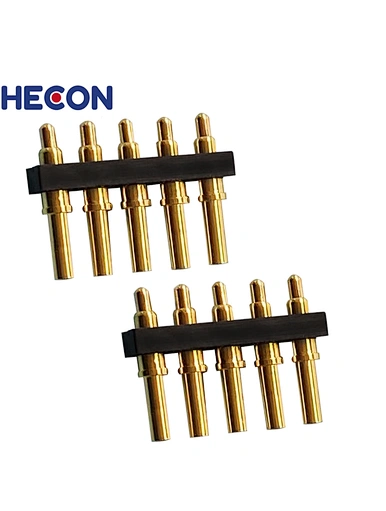

Description: 2.54mm Pitch Pogo Pin Connector Single Row 1x05Pin Solder Type 3u' Gold plated
Samples lead time: 1 week.
Mass Production Delivery date :2weeks confirmed order.
Customized POGO PIN Warmly welcome W/LOW MOQ.
Material
Plunger: Brass 3604
Barrel : Brass 3604
Spring: SUS304
Mechanical Performance
Spring Force: 70±15g or Customized
Working Stroke: 1.0mm or Customized
Mechanical Life:100,000 cycles
Electrical Porformance
Rated current : 1A
Voltage : DC30V
Contact Resistance : 100 mΩ Max
Pin Way：1P-12P
Environment Performance
Operating Temp : -55℃ to +125℃
Resistance to solder heat : 260℃±5℃ 20s±2s
Salt Spray : 48H

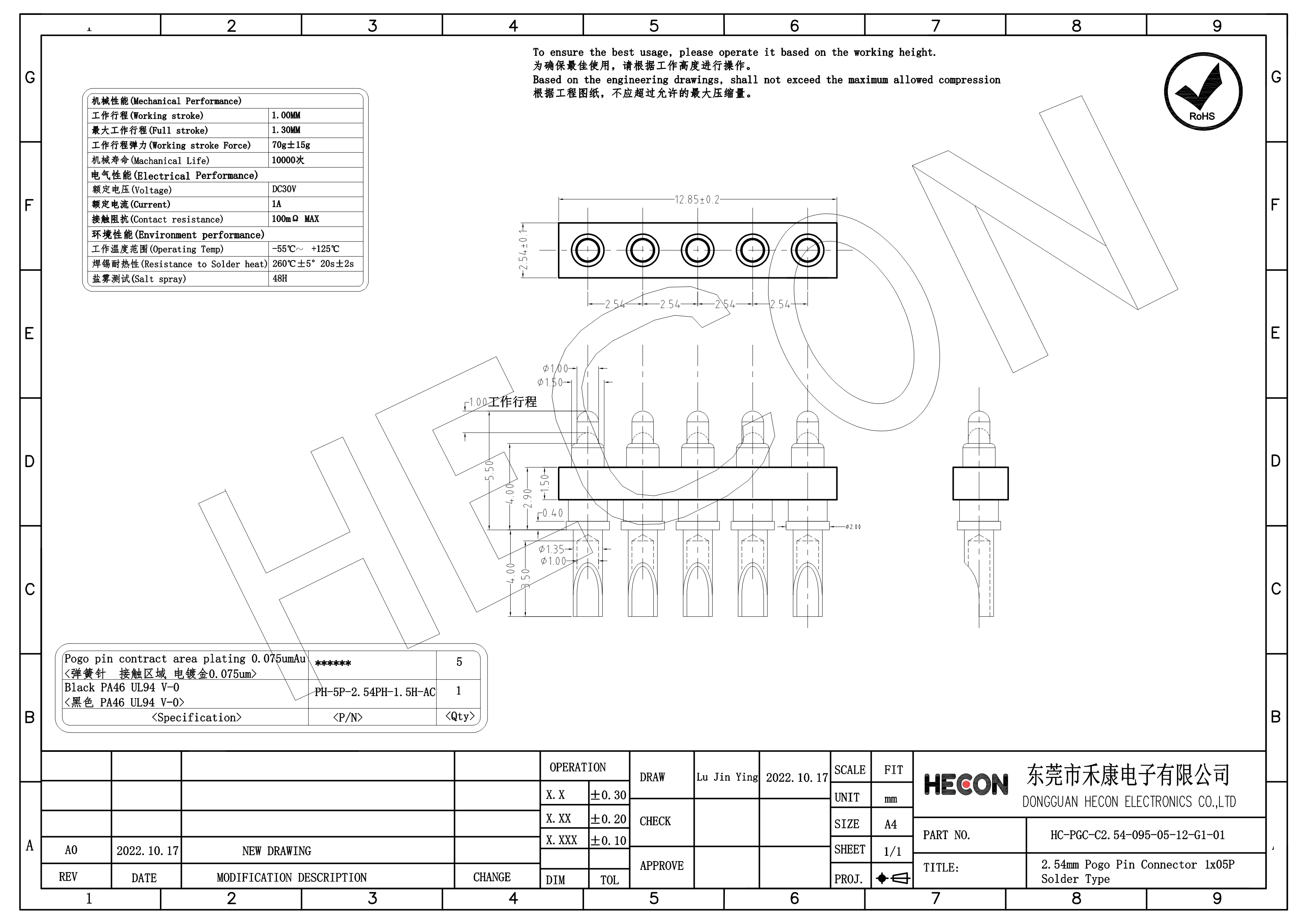

Drawings Details：
We HECON has full complete standard connectors also special customized products service such as POGO PIN, Pogo pin Connectors, Pin header, Female header, PCB Connectors and Wire Harness Cable& Cable Assemblies series so we thoroughly implement the products One-Stop-Shopping with High Quality, High Value, Time Saving.
