Part Number: HC-PGC-B2.54-026-10-G1-A

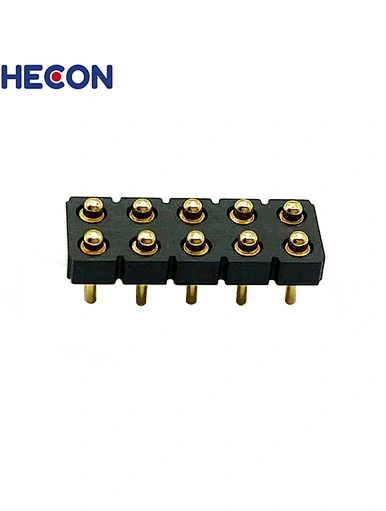

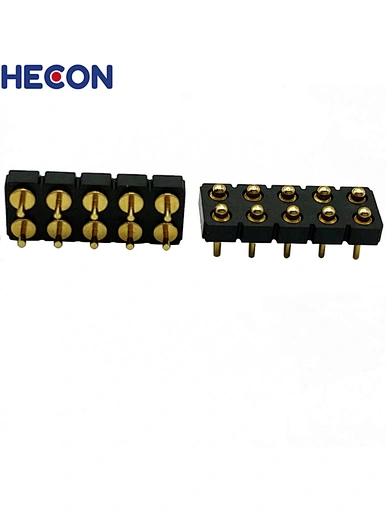

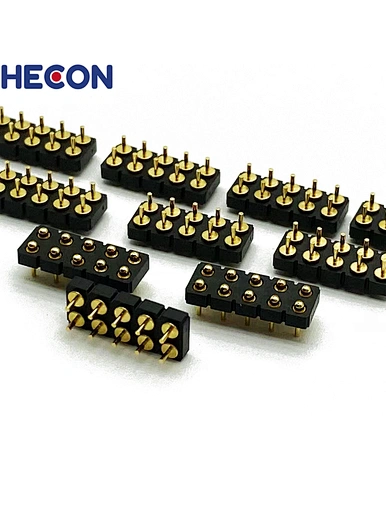

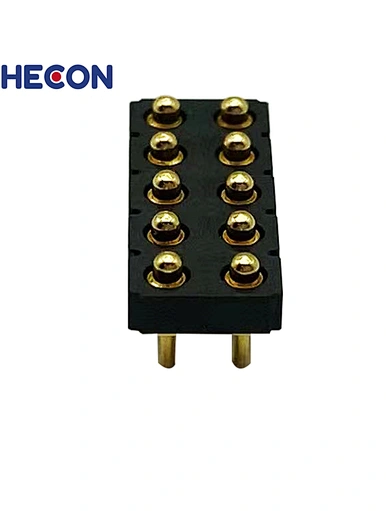

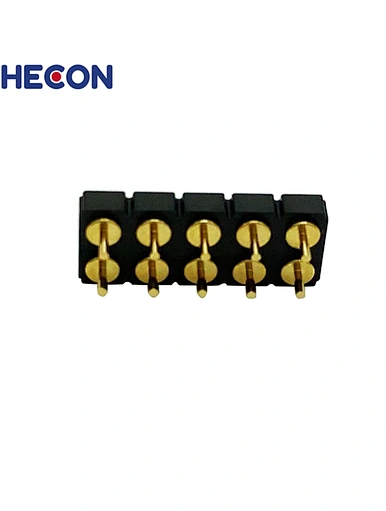

Description: 2.54mm Pogo Pin Connector Double row 2x05pin Straight Dip Type
Working Stroke: 0.6mm or Customized
Mechanical Life:200,000 cycles
Electrical Porformance
Rated current:1A
Voltage:12V
Contact Resistance:50 mΩ Max
Pin Way：05P
Environment Performance
Operating Temp:-40℃ to +105℃
Resistance to solder heat:260℃±5℃ 20s±2s
Salt Spray:48H
Samples lead time: 1 week.
Mass Production Delivery date :2weeks confirmed order.
Customized POGO PIN Warmly welcome W/LOW MOQ.

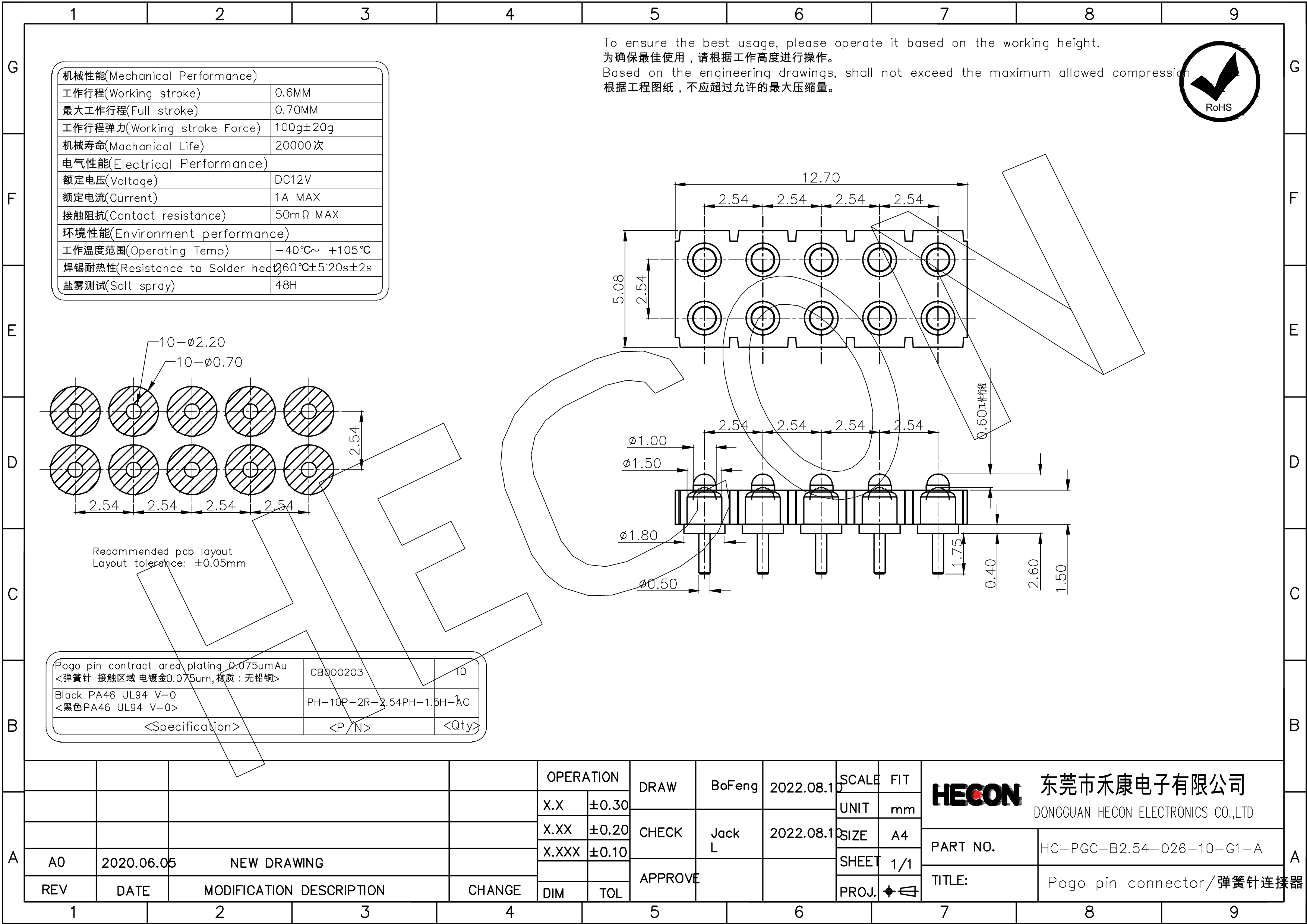

Drawings Details：
We HECON has full complete standard connectors also special customized products service such as Pogo Pin, Pogo pin Connectors and Wire Harness Cable& Cable Assemblies series so we thoroughly implement the products One-Stop-Shopping with High Quality, High Value, Time Saving.
