Series Number : HC-BTB25-M040290G0FT01

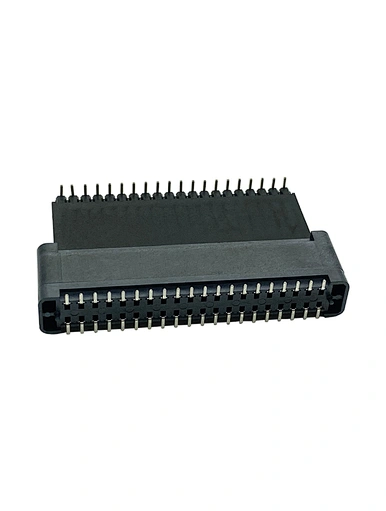

Description: 2.54mm Pitch Board to Board Connectors 40P Male H29.0 SMT
Position: 40P(2x20P)
Height：29.0
Type: SMT
Housing Material： LCP UL94V0
Contact Materi:: Brass
Packing way : Tube/Reel Packing
MOQ: 1K
Specifications&Performane
Rated Current： 250V DC/AC 3A
Withstand Voltage： 1000V AC/minute
Contact Resistance： 20mΩ Max
Insulation Resistance：500MΩ Min.
Operating Temperature：-40℃ ~ +105℃
Contact Material: Copper Alloy
Body Housing： LCP UL94V0
Max. Soldering Temperature：260℃±5℃ 5s

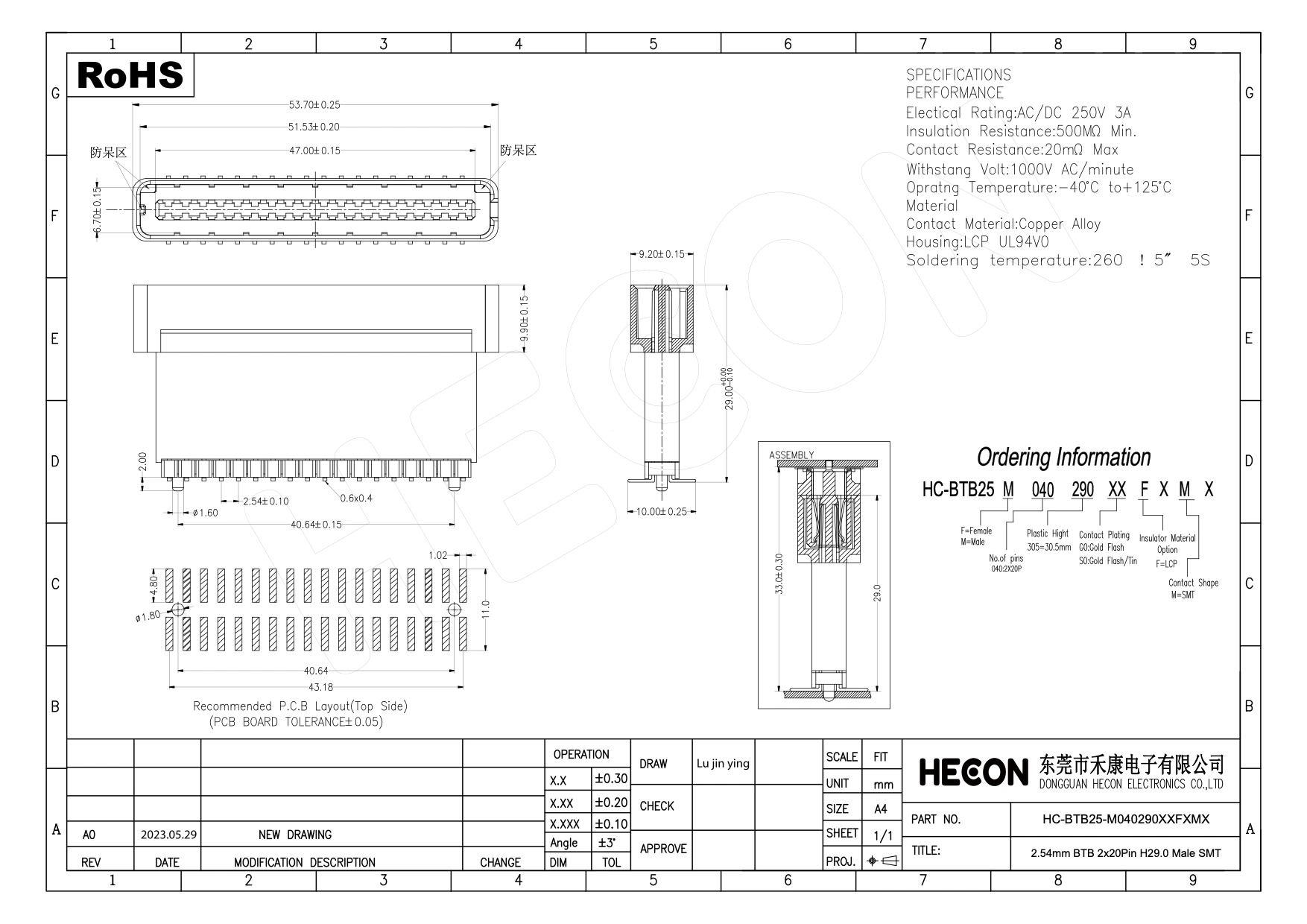

Drawings Details:
Dongguan Hecon Electronics Co., Ltd. can provide high-speed Display board to board connector, floating board to board connector, ordinary type board to board and other specifications of connectors & Cable Assemblies products and services.
Our Products Board To Baord connector main Pitch: 0.5 mm | 0.635 mm | 0.8 mm | 1.0 mm | 1.25 mm| 2.0mm | 2.54mm and more can be customized service for you!
