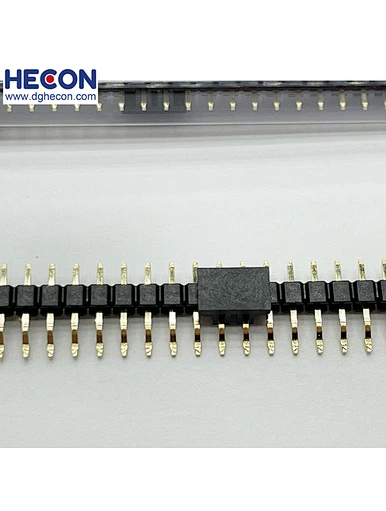

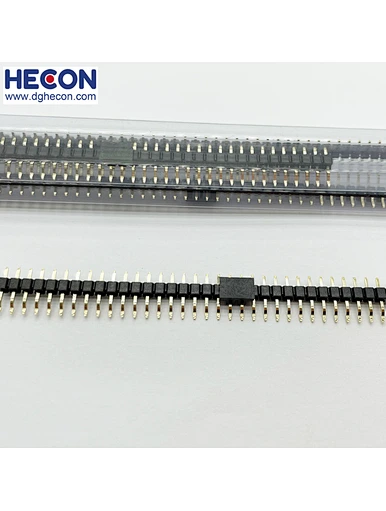

2.54mm Pin header H2.5 Single Row Right Angle SMT
2.54mm Pin header H2.5 Single Row Right Angle SMT
HC-PH425-1140CZG0N103P01
EXW
500 pieces
500000pieces / Month
China
10-20Day
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.
Quantity

2.54mm Pin Header H2.5 Single Row SMT



Series No.:HC-PH425-1140CZG0N103P01



Description: 2.54mm Pin header H2.5 Single Row Right Angle SMT



Customized size: PA/PB/D Accepted



Position:  1x40P



Type:  Right Angle SMT



Raw Material: PA6T



Contact Material: Brass



Specifications



Rated Current:1.0AMP



Contact Resistance: 20mΩ  Max



Withstand Voltage:500V AC/DC



Insulation Resistance:1000mΩ Min



Operation Temperature: -40°c to +105°c



Contact Plating：Au or Sn Over Ni



Insulator Material:Polyester(UL94V-0)



Max.Processing Temp: 230°c for 30-60 Seconds


                                     260°c for 10 Seconds



Package : PE Bag /Tube/Reel Packing



MOQ: 1K



Free samples:10pcs within 1 weeks.

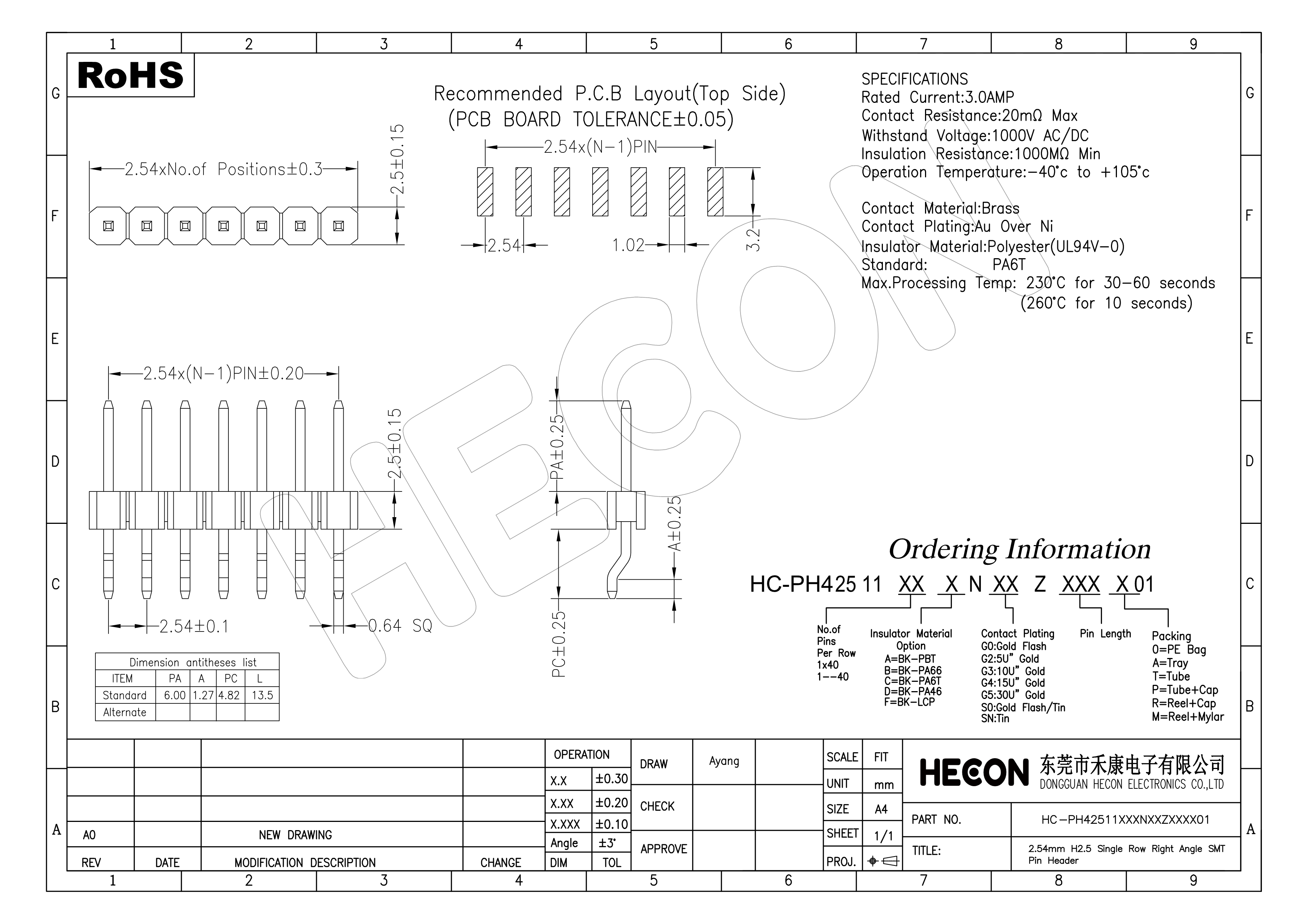

 Drawings Details：



We DONGGUAN HECON ELECTRONICS CO.,LTD has full complete standard connectors and special customized products service such as  Pin header , Female header, Box Header, Ejector Header, IDC , Dip Plug, USB Type- C, RJ11, Pogo pin and Pogo pin connectors also wire harness cable assemblies series & ECG Cable, EKG Cable, USB Cable, IDC Flat Cable,FFC Cable so we thoroughly implement the products one-stop shopping, high quality, high value, time saving.
