2.54mm Pin Header-Dual Row SMT-Connector|HECON

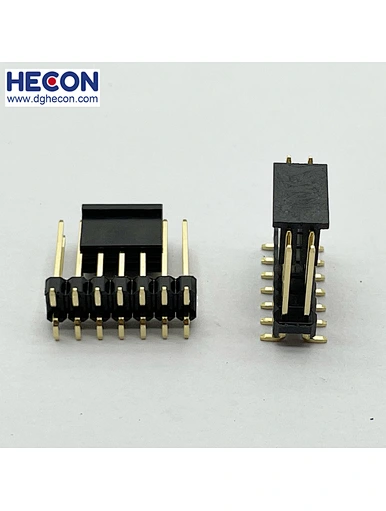

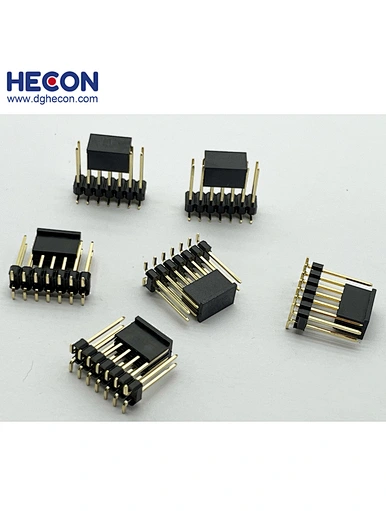

2.54mm Pin header H2.5 Dual Row SMT

Model NO. HC-PH425-1207CMG0N178P01

Delivery EXW

Minimum order quantity 500 pieces

Supply Ability 500000pieces / Month

Country of Origin China

Stock Time 10-20Day

We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

Quantity

2.54mm Pin header H2.5 Dual Row SMT

Series No.:HC-PH425-1207CMG0N178P01

Description: 2.54mm Pin header H2.5 Dual Row SMT

Customized size: PA/PB/D Accepted

Position: 2x07P

Type: SMT

Raw Material: PA6T

Contact Material: Brass

Specifications

Rated Current:1.0AMP

Contact Resistance: 20mΩ Max

Withstand Voltage:500V AC/DC

Insulation Resistance:1000mΩ Min

Operation Temperature: -40°c to +105°c

Contact Plating：Au or Sn Over Ni

Insulator Material:Polyester(UL94V-0)

Max.Processing Temp: 230°c for 30-60 Seconds

260°c for 10 Seconds

Package : PE Bag /Tube/Reel Packing

MOQ: 1K

Free samples:10pcs within 1 weeks.

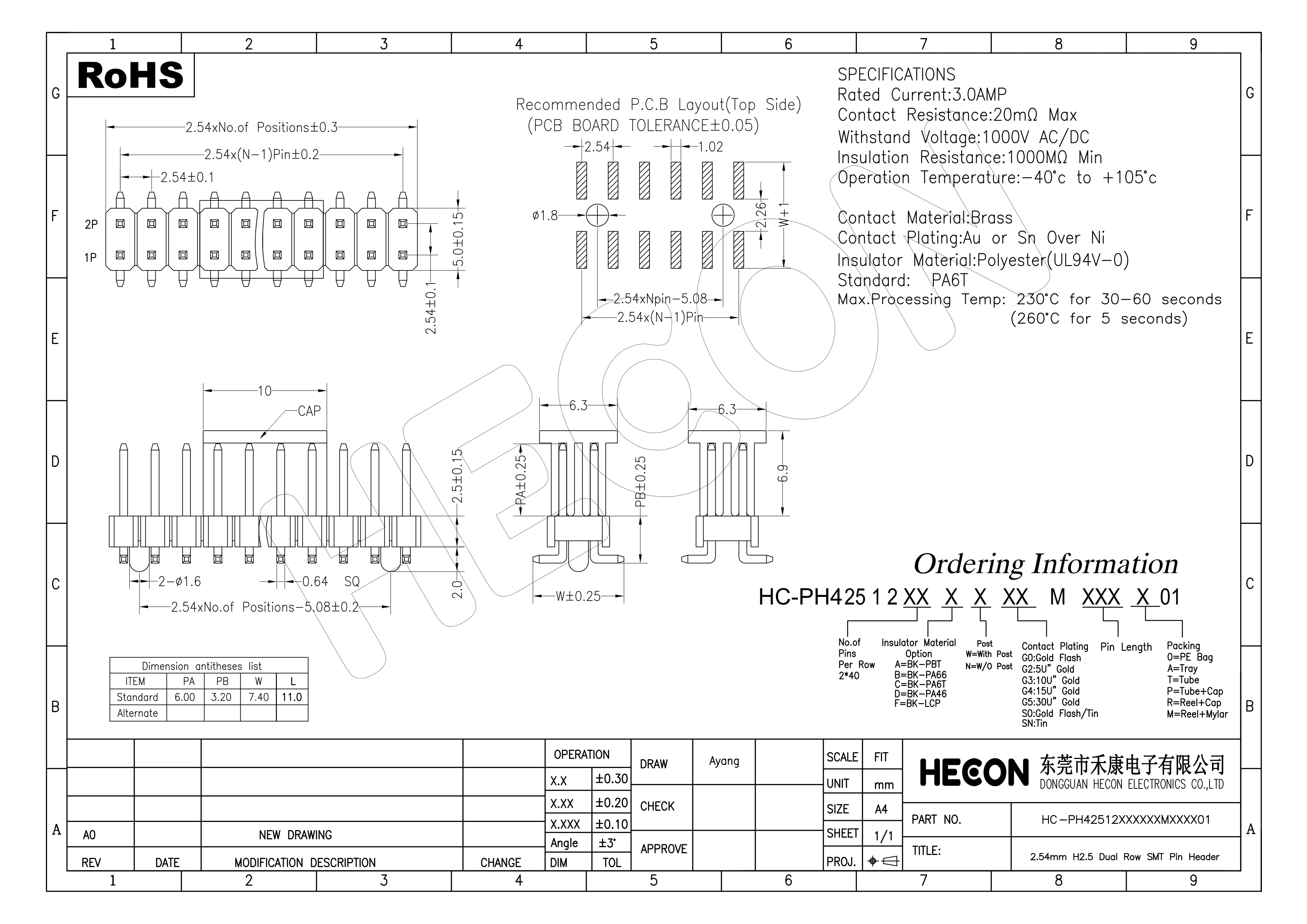

Drawings Details：
