Series No.: HC-PH417-22XXXNXXMXXXX02

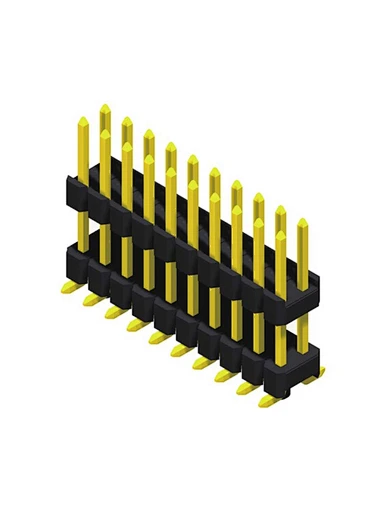

Description: 2.54mm Pin Header H1.7 Dual Row 2 Bodies opposite SMT Type
Customized size: PA/PB/D Accepted
Position: 2x02P TO 2x50P
Type: SMT
Raw Material: PA6T
Contact Material: Brass
Specifications
Rated Current:3.0 AMP
Contact Resistance: 20mΩ Max
Withstand Voltage:1000V AC/DC
Insulation Resistance:1000mΩ Min
Operation Temperature: -40°c to +105°c
Contact Plating：Au Over Ni
Insulator Material:Polyester(UL94V-0)
Max.Processing Temp: 230°c for 30-60 Seconds
260°c for 10 Seconds
Package : PE Bag/ Tube or Tape&Reel Packing
MOQ: 1K
Free samples:10pcs within 1 weeks.

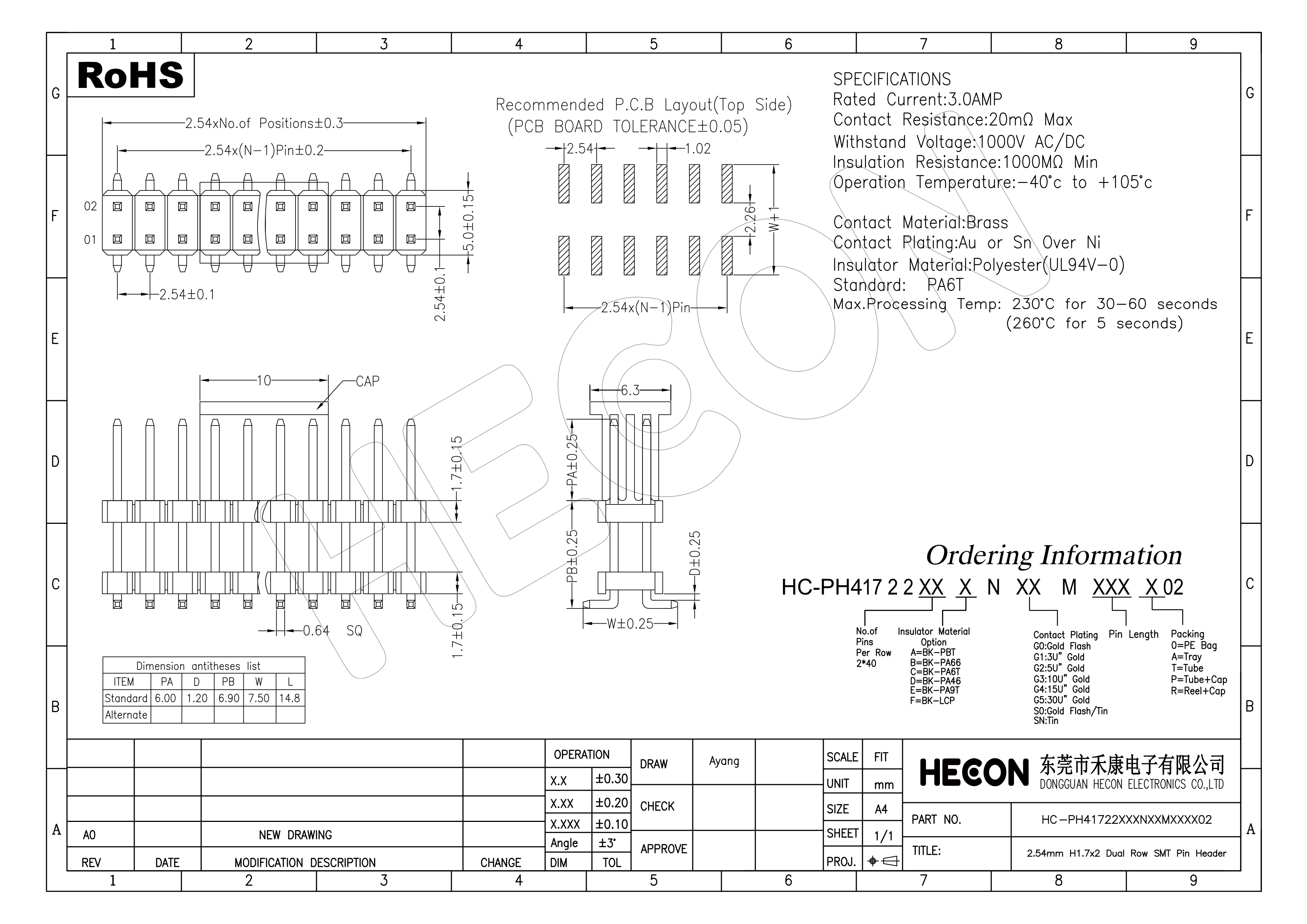

Drawings Details：
