2.54mm Pin header H1.5 Single Row Right Angle
2.54mm Pin header H1.5 Single Row Right Angle
HC-PH415-1136CRG0N24501
EXW
500 pieces
500000pieces / Month
China
10-20Day
We are a manufacturer to produce wire harness cable also custom cable assemblies and PCB Connectors such as pin header, Female header ，also pogo pin connectors .
When you are looking for new supplier who can provide wire cable also pcb connectors please kindly send your RFQ to us we can support best price also low MOQ
Quantity

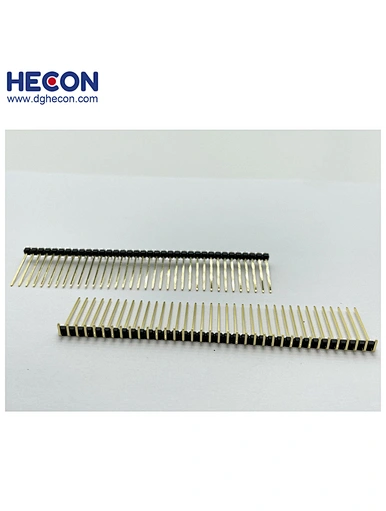

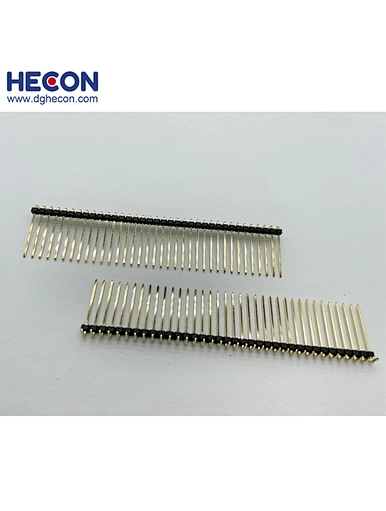

2.54mm Pin Header H1.5 Single Row Right Angle



Series No.: HC-PH415-1136CRG0N24501



Description: 2.54mm Pin header H1.5 Single Row Right Angle



Customized size: PA/PB/D Accepted



Position:  1x36P



Type:  Right Angle



Raw Material: PA6T



Contact Material: Brass



Specifications



Rated Current:1.0AMP



Contact Resistance: 20mΩ  Max



Withstand Voltage:500V AC/DC



Insulation Resistance:1000mΩ Min



Operation Temperature: -40°c to +105°c



Contact Plating：Au or Sn Over Ni



Insulator Material:Polyester(UL94V-0)



Max.Processing Temp: 230°c for 30-60 Seconds


                                    260°c for 10 Seconds



Package : PE Bag /Tube/Reel Packing



MOQ: 1K



Free samples:10pcs within 1 weeks.

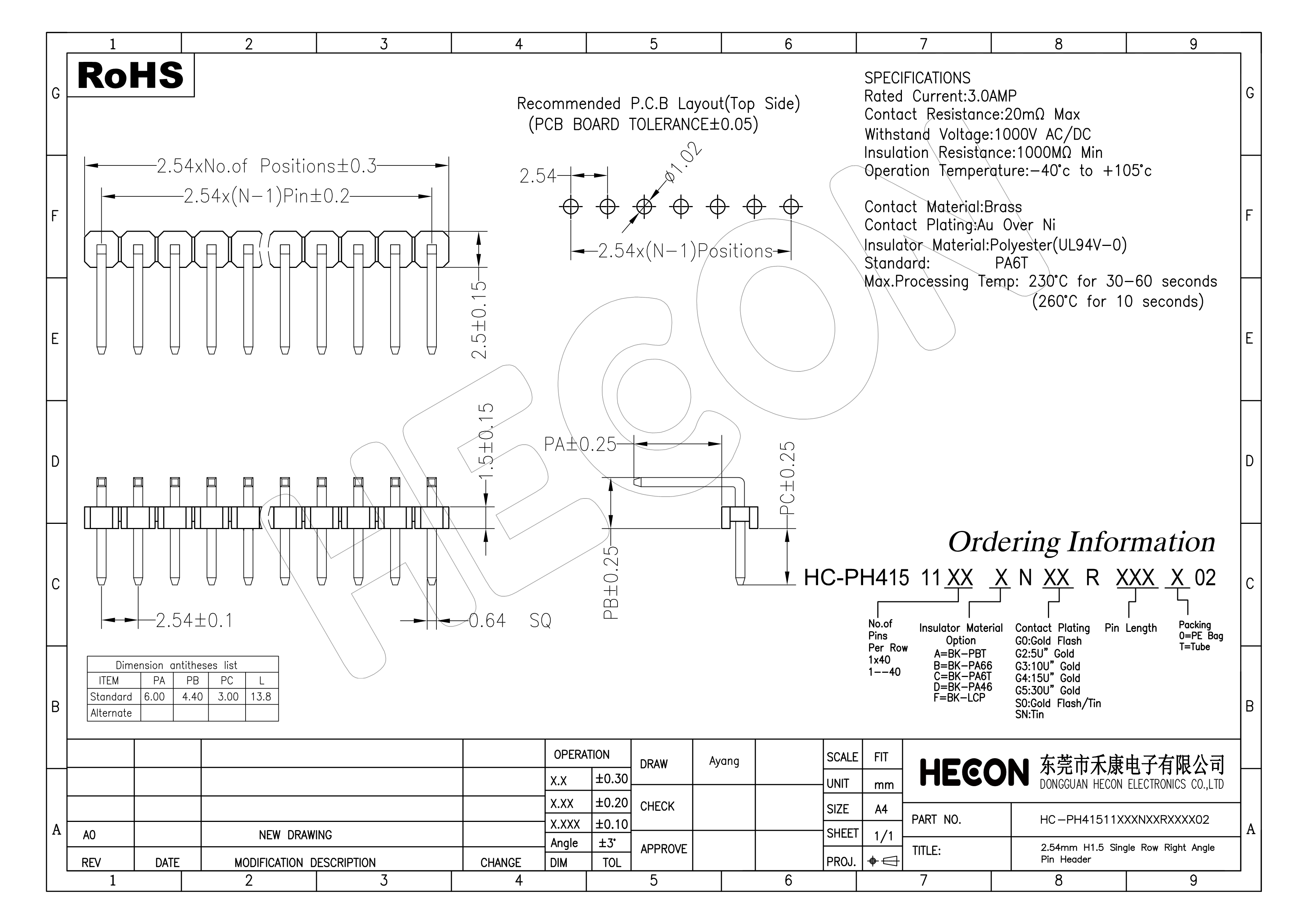

Drawings Details：


We DONGGUAN HECON ELECTRONICS CO.,LTD has full complete standard connectors and special customized products service such as  Pin header , Female header, Box Header, Ejector Header, IDC , Dip Plug, USB Type- C, RJ11, Pogo pin and Pogo pin connectors also wire harness cable assemblies series & ECG Cable, EKG Cable, USB Cable, IDC Flat Cable,FFC Cable so we thoroughly implement the products one-stop shopping, high quality, high value, time saving.
