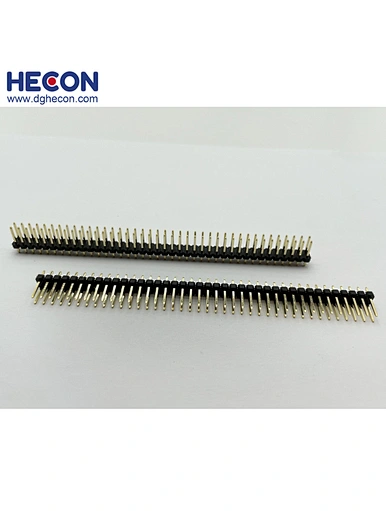

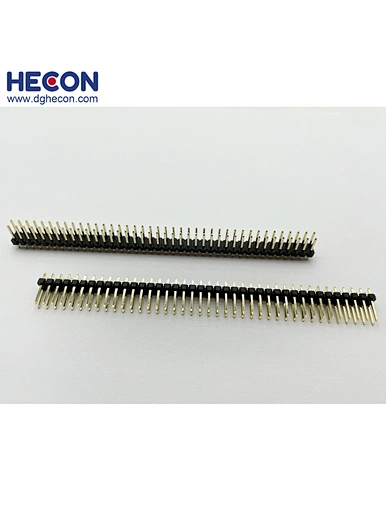

2.54mm Pin header H1.5 Dual Row Straight

Series No.: HC-PH415-1240CSG0N10801



Description: 2.54mm Pin header H1.5 Dual Row Straight



Customized size: PA/PB/D Accepted



Position:  2x40P


Type:  Straight



Raw Material: PA6T



Contact Material: Brass


Specifications



Rated Current:1.0AMP



Contact Resistance: 20mΩ  Max



Withstand Voltage:500V AC/DC



Insulation Resistance:1000mΩ Min



Operation Temperature: -40°c to +105°c



Contact Plating：Au or Sn Over Ni



Insulator Material:Polyester(UL94V-0)



Max.Processing Temp: 230°c for 30-60 Seconds


                                     260°c for 10 Seconds


Package : PE Bag /Tube/Reel Packing



MOQ: 1K



Free samples:10pcs within 1 weeks.

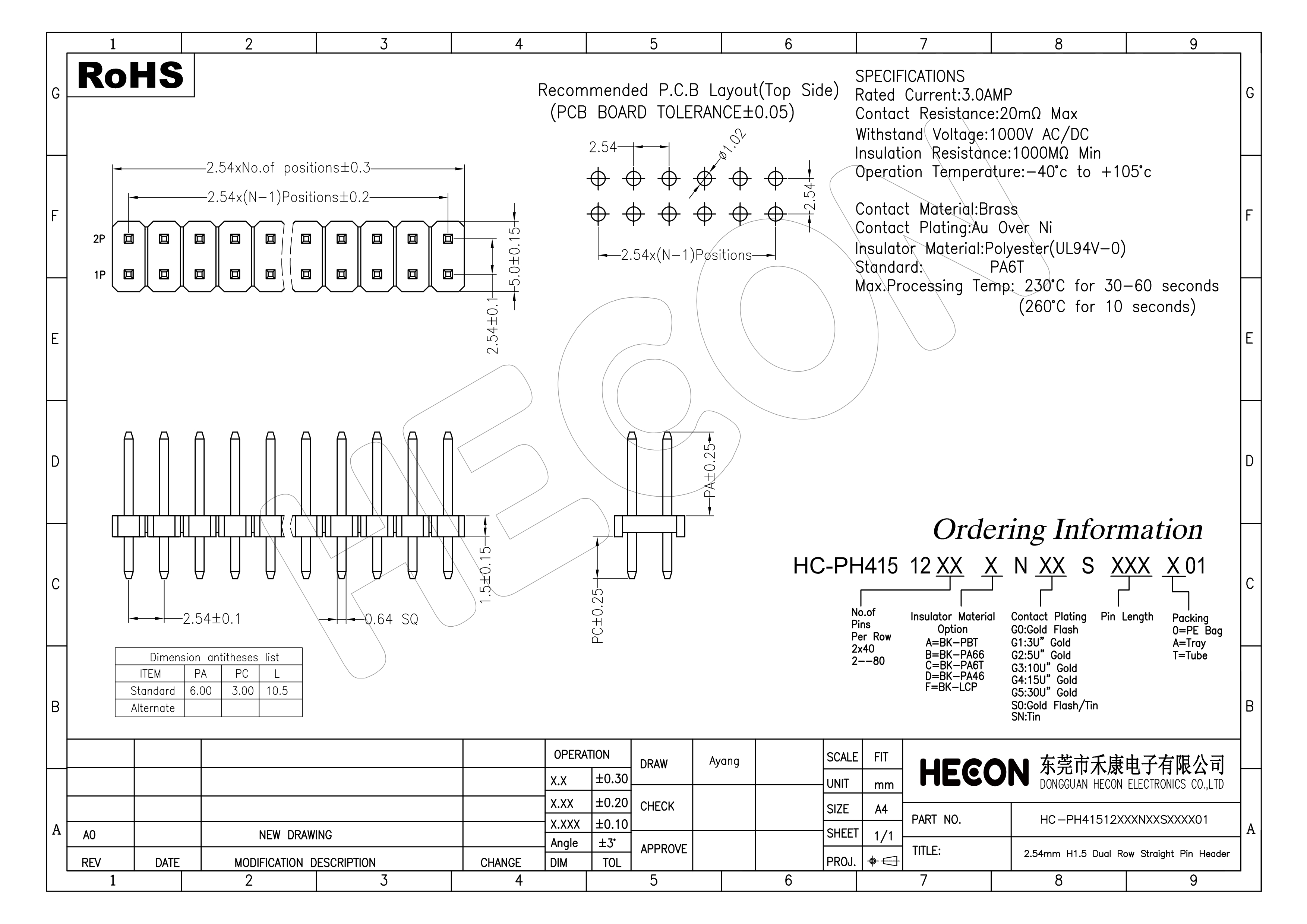

Drawings Details：
