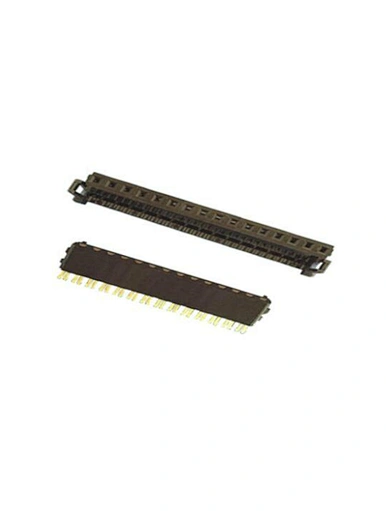

2.54mm IDC Connectors Y Type

Drawing Download

Series No.: HC-IDC15-XXYPG0AWT01

Description:  2.54mm IDC Connectors Y Type

Position: 08P To 24P

Type:  Y  Type

Raw Material: PBT-UL94V-0

Contact Material: Phosphor Bronze

Package : PE Bag/ Tube /Tray or Tape&Reel Packing

MOQ: 1K

Free samples:10pcs within 1 weeks.

Specifications

Rated Current:3.0AMP

Contact Resistance: 20mΩ  Max

Withstand Voltage:1000V AC/DC

Insulation Resistance:1000mΩ Min

Operation Temperature: -40°c to +105°c

Max.Processing Temp: 230°c for 30-60 Seconds

                                     260°c for 10 Seconds
