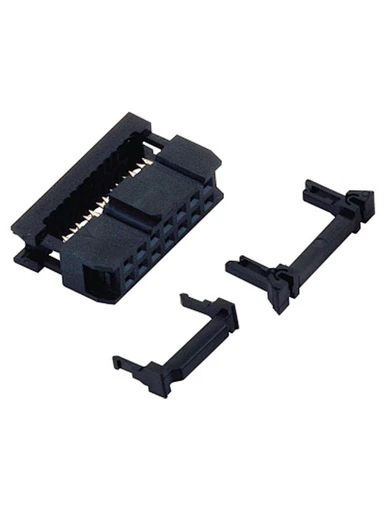

2.54mm IDC Connectors Single Type

2.54mm IDC Connectors Single Type

Model NO. HC-IDC13-XXSBG0AWT01

Delivery EXW,FOB

Minimum order quantity 500 pieces

Supply Ability 500000pieces / Month

Country of Origin China

Stock Time 15Day

HC-IDC13-XXSBG0AWT01

Quantity

2.54mm IDC Connectors Single Type

Drawing Download

Series No.: HC-IDC13-XXSBG0AWT01

Description: 2.54mm IDC Connectors Single Type

Position: 06P To 64P

Type: Single

Raw Material: PBT-UL94V-0

Contact Material: Brass

Package : PE Bag/ Tube /Tray or Tape&Reel Packing

MOQ: 1K

Free samples:10pcs within 1 weeks.

Specifications

Rated Current:3.0AMP

Contact Resistance: 20mΩ Max

Withstand Voltage:1000V AC/DC

Insulation Resistance:1000mΩ Min

Operation Temperature: -40°c to +105°c

Max.Processing Temp: 230°c for 30-60 Seconds

260°c for 10 Seconds
