Series No.: HC-ICF410-30-XXXSG0A074T01

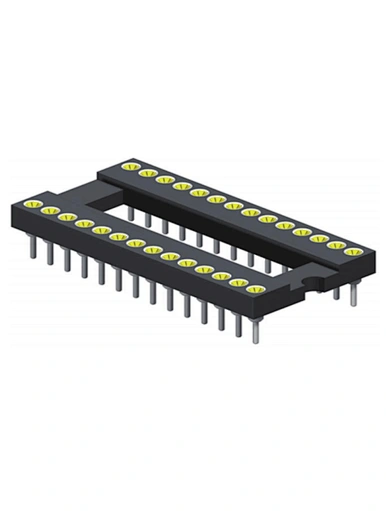

Description: 2.54mm IC Socket Straight Type L=7.43 Tube Packing
Position: 06P TO 64P
Type: Straight
Package : Tube Packing
MOQ: 1K
Free samples:10pcs within 1 weeks.

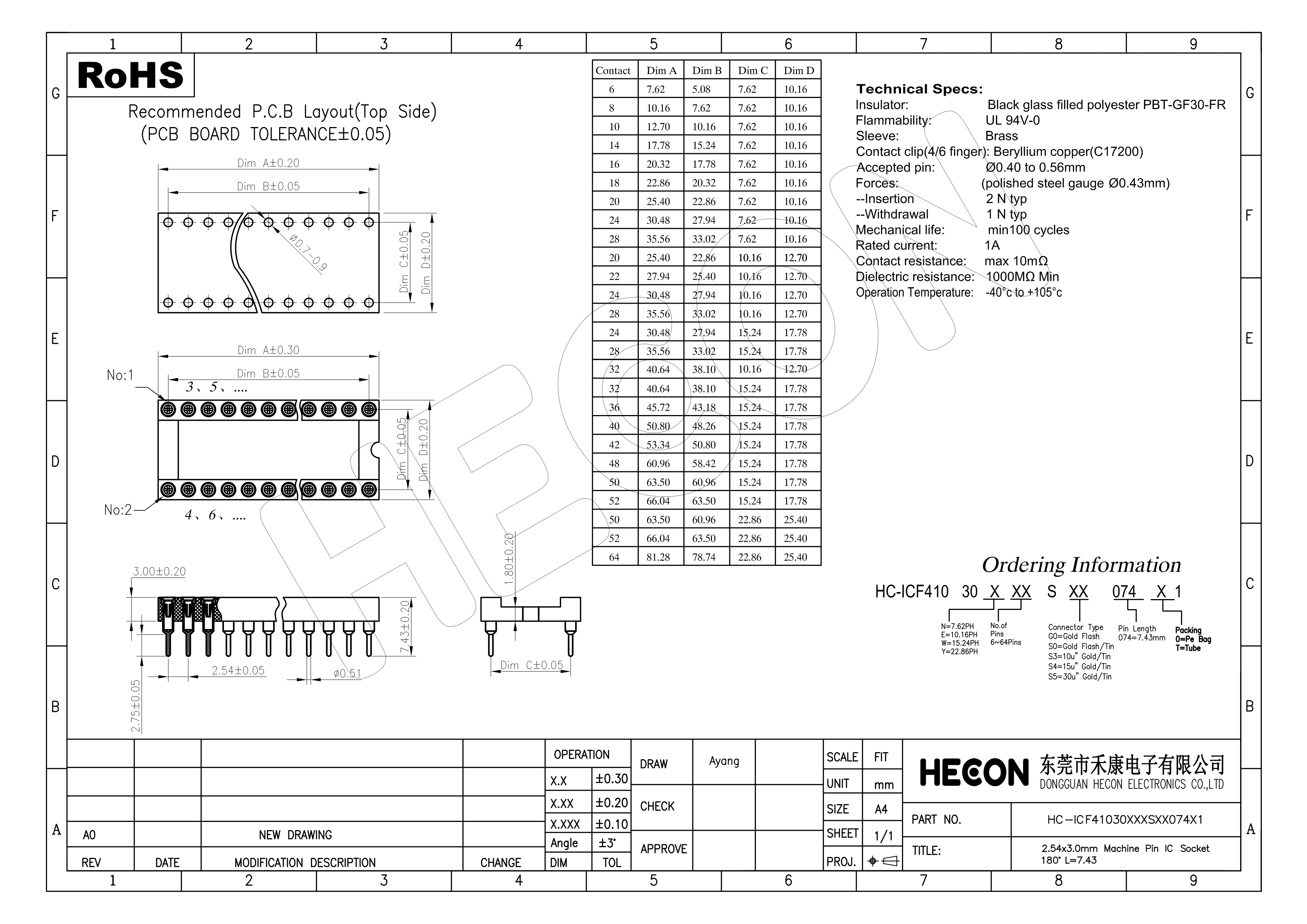

Specifications
Contact Material ：Brass (H59-3)
Contact Plating ： Gold Flash
Insulator Material ： PPS/BT (UL94V-0)
Rated Current ： 2.0 AMPS
Contact Resistance ：20mΩ Max
Insulation Resistance ：1000mΩ Min
Operating Voltage ： 60 AC/DC
Operation Temperature：﹣40℃ to +105℃
Soldering Temperature：260℃, 10s max
