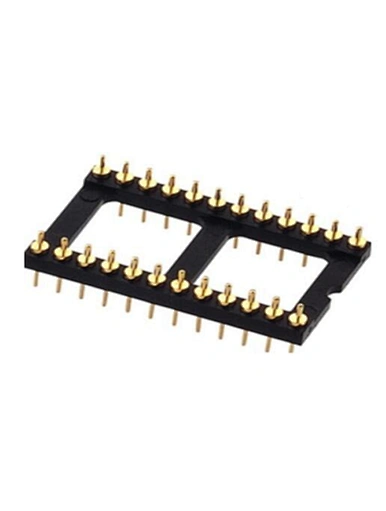

2.54mm IC Socket Straight Type L=11.96 Tube Packing
2.54mm IC Socket Straight Type L=11.96 Tube Packing
HC-ICF460-30-XXXSG0A119T01
EXW,FOB
500 pieces
500000pieces / Month
China
15Day
We HECON has full complete standard connectors and special customized products service such as Pogo pin and Pogo pin connectors also wire harness cable assemblies series so we thoroughly implement the products one-stop shopping, high quality, high value, time saving.
Quantity

Series No.: HC-ICF460-30-XXXSG0A119T01

Description: 2.54mm IC Socket Straight Type L=11.96 Tube Packing

Position:  06P TO 64P

Type: Straight

Package : Tube Packing

MOQ: 1K

Free samples:10pcs within 1 weeks.

 Specifications

Contact Material   ：Brass (H59-3)

Contact Plating   ： Gold Flash

Insulator Material  ： PPS/BT (UL94V-0)

Rated   Current  ： 3.0 AMPS

Contact Resistance ：20mΩ   Max

Insulation Resistance ：1000mΩ   Min

Operating Voltage ： 60  AC/DC

Operation Temperature：﹣40℃ to +105℃

Soldering Temperature：260℃, 10s max

Customized solution manufacturer of wire harness cable &PCB Connectors

Meet One -Stop -Sourcing and save your time and Cost

Engineers with over 20 year’s experience | 10 days delivery time | OEM/ODM

Operating under ISO 9001:2000 Standards
