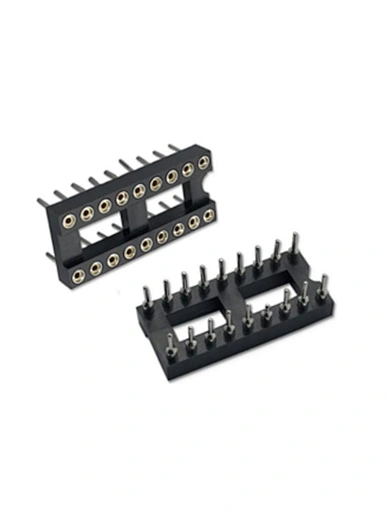

2.54mm IC Socket H3.0 Straight Female Type L=4.2 Tube Packing
2.54mm IC Socket H3.0 Straight Female Type L=4.2 Tube Packing
HC-ICF410-30-XXXSSNA042T01
EXW,FOB
500 pieces
500000pieces / Month
China
15Day
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.
Quantity

Series No.:HC-ICF410-30-XXXSSNA042T01

Description: 2.54mm IC Socket H3.0 Straight Female Type L=4.2 Tube Packing

Position:  06P TO 64P

Type: Straight

Package : Tube Packing

MOQ: 1K

Free samples:10pcs within 1 weeks.

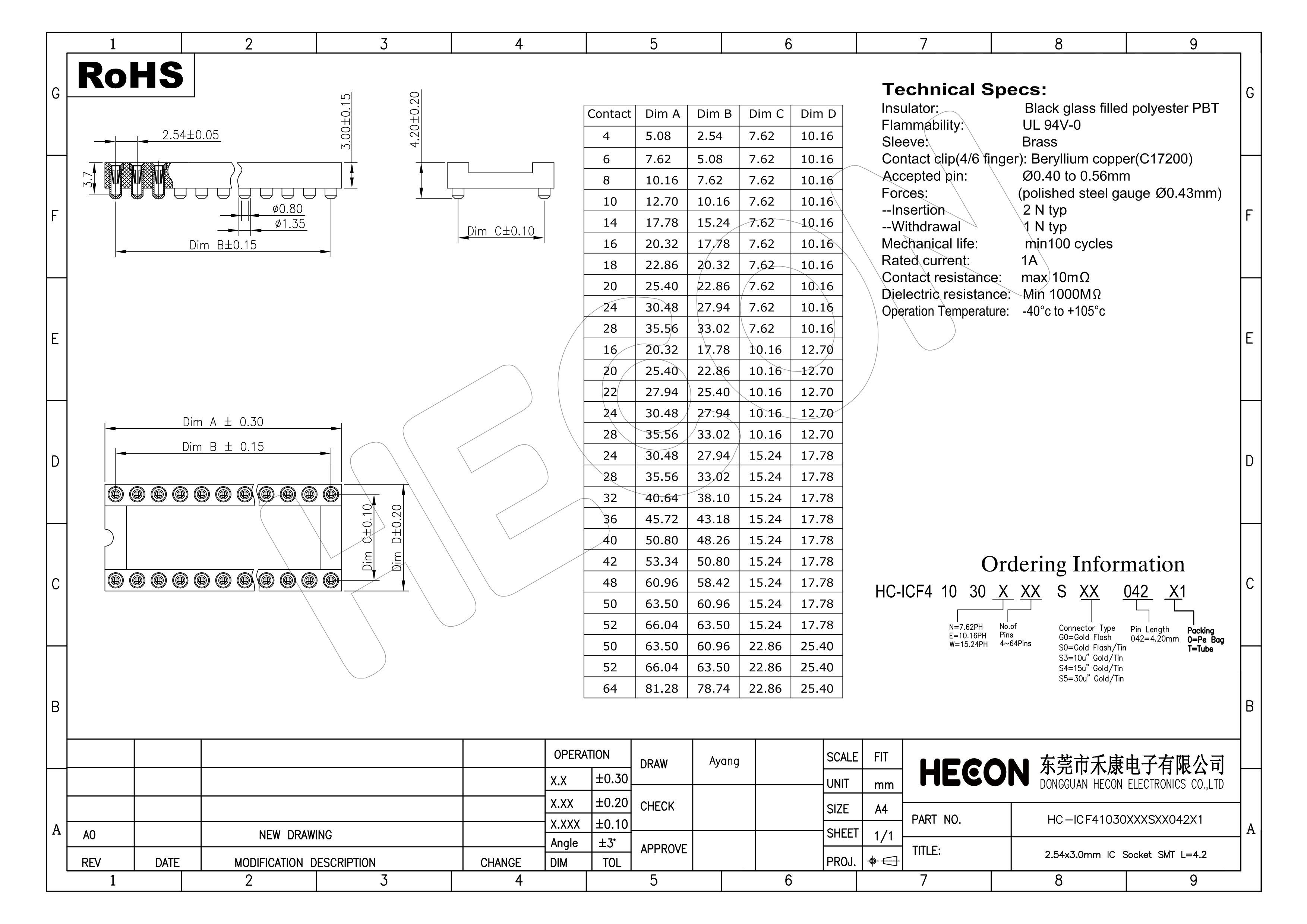

Specifications

Contact Material   ：Brass (H59-S)

Contact Plating   ： Gold Flash

Insulator Material  ： PPS/BT (UL94V-0)

Rated   Current  ： 2.0 AMPS

Contact Resistance ：20mΩ   Max

Insulation Resistance ：1000mΩ   Min

Operating Voltage ： 60  AC/DC

Operation Temperature：﹣40℃ to +105℃

Soldering Temperature：260℃, 10s max
